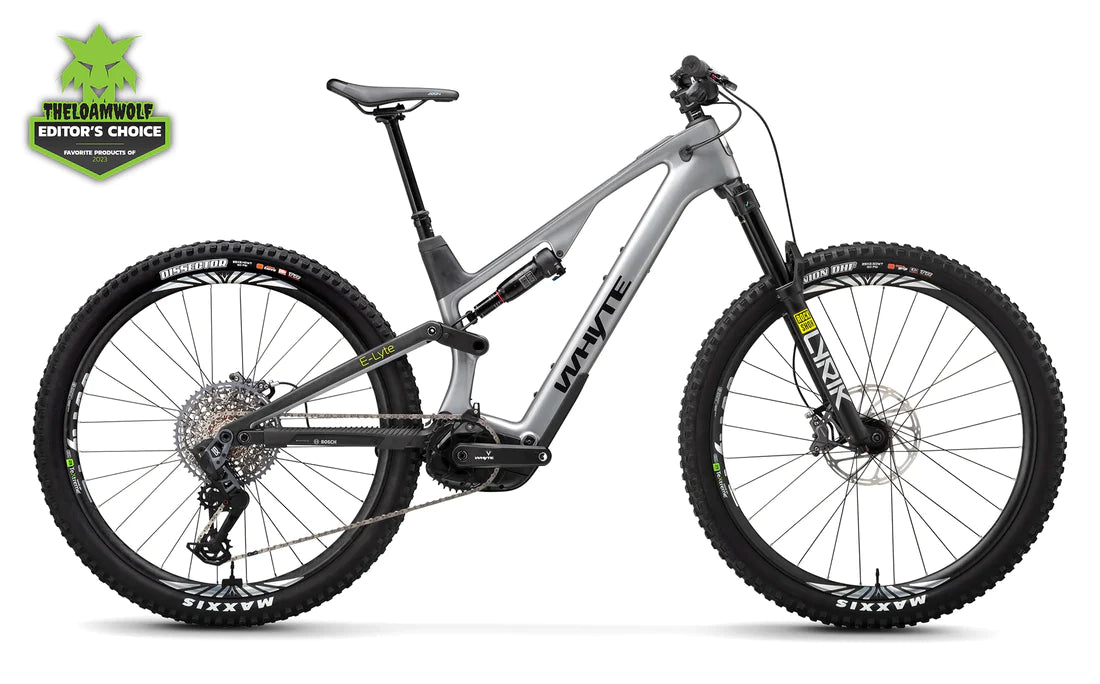

ELyte 150 RSX Large
trail/enduro electric mountain bike - Outlet
This ex-demo 'Whyte Renewed' Certified Refurbished ELyte 150 RSX (size large) has been ridden and is in a 'used' condition with some signs of being ridden but with plenty of life left in it and its parts. It has 292km 'on the clock'. The frame and fork's paintwork are in excellent condition. You can see more in the product gallery at the top of the page, including detail photos of the actual bike's condition.
To ensure this bike meets our high standards for quality, it has been fully checked over by our professional Cytech-qualified mechanics and is in perfect working order. As with all our Whyte Certified Refurbished bikes, it comes complete with a two-year warranty against materials and manufacturing defects on its frame, a lifetime warranty on all main pivot bearings, and a one-year eBike system warranty (for 'Whyte Renewed' Certified Refurbished electric bikes).
Specifications
| COLOUR | Gloss silver with matt uni-directional (UD) carbon | CASSETTE | SRAM XS 1275, T-Type, 10-52T, 12 speed |
|---|---|---|---|
| FRAME | Uni-directional carbon mainframe and seatstays, tapered head tube, ISCG 2 guide mounts, internal cable routing, Shape.it Link V2 and 12mm x 148mm Boost dropouts | CHAIN | SRAM GX T-Type, 12 speed |
| FORK | RockShox Lyrik Select+ 29in, 150mm travel, 44mm offset, DebonAir+, Charger 3 RC2 damper, Fast Black coating, tapered steerer, 110mm x 15mm Boost | CRANKSET | Whyte 155mm ISIS arms, GX Gen4 direct mount 36T chainring, T-Type |
| REAR SHOCK | RockShox Deluxe Select + RT, DebonAir, Fast Black coating, adjustable rebound and two position compression adjustment | BOTTOM BRACKET | N/A |
| HEADSET | FSA No. 69/56/SRS, 1-1/8in upper and 1.5in lower with sealed angular contact bearing (ACB) catridge bearings, with side entry internal routing | SEATPOST | Whyte drop.it II Adjust, 30.9mm (sizes S/M 140-170mm travel; sizes L/XL 170-200mm travel), MMX Paddle remote lever |
| REAR HUB | Alloy, light assist e-bike specific, double sealed cartridge bearings, 12mm x 148mm Boost tspacing, 32 hole | SADDLE | Fizik Terra Aidon, 145mm wide, Wingflex, S-Alloy Mobius rail |
| FRONT HUB | Alloy, double sealed cartridge bearings, 15mm x 110mm Boost spacing, 28 hole | HANDLEBAR | Whyte Custom 6061 alloy, 20mm rise, 35mm bar bore, 800mm wide |
| SPOKES | DT Swiss New Champion 2.0mm, black stainless, brass nipples | STEM | Whyte Trail full CNC, 32mm extension, 35mm bar bore |
| RIMS | Whyte TeXtreme Innegra infused, carbon Trail rims, 28 hole front, 32 hole rear (CushCore Trail rim protection fitted to rear wheel) | GRIPS | Whyte Enduro lock-on |
| TYRE | Maxxis Minion DHF, EXO TR MaxxGripp 29in x 2.5in front; Maxxis Dissector, EXO+ TR MaxxTerra 29in x 2.4in, rear | BRAKES FRONT | SRAM Code Bronze Stealth, four piston hydraulic, 200mm diameter disc rotor |
| SHIFT LEVERS | SRAM AXS Pod, right, MMX, 12 speed | BRAKES REAR | SRAM Code Bronze Stealth, four piston hydraulic, 200mm diameter disc rotor |
| FRONT MECH | N/A | BRAKE LEVERS | SRAM Code Bronze Stealth |
| REAR MECH | SRAM GX T-Type AXS, 12 speed | PEDALS | Fibre reinforced composite platform |
| WEIGHT | 18.9kg (size M) |
Although we've taken every effort to ensure the accuracy of the information listed here sometimes things change so we reserve the right to change or update bike specifications, features, prices and colours as and when required.
Geometry
| FRAME SIZE | Small | Medium | Large | Extra Large |
| A - REACH (mm) | 431 | 456 | 481 | 506 |
| B - STACK (mm) | 628.7 | 640.5 | 652.3 | 663.2 |
| C - HEAD ANGLE (° degrees) | 64.6 (64) | 64.6 (64) | 64.6 (64) | 64.6 (64) |
| D - SEAT ANGLE (° degrees) | 77.5 | 77.3 | 77.1 | 76.9 |
| E - BB HEIGHT (mm) | 341.9 (333.9) | 341.9 (333.9) | 341.9 (333.9) | 341.9 (333.9) |
| F - WHEELBASE (mm) | 1211.6 | 1242.1 | 1272.6 | 1302.7 |
| G - REAR CENTRE (mm) | 450.4 | 450.4 | 450.4 | 450.4 |
| H - STANDOVER HEIGHT (mm) | 741 | 741 | 741 | 741 |
| I - SEAT TUBE LENGTH (mm) | 395 | 420 | 445 | 470 |
| J - HEAD TUBE LENGTH (mm) | 114 | 127 | 140 | 152 |
