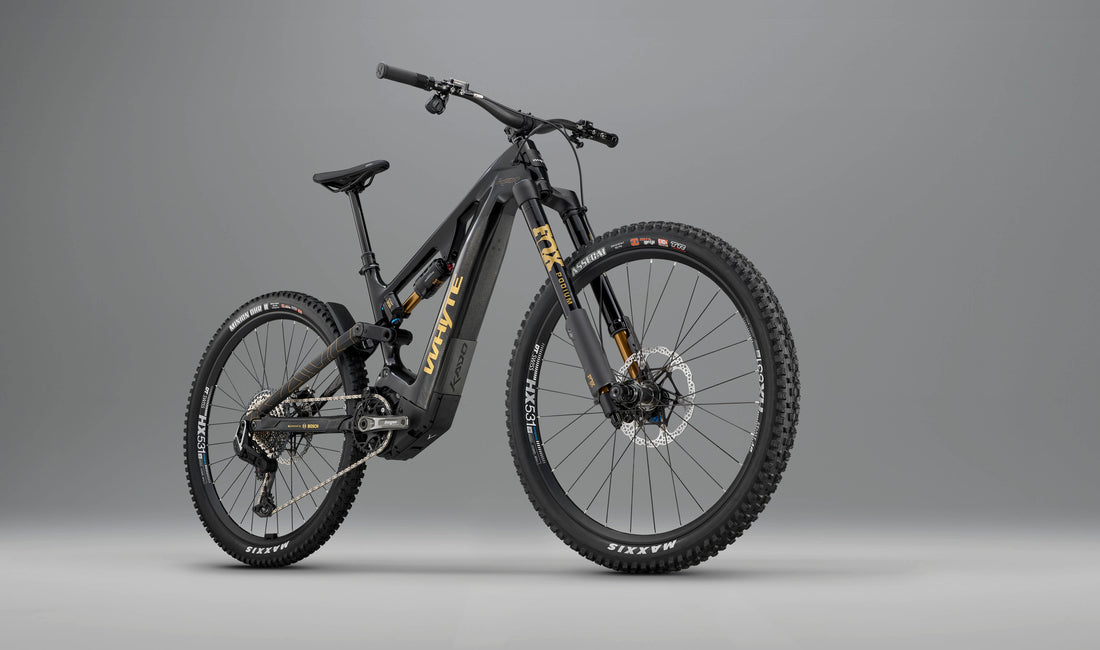

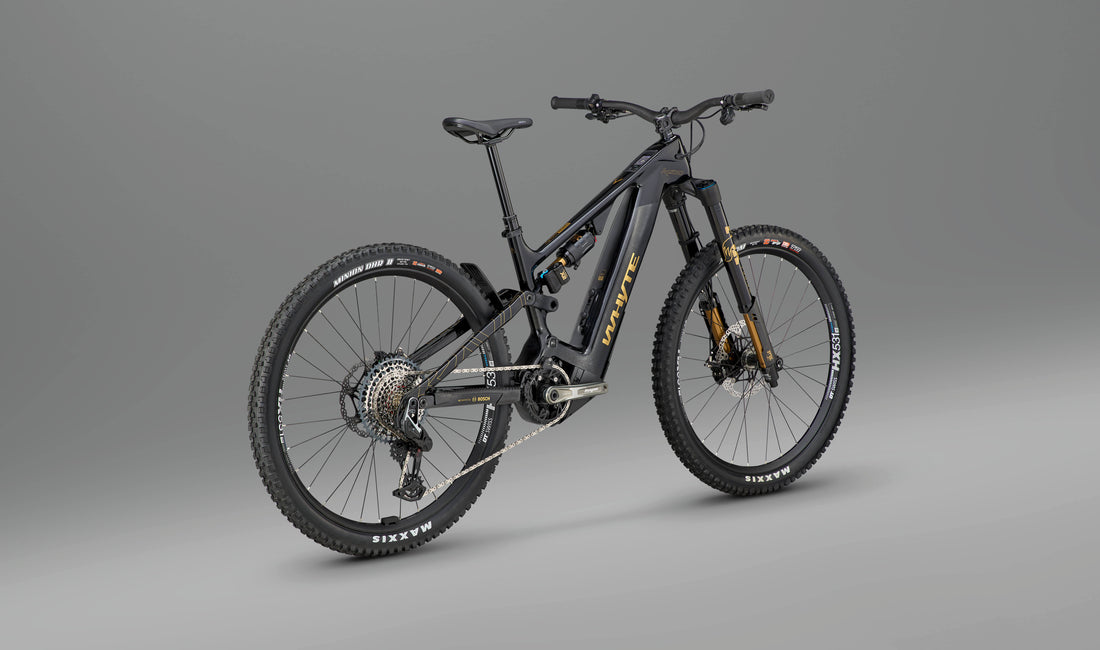

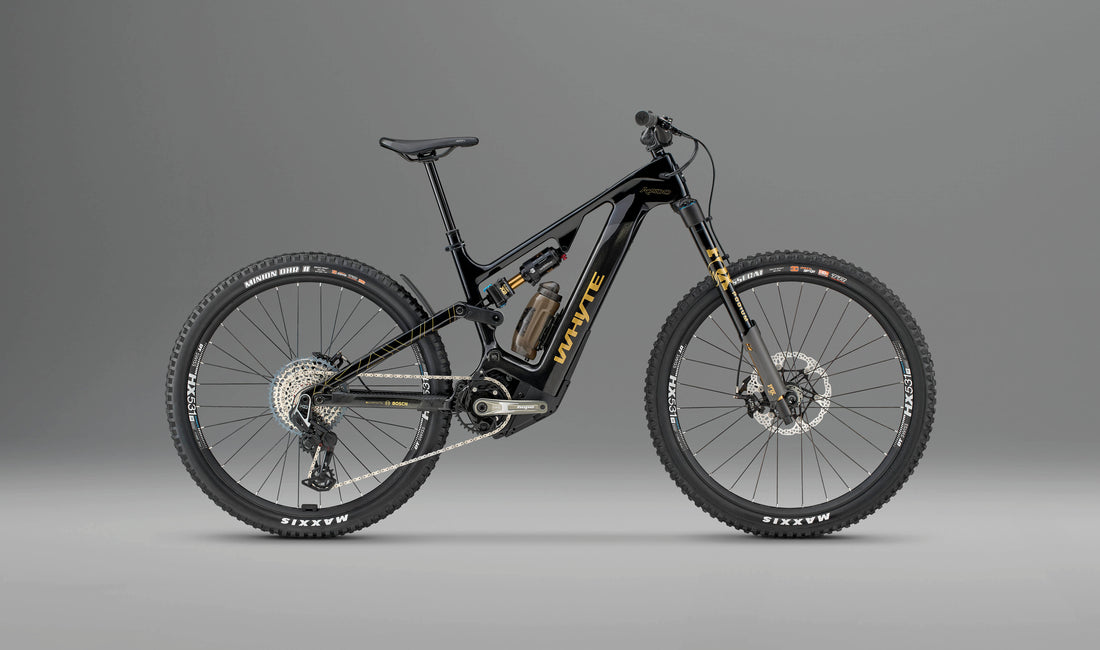

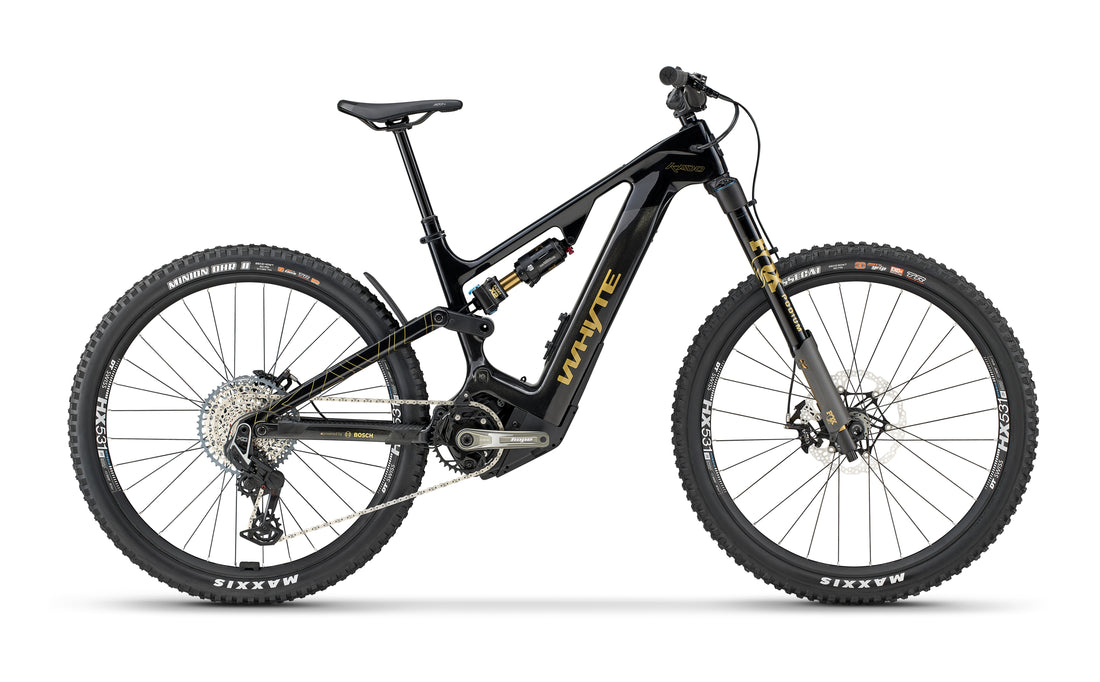

Kado Works
Trail/enduro electric mountain bike
SKUWEKAW1SV1
Our fastest e-enduro race bike ever
Designed, developed and proven by the UK’s first ever E-Enduro National Champion and 2024 E-Enduro Series Champion, Sam Shucksmith – both titles won aboard the prototype – the championship-winning Kado Works blends a full carbon-fibre frameset with Bosch’s latest CX motor and battery technologies. All combined with meticulously custom-tuned suspension performance and the highest performing parts list possible so you can unleash the speed – everywhere.
Highlights
– 170mm front + 151mm rear of suspension travel.
– Fox Podium Factory 29in fork + Fox Float X2 Factory EVOL custom-tuned shock.
– Uni-directional full carbon fibre frame with geometry adjustment.
– Bosch's fifth generation Performance Line CX full-torque full-power motor.
– Ready for the latest software upgrade to unlock E-MTB+ mode + 100Nm torque + 750W peak power.
– 800Wh removeable internal battery.
– 29in wheels front and rear + MX ready.
High performance, unleashed
We’ve poured everything into Kado Works to give you the highest performance possible: an optimised low centre of gravity delivers exceptional cornering agility, high-speed stability, and balanced handling on any terrain – no matter how fast or rowdy things get; custom-tuned suspension for the very best grip, feedback and control; confidence-inspiring geometry, and much more. All combined so you can beat the clock – and your personal best.
Charge time: 50% in 2.3hrs from empty, and to 100% in 6.9hrs with 4A Charger.
Get more from your motor
Low, centered, unstoppable

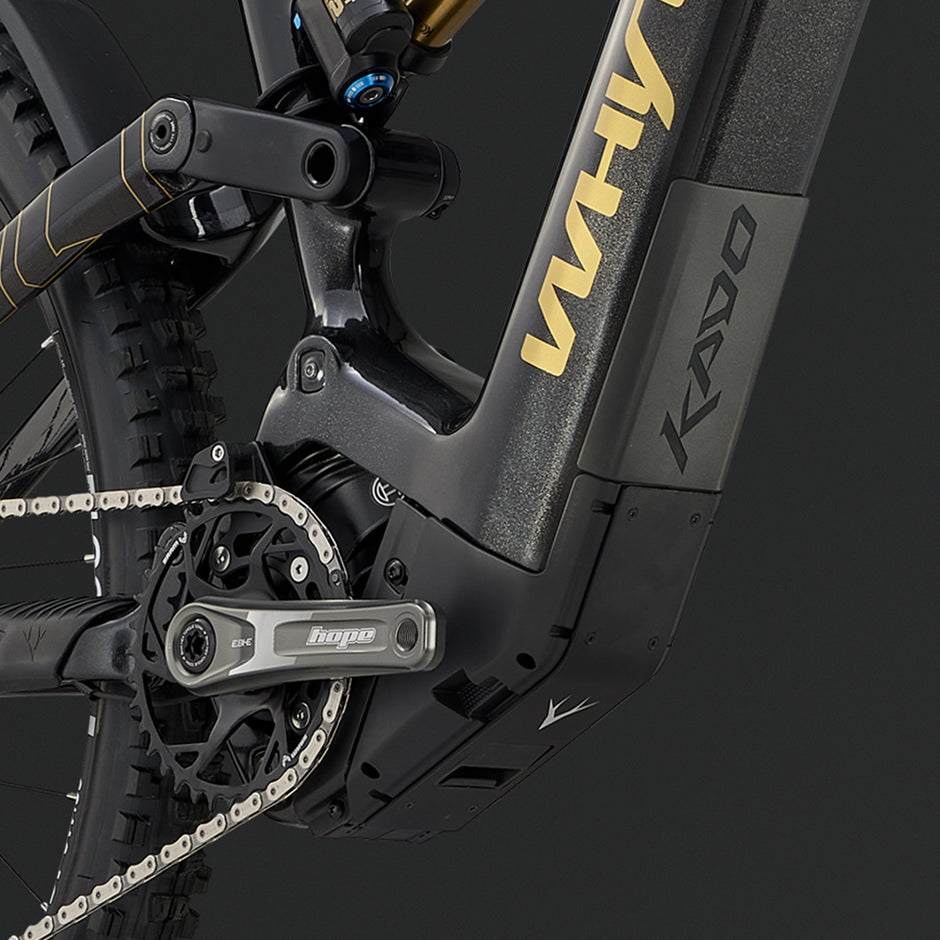

As part of our Total Geometry approach, Kado Works has been designed around the lowest, most centred centre of gravity (the point at which an object’s mass is evenly distributed and balanced) to give you the finest handling possible. By positioning the major masses of an eMTB (the motor and batteries) as low and centrally between the tyre contact patches as possible, Kado Works delivers you balanced control, effortless agility, sure-footed stability and absolute confidence. All so you can ride faster and with more poise to master every track.
Switchable batteries

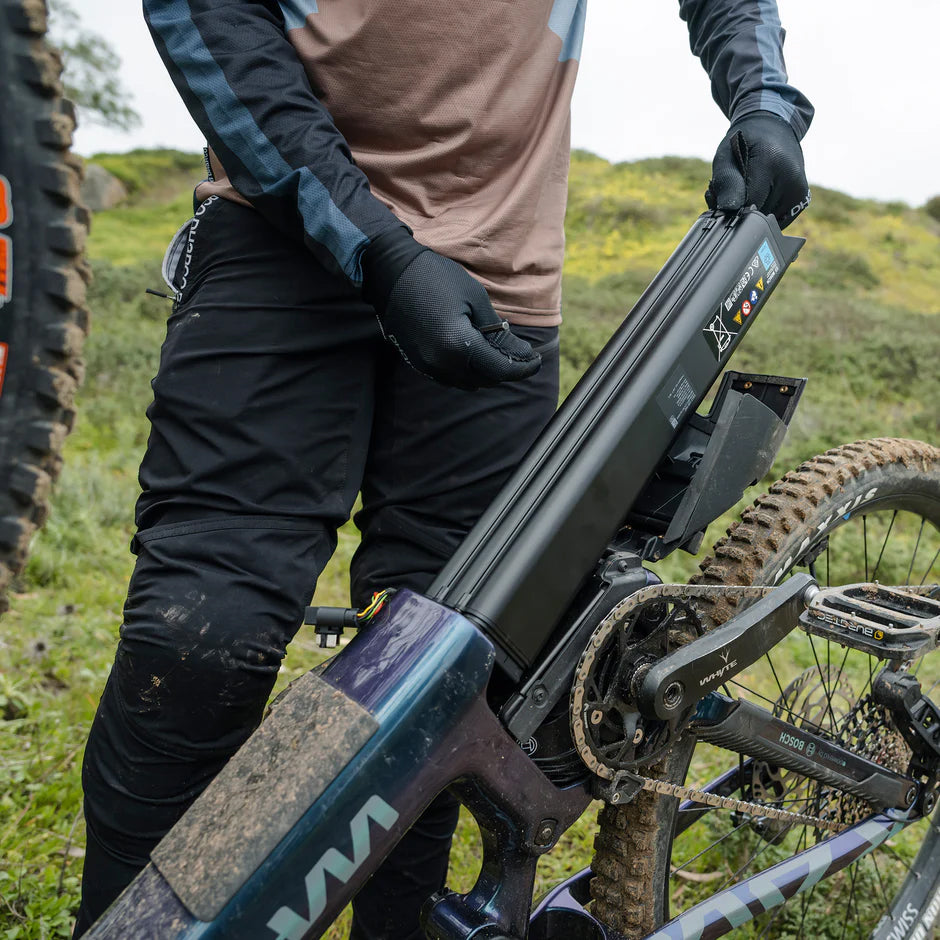

With an 800Wh internal battery as standard and compatibility with Bosch’s aftermarket 250Wh ‘PowerMore’ range extender (available separately; fits size M–XL frames), Kado Works is ready to give you up to a 1050Wh of combined battery capacity. Kado Works is also compatible with Bosch’s aftermarket lighter, smaller 600Wh – PT600 – internal battery (just add our battery end caps), so you can pick and choose smaller or larger batteries for different races. And all without needing to adjust any of the battery compartment internals – just slide the old battery out, add the endcaps to the new battery, and slide it in.
Smartly connected

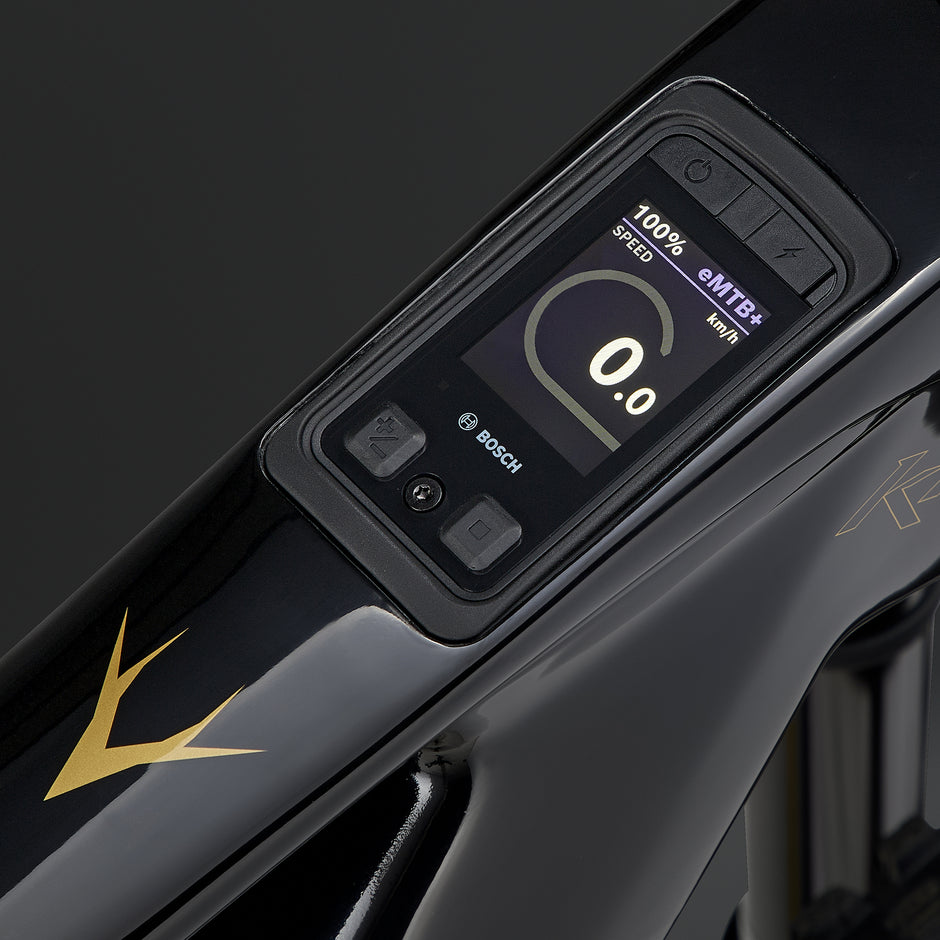

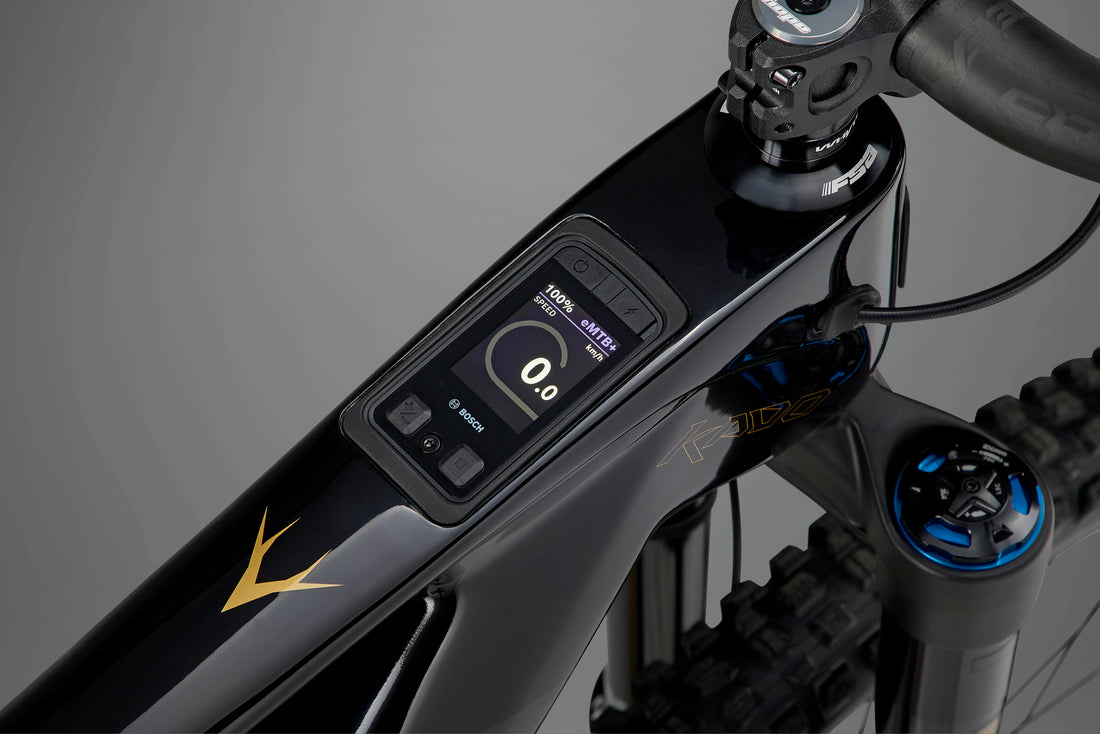

With the Bosch Smart System – which links up the Kado Works’s top-tube Bosch Kiox 400C LCD display, battery and motor via the eBike Flow app – you have even more information at your fingertips to manage, tailor and personalise your bike just how you want to get even more from your riding: tune the motor support levels; upgrade to the latest motor software updates, and more. We’ve also wired-in SRAM’s AXS wireless electronic rear mech directly into the bike’s main battery, so you’ll never need to remember to charge your gears again.
Specifications

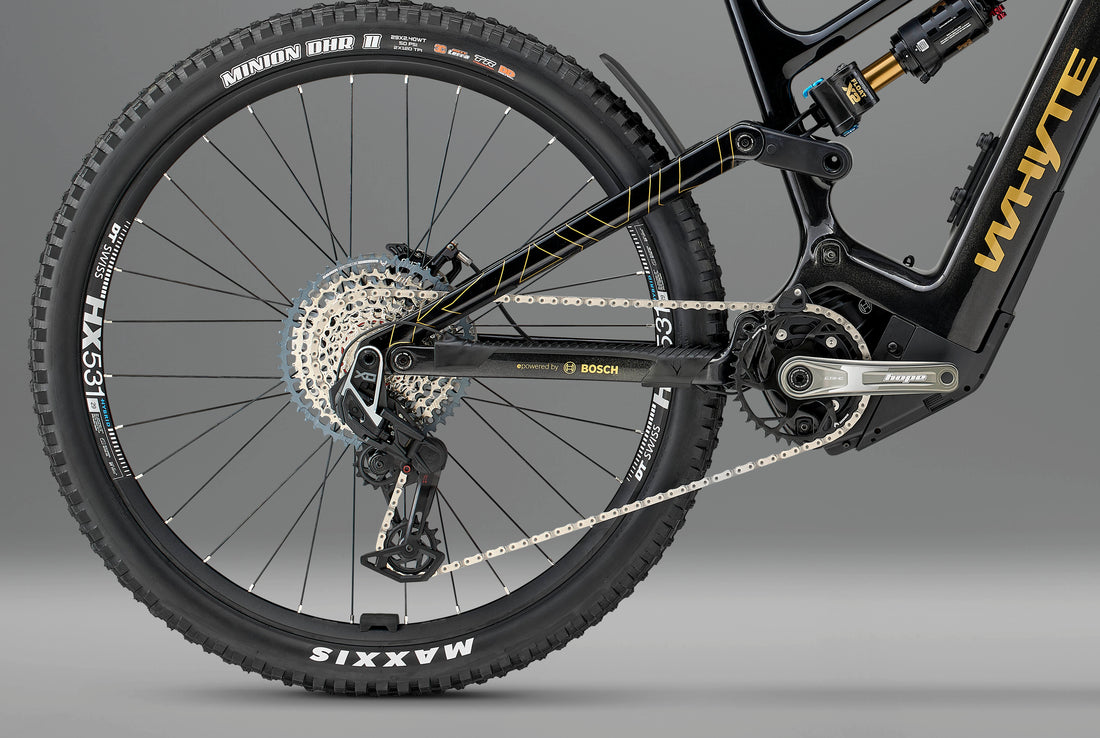

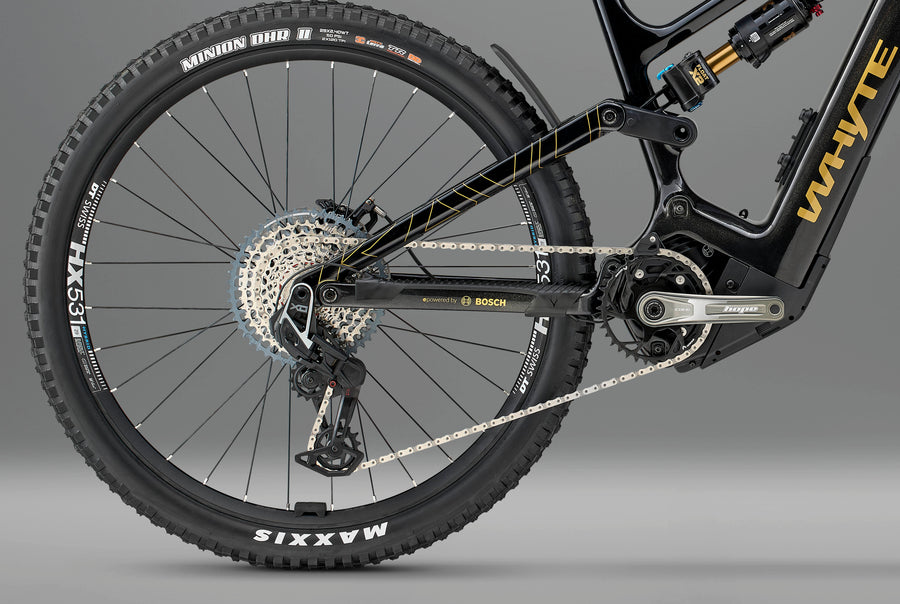

| COLOUR | Gun metal black | CASSETTE | SRAM XS 1275, T-Type, 10-52T, 12 speed |
| FRAME | Uni-directional carbon mainframe and rear triangle, tapered head tube, internal cable routing, Shape.it Link V2 and 12mm x 148mm Boost dropouts | CHAIN | SRAM GX T-Type, 12 speed |

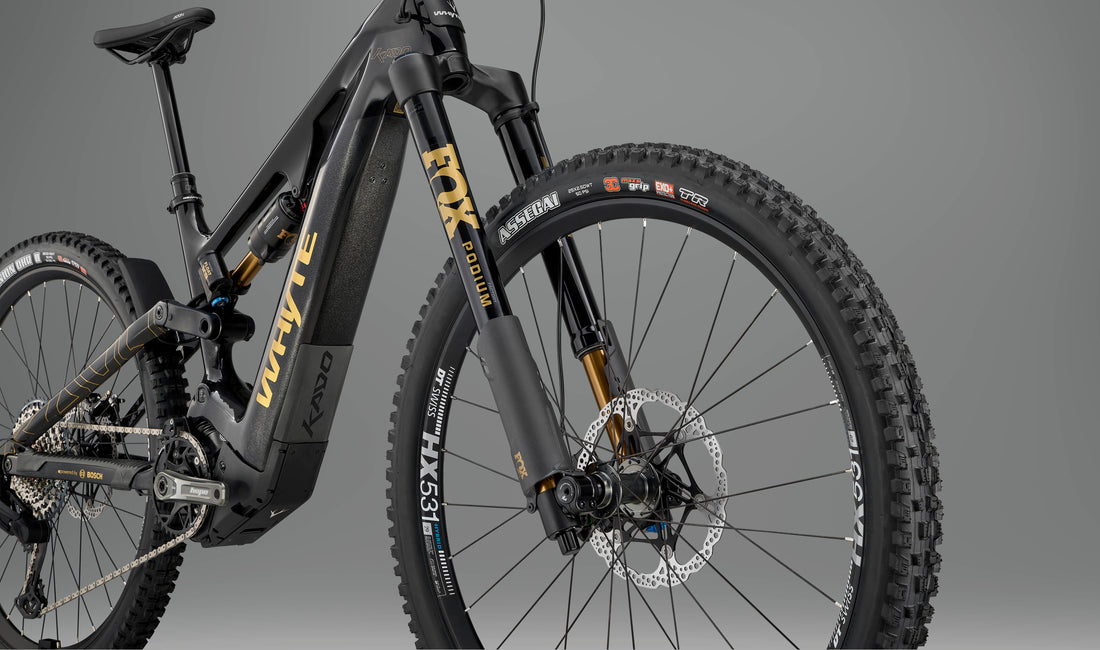

| FORK | 2026 Fox Podium Factory 29in, 170mm travel, 44mm offset, Grip X2 damper, tapered steerer, 110m x 20mm axle | CRANKSET | Hope E-Bike cranks, 155mm length, Bosch mounting, 36T chainring T-Type |

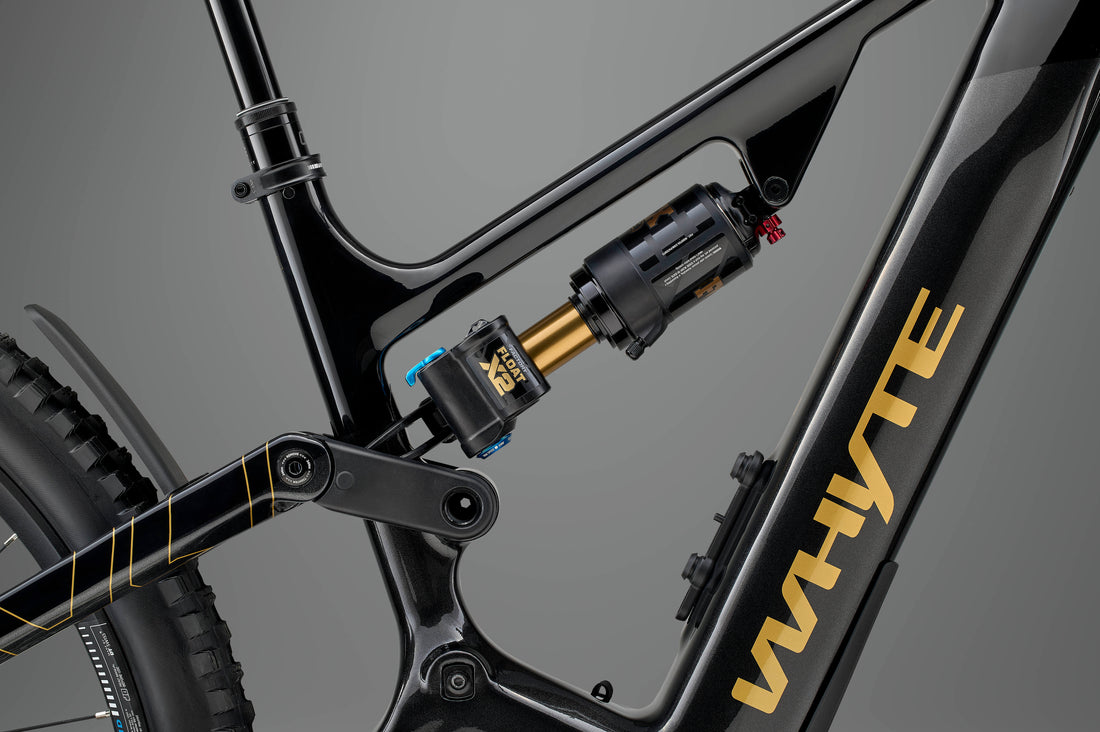

| REAR SHOCK | Fox Float X2 Factory Series, EVOL, lock out, 230mm x 57.5mm, custom tuned for Whyte | BOTTOM BRACKET | N/A |

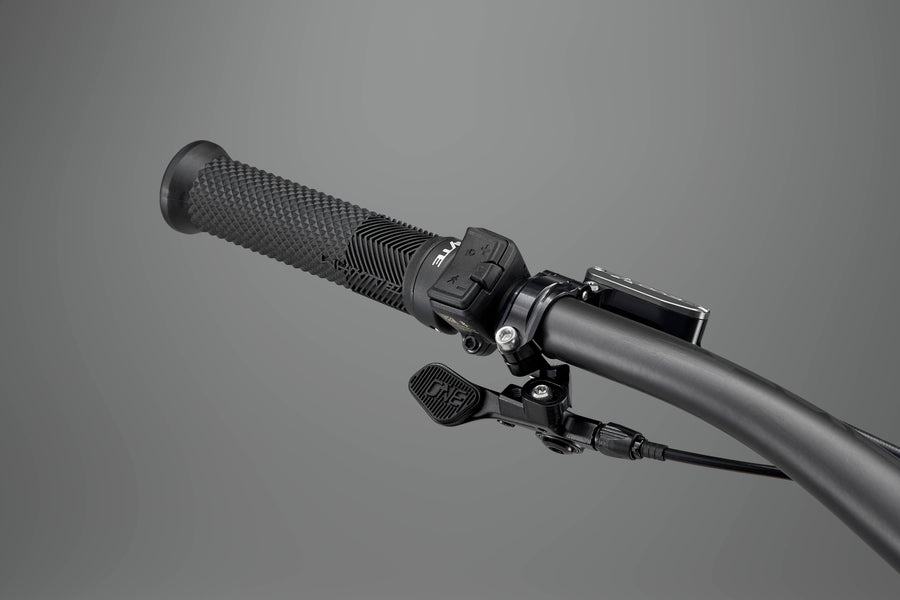

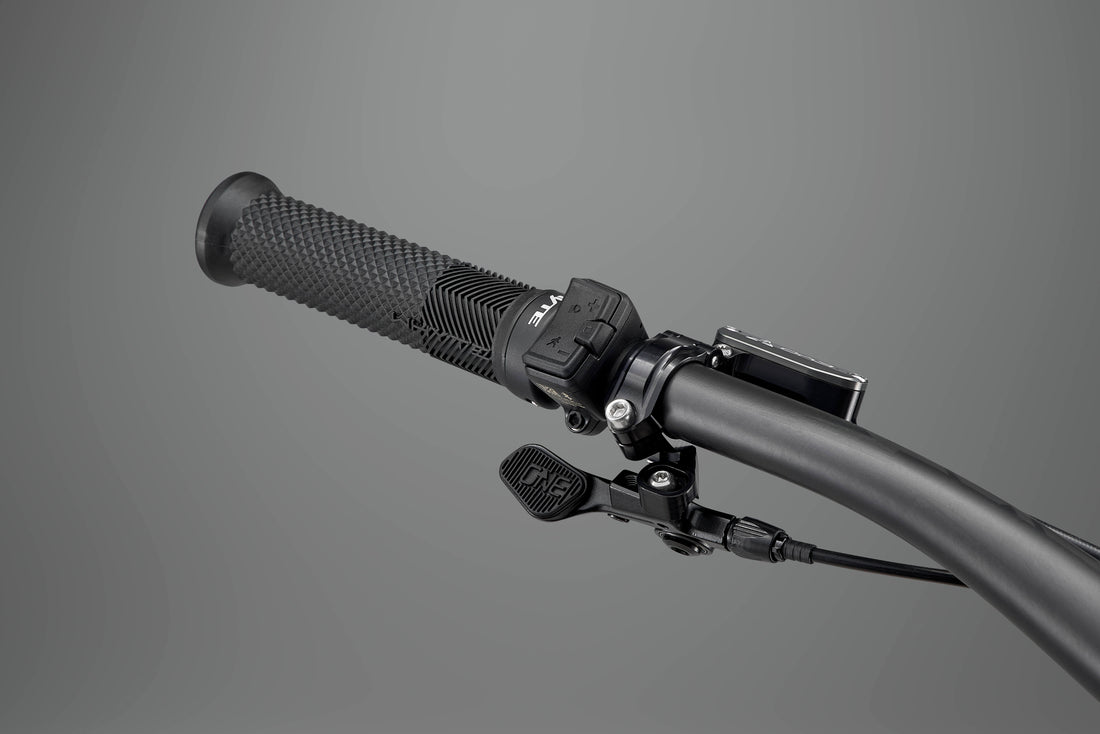

| HEADSET | FSA No. 55R, 1-1/8in upper and 1.5in lower | SEATPOST | One Up Components V3 Dropper Post, MMX Paddle remote lever, size-specific drop (size S: 150mm travel; size M: 170mm travel; size L and XL: 210mm travel) |
| REAR HUB | Hope Pro 5, six bolt, 12mm x 148mm Boost spacing, XD driver, 32 hole | SADDLE | Fi’zi:k Terra Aidon, 145mm wide, Wingflex, S-Alloy Mobius rail |
| FRONT HUB | Hope Pro 5, six bolt, 20mm x 110mm Boost spacing, 28 hole | HANDLEBAR | Race Face ERA Carbon, 20mm rise (sizes S/M) / 40mm rise (sizes L/XL), 35mm bar bore, 800mm wide |
| SPOKES | DT Swiss Elemental | STEM | Whyte Trail full CNC, 32mm extension, 35mm bar bore |
| RIMS | DT HX531, 30mm internal | GRIPS | Whyte Enduro lock-on |
| TYRES | Maxxis Assigai WT, TR, 29in x 2.5in 120TPI, EXO+ sidewall protection, 3C MaxxGrip, dual compound, folding bead, front; Maxxis Minion DHR 2 WT, TR, 29in x 2.4in 120TPI, Double Down casing, 3C MaxxTerra, dual compound, rear | BRAKES (FRONT) | Hope EVO GR4, four piston hydraulic, 220mm diameter floating disc rotor |

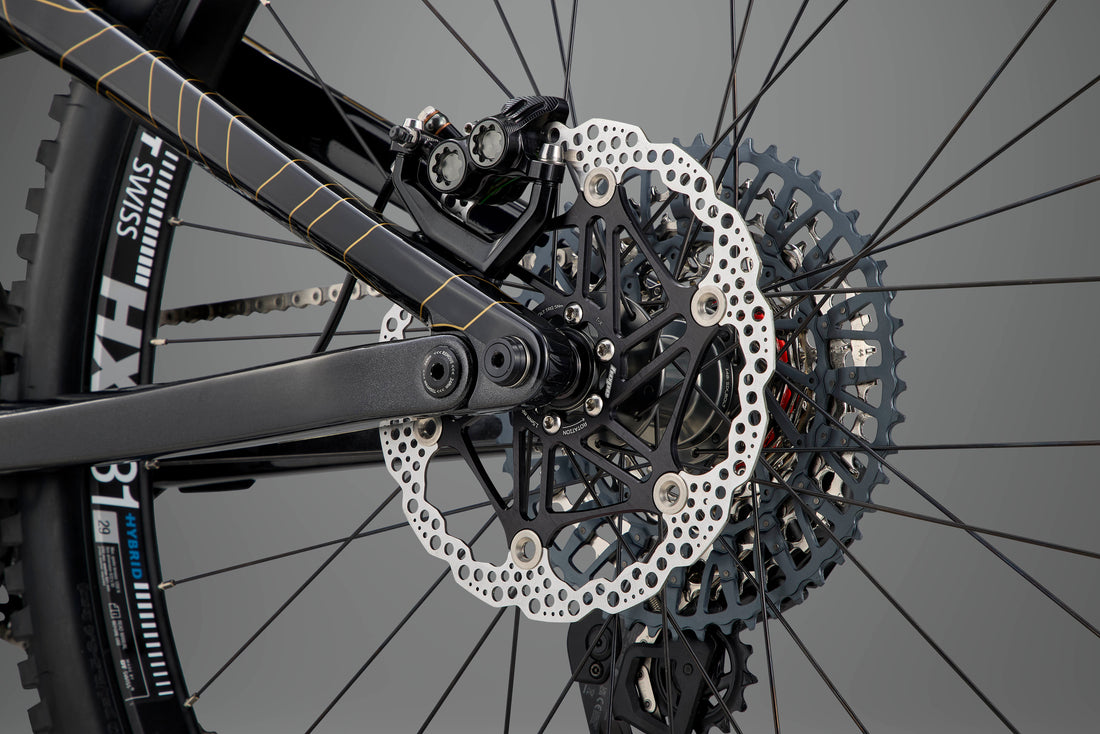

| SHIFT LEVERS | SRAM AXS Pod, right, MMX, 12 speed | BRAKES (REAR) | Hope EVO GR4, four piston hydraulic, 200mm diameter floating disc rotor |

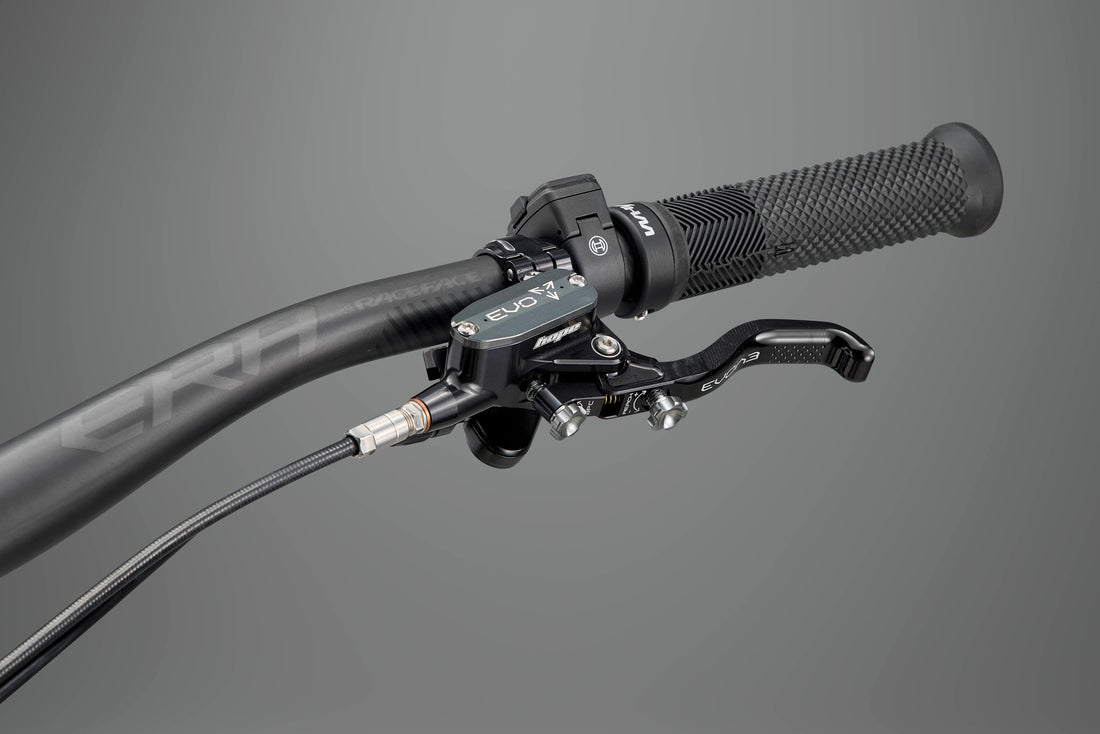

| FRONT MECH | N/A | BRAKE LEVERS | Hope EVO GR4 |
| REAR MECH | SRAM XO T-Type AXS, 12 speed, powered off the Bosch CX motor system’s internal battery | PEDALS | Fibre reinforced composite platform |
| WEIGHT |
eBike Specifications
| DRIVE UNIT | Bosch Performance Line CX (Smart System) Drive Unit with 100Nm maximum torque, 750W of peak power and 250W of nominal power. Features four power mode settings including Tour+ and eMTB+. AXS derailleur powered off motor. |
|---|---|
| BATTERY | Bosch PowerTube 800Wh, perfectly integrated into the frame with an intuitive lockable mechanism for easy removal. PowerMore compatible. |
| DISPLAY | Bosch Kiox 400C LCD display mounted within the top tube, paired with the discrete bar mounted Mini Remote. Also connects to the Bosch eBike Flow smartphone app to give you even more insight and control at your fingertips. |
| CHARGER | Charger 4A (230V) |
Please note: our custom motor covers are not currently compatible with the aftermarket Bosch eBike Alarm and Connect module to add bike tracking and alarm functionality to your Smart System bike
Geometry
| FRAME SIZE | Small | Medium | Large | Extra Large |
| A - REACH (mm) | 430 | >455 | 480 | 505 |
| B - STACK (mm) | 627.0 | 638.4 | 650.2 | 663.8 |
| C - HEAD ANGLE (° degrees) | 64.5 (63.9) | 64.5 (63.9) | 64.5 (63.9) | 64.5 (63.9) |
| D - SEAT ANGLE (° degrees) | 77.4 | 77.3 | 77.2 | 77 |
| E - BB HEIGHT (mm) | 354.2 | 354.2 | 346.3 | 346.3 |
| F - WHEELBASE (mm) | 1218.3 | 1248.4 | 1278.9 | 1310.2 |
| G - REAR CENTRE (mm) | 450.2 | 450.2 | 450.2 | 450.2 |
| H - STANDOVER HEIGHT (mm) | TBC | TBC | TBC | TBC |
| I - SEAT TUBE LENGTH (mm) | 395 | 420 | 445 | 470 |
| J - HEAD TUBE LENGTH (mm) | 104 | 116 | 129 | 144 |
