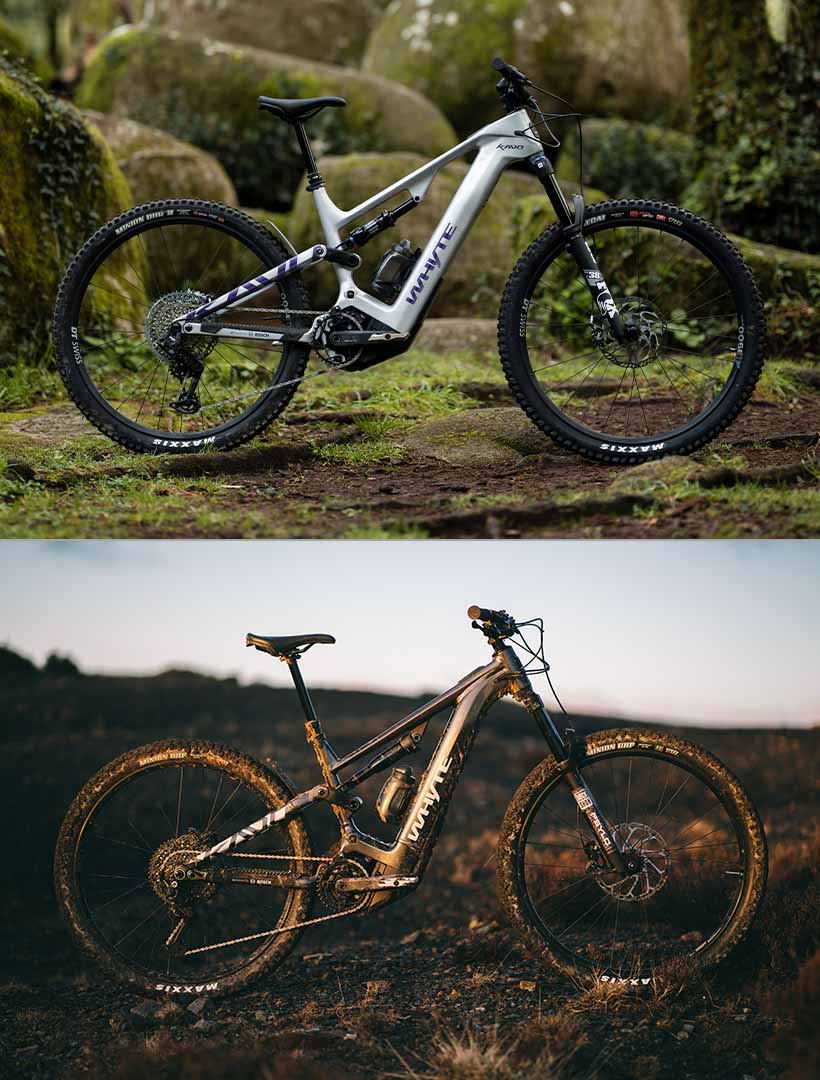

Choice of carbon or alloy frames

Three models, three frame material choices: full-carbon fibre (Kado RSX), carbon/alloy mix (Kado RS), and full aluminium (Kado S) frames so you can choose what suits you and your budget best.

Removeable internal battery

Easy to remove internal batteries make life a simple for charging or storing the batteries off the bike, as well as for car park or mid-ride battery swaps.

Low centre of gravity

A lower centre of gravity delivers a better handling and more confidence-inspiring ride in all situations.

Custom-tuned suspension

Whyte custom-tuned rear suspension delivers perfect performance, wherever the trail takes you.

29er wheels

29er wheels front and rear help smoothe out the rough to give you a speed and control advantage across any trail.

Geometry adjustment

Switch from ‘High’ to ‘Low’ – to slacken geo by 0.6º and lower the bottom bracket by 8mm – for more gravity-friendly handling.

Takes a waterbottle

Take water with you on any Kado with space for a water bottle on every frame size.

Tube-in-tube internal cable routing

Carbon Kado’s have fully lined internal hose and cable runs through both the frame’s front and rear triangles to make cable and hose changes as easy as A-B-C.

Switchable rear wheel

You can swap the rear wheelsize by changing the ‘Shape.It’ link to go from full 29er front and rear to MX (aka ‘mixed' or 'mullet' wheels – 29in front, 27.5in rear).

All Kado bikes are ready to convert to a MX wheel set-up (29in front, 27.5in rear wheel) so you can tailor their ride to exactly how you want – and all without affecting the geometry or the suspension kinematics. Just replace the bike’s stock Shape.It Link with our Shape.It Link L (62-66mm), together with a suitable ASTM/EN17406 rated rear wheel (category 4, enduro) laced with an eBike rated rear hub.

The latest Bosch CX motor

Bosch’s all-new Performance Line SCX full-torque (85Nm), full-power (600W) motor is quieter, lighter, and even more refined.

Kado* is compatible with Bosch’s aftermarket ‘PowerMore’ 250Wh range extender – to give you up to 1050Wh of battery capacity!

Up to 800Wh internal battery

Bosch’s latest, most efficient batteries give you more range for less weight than Bosch’s previous batteries. Choose from 600Wh or 800Wh batteries, depending on model and your country.

Kado* is compatible with Bosch’s aftermarket ‘PowerMore’ 250Wh range extender – to give you up to 1050Wh of battery capacity!

Minimal controls

Bosch’s Mini Remote and System Controller deliver a clean cockpit with everything you need for the ride but nothing you don’t.

Kado* is compatible with Bosch’s aftermarket ‘PowerMore’ 250Wh range extender – to give you up to 1050Wh of battery capacity!

Smartly connected

Personalise and manage your bike how you want, and get the most from your riding, using the rich features of Bosch’s eBike Flow companion app.

Kado* is compatible with Bosch’s aftermarket ‘PowerMore’ 250Wh range extender – to give you up to 1050Wh of battery capacity!

Ready for a range extender

Kado* is compatible with Bosch’s aftermarket ‘PowerMore’ 250Wh range extender – to give you up to 1050Wh of battery capacity!

*Size M–XL frames.

Mix and match

Every Kado can take both 600Wh and 800Wh batteries so if you decide to buy a larger (or smaller) battery so you can change the stock battery out for longer (or shorter) rides – or for racing – you can.

Kado* is compatible with Bosch’s aftermarket ‘PowerMore’ 250Wh range extender – to give you up to 1050Wh of battery capacity!

‘Wired-in’ gearing

RSX models have their SRAM AXS wireless electronic transmissions powered directly from the bike’s main battery – so you’ll never forget to charge the mech’s battery.

But that’s not all: the mech is powered by the battery’s lighting reserve cells so even if you ran out of juice for pedalling, you’ll still be able to shift your gears and ride home.

Kado* is compatible with Bosch’s aftermarket ‘PowerMore’ 250Wh range extender – to give you up to 1050Wh of battery capacity!

Short cranks

Short 155mm cranks deliver maximum ground clearance on RS and RSX models, with 160mm lengths on S models.

Fox / RockShox suspension

High-quality, high-performance suspension units – with meticulously custom-tuned rear shocks to smooth out the rough. Kado is also compatible with coil shocks.

Four-piston brakes

Powerful and controlled four-piston hydraulic disc brakes with oversized rotors for richly useable power.

Full-drop dropper posts

Size specific, full-drop dropper posts give you room to manoeuvre on even the steepest terrain.

Wide bars

Full 800mm wide bars give you the leverage to wrestle even the roughest lines into shape, and let you cut them down to your preferred width, too.

MaxxGrip tyres

Kado RSX and RS bikes benefit from Maxxis’ most grippiest compounds, partnered with puncture-resistant EXO+ and Double Down (DD) sidewall protection for durability.

Wide-range gearing

Take on any climb with wide-range 10-52T 1x transmissions on Kado RSX and RS bikes.

Weather-sealed

Keep the water out with weatherproofing features, such as sealed cable and hose ports, seat-clamp collar seal*, and more.

*Kado S models

Protected charge port

The charge port is positioned out of the firing line of rear wheel spray, together with a weather-proof cover.

Integrated rear fender

Keeps the mud and spray from going where it shouldn’t.

2.5in tyre clearance

Generous mud clearance for up to 2.5in tyres between the seat and chainstays to prevent mud and gunk slowing you down.

Armoured frame

Frame protection on the lower downtube and chainstay help keep the frame in great shape.

Pivot bearing protection

Phosphate-coated, marine grease packed bearings maximise service life through even the worst conditions and come with a lifetime warranty*.

*For the original owner. Simply register your bike with us for free within 28 days of purchase to activate your extended lifetime frame and pivot bearing warranties.
