ELyte 140 Works Large
trail/enduro electric mountain bike - Outlet

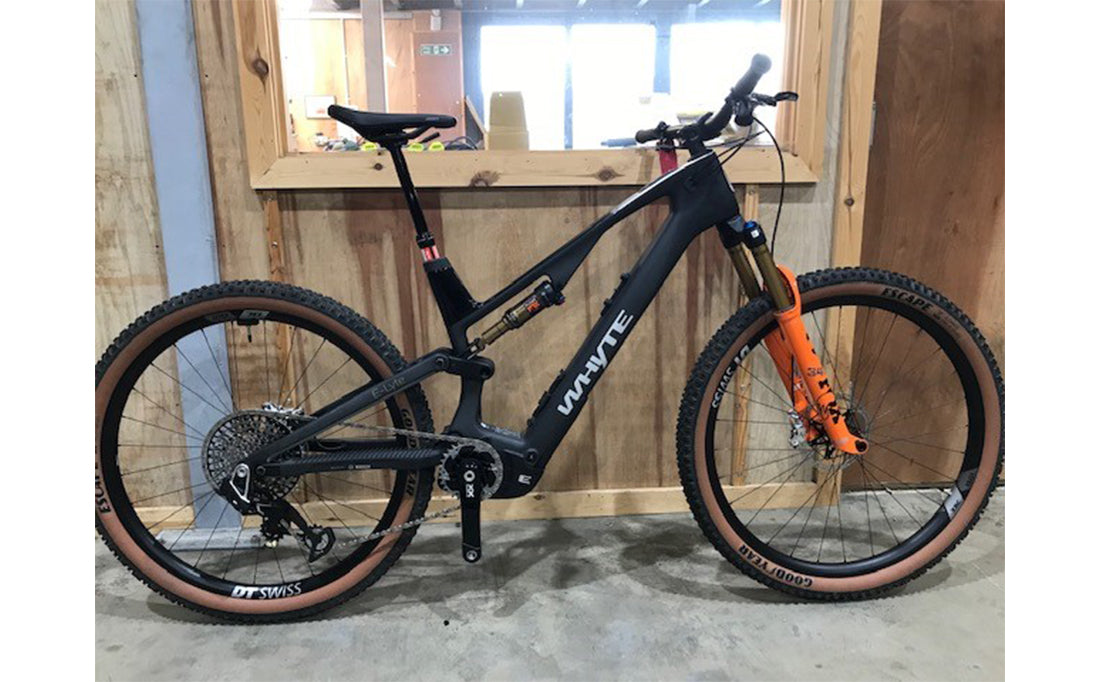

This ex-display 'Whyte Renewed' Certified Refurbished ELyte 140 Works (size large) has never been ridden with 0km 'on the clock'. It does have some dirt on the tyres from being wheeled around. You can see more detail in the product gallery at the top of the page, including detail photos of the actual bike's condition.
To ensure this bike meets our high standards for quality, it has been fully checked over by our professional Cytech-qualified mechanics and is in perfect working order. As with all our Whyte Certified Refurbished bikes, it comes complete with a two-year warranty against materials and manufacturing defects on its frame, a lifetime warranty on all main pivot bearings, and a one-year eBike system warranty (for 'Whyte Renewed' Certified Refurbished electric bikes).
Specifications
| COLOUR | Matt uni-directional (UD) carbon with gloss black | CASSETTE | SRAM XS 1297, T-Type, 10-52T, 12 speed |
|---|---|---|---|
| FRAME | Uni-directional carbon mainframe and seatstays, tapered head tube, ISCG 2 guide mounts, internal cable routing, Shape.it Link V2 and 12mm x 148mm Boost dropouts | CHAIN | SRAM XX T-Type, 12 speed |
| FORK | Fox Float 34 Factory 29in, 140mm travel, 44mm offset, FIT4 damper, tapered steerer, 110mm x 15mm Boost Kabolt axle | CRANKSET | SRAM XX Isis Carbon, 165mm arms, XX Gen4 Direct Mount 32T chainring, T-Type Light eMTB |
| REAR SHOCK | Fox Float Factory, Evol LV, adjustable rebound and two position compression adjustment | BOTTOM BRACKET | N/A |
| HEADSET | FSA No. 69/56/SRS, 1-1/8in upper and 1.5in lower with sealed angular contact bearing (ACB) catridge bearings, with side entry internal routing | SEATPOST | KS Lev Ci, 30.9mm, 175mm drop, with Southpaw remote lever |
| REAR HUB | DT Swiss 240, e-bike specific, double sealed cartridge bearings, straight pull, 12mm x 148mm Boost spacing, six bolt, XD driver | SADDLE | Terra Aidon X1, 145mm, fibre reinforced nylon with Wingflex, Carbon 7x7mm rail |
| FRONT HUB | DT Swiss 240, straight pull, six bolt, 15mm x 110mm Boost spacing | HANDLEBAR | Race Face NEXT R Carbon, 20mm rise, 35mm bar bore, 800mm wide |
| SPOKES | DT Swiss Competition spokes straight pull (SP) | STEM | Whyte Trail full CNC, 40mm extension, 35mm bar bore |
| RIMS | DT Swiss XRC 1501 Spline | GRIPS | Whyte Enduro lock-on |
| TYRE | Good Year Escape tubeless ready tan wall 29in x 2.4in, 800g front and rear | BRAKES FRONT | SRAM Level Ultimate Stealth, four piston hydraulic, 180mm diameter disc rotor |
| SHIFT LEVERS | SRAM AXS Pod, right, MMX, 12 speed | BRAKES REAR | SRAM Level Ultimate Stealth, four piston hydraulic, 180mm diameter disc rotor |
| FRONT MECH | N/A | BRAKE LEVERS | SRAM Level Ultimate Stealth |
| REAR MECH | SRAM XX SL T-Type AXS, 12 speed | PEDALS | Fibre reinforced composite platform |
| WEIGHT | 17.36kg (size M – weight does not include additional PowerMore range extender) |
Although we've taken every effort to ensure the accuracy of the information listed here sometimes things change so we reserve the right to change or update bike specifications, features, prices and colours as and when required.
Geometry
| FRAME SIZE | Small | Medium | Large | Extra Large |
| A - REACH (mm) | 435 | 460 | 485 | 510 |
| B - STACK (mm) | 622.7 | 634.5 | 646.3 | 657.2 |
| C - HEAD ANGLE (° degrees) | 65.6 (65) | 65.6 (65) | 65.6 (65) | 65.6 (65) |
| D - SEAT ANGLE (° degrees) | 77.9 | 77.7 | 77.5 | 77.3 |
| E - BB HEIGHT (mm) | 347.8 (339) | 347.8 (339) | 347.8 (339) | 347.8 (339) |
| F - WHEELBASE (mm) | 1207.8 | 1238.3 | 1268.8 | 1298.9 |
| G - REAR CENTRE (mm) | 450.2 | 450.2 | 450.2 | 450.2 |
| H - STANDOVER HEIGHT (mm) | 739 | 739 | 739 | 739 |
| I - SEAT TUBE LENGTH (mm) | 395 | 420 | 445 | 470 |
| J - HEAD TUBE LENGTH (mm) | 114 | 127 | 140 | 152 |
