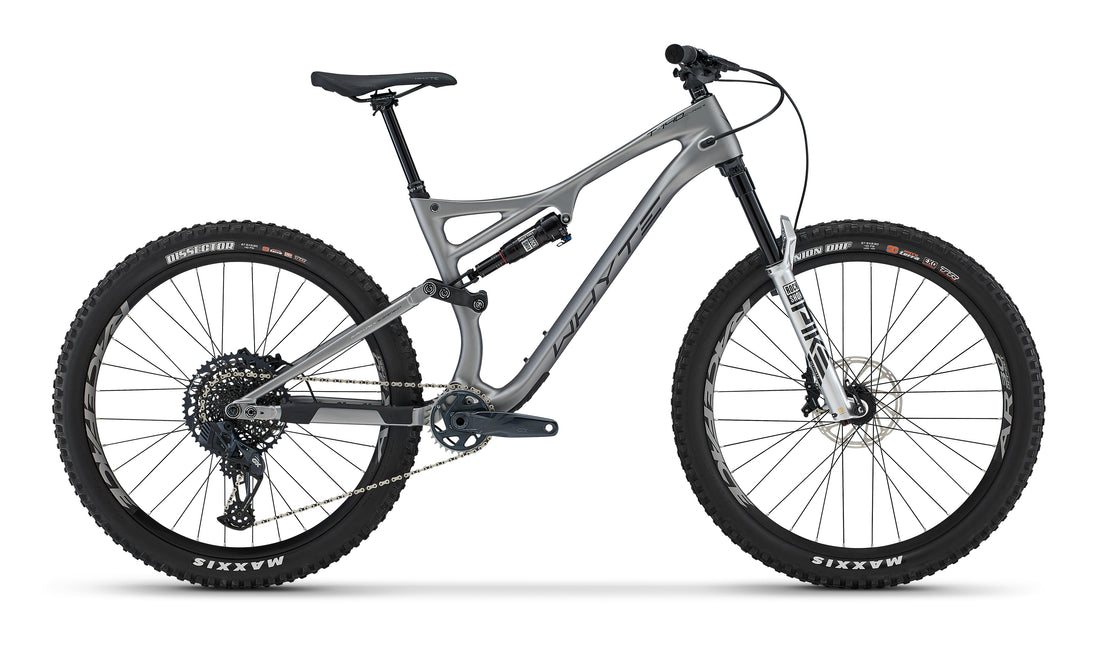

T-140C RSX
Full Suspension Trail Bike - Outlet

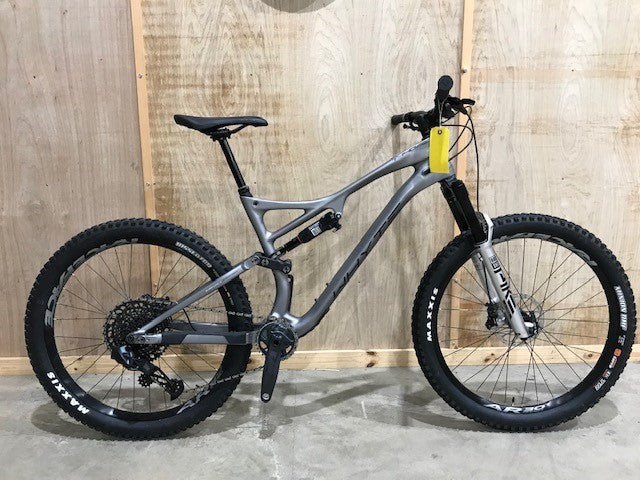

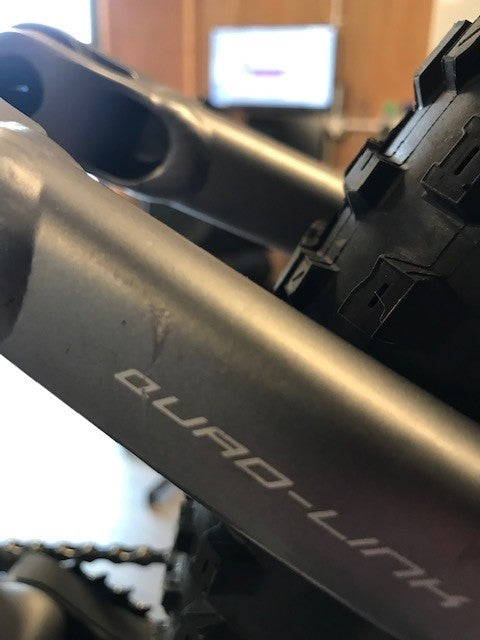

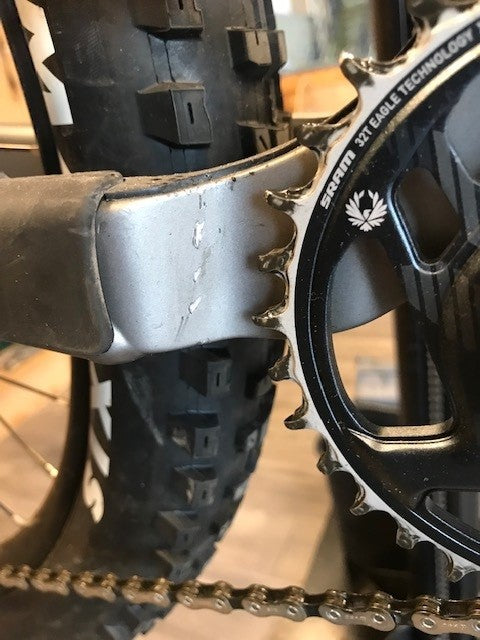

This ex-demo 'Whyte Renewed' Certified Refurbished T-140 C RSX (size large) is in 'used' condition with light signs of use, including some scratches to the frame. You can see more detail in the product gallery at the top of the page, including detail photos of the actual bike's condition.
To ensure this bike meets our high standards for quality, it has been fully checked over by our professional Cytech-qualified mechanics and is in perfect working order. As with all our Whyte Certified Refurbished bikes, it comes complete with a two-year warranty against materials and manufacturing defects on its frame, a lifetime warranty on all main pivot bearings, and a one-year eBike system warranty (for 'Whyte Renewed' Certified Refurbished electric bikes).
Every 'Whyte Renewed' Certified Refurbished bike comes pre-assembled in the box so all you need to do is to put the bar and stem onto the fork steerer, insert the front wheel and add your pedals. To help you through this process, we've complete step-by-step video and written guides here >.
Outlet bikes are only available for delivery to a UK mainland address and are sent on a one-to-three-day delivery service. Delivery times vary, but range from:
– One-to-two days for most postcodes in mainland England and Wales.
– Two-to-three days for much of Scotland and Northern Ireland.
– If you’re in a remote location the time for delivery can be longer – between three-to-five days.
– A signature is required on delivery.
– Deliveries are made anywhere between 8am and 6pm, Mon- Fri.
– Please ensure you will be able to receive and sign-for your bike as we cannot guarantee a delivery time.
– We will send you confirmation of despatch and a tracking link as soon as your bike leaves us.
– If you’re not going to be in, please contact us immediately so we can do our best to rearrange the delivery for you.
– If delivery has been attempted, you should be left a card with the details of how to rearrange your delivery with the courier.
Specifications
| COLOUR | Matt Zinc with Black & Grey | CASSETTE | SRAM XG-1275 Eagle, 10-52, 12 Speed |
|---|---|---|---|
| FRAME | Carbon, Uni-directional Multi Monocoque Front Triangle with Internal Cable Routing, Tapered Head Tube, ISCG, 2 Bolt Guide Mounts, Alloy Symmetrical SCR Rear Triangle, Shape.it and 148mm Boost Dropouts | CHAIN | SRAM GX Eagle, 12 Speed |
| FORK | RockShox Pike Ultimate RC 27.5"", 140mm Travel, 37mm Offset, DebonAir, Charger RCT3 Damper, Fast Black Coating, Tapered Steerer, 110mm x 15mm Boost, Maxle Ultimate | CRANKSET | SRAM GX Eagle, X-SYNC 2, Direct Mount 32T, DUB, 170mm, Boost, 12 Speed |
| REAR SHOCK | RockShox Deluxe Ultimate RCT, DebonAir, Fast Black Coating, Adjustable Rebound and 2 Position Compression | BOTTOM BRACKET | SRAM DUB, BSA, 73mm |
| HEADSET | FSA No. 42 Orbit ZS Plus, Integrated, 1 1/2"" Lower and 1 1/8"" Upper Sealed Cartridge Bearings | SEATPOST | Bike Yoke Revive, 30.9mm, S 125mm Travel, M/L/XL 160mm Travel, Triggy Remote with MMX attachment |
| REAR HUB | Alloy, Double Sealed Cartridge Bearings, 12mm x 148mm Boost Thru Axle, 9 deg Micro Engagement 4 Pawl, XD Driver, 32 Hole | SADDLE | Whyte Custom, Dual Density, Triple Panel Design |
| FRONT HUB | Alloy, Double Sealed Cartridge Bearings, 15mm x 110mm Boost Thru Axle, 31mm Torque Caps, 32 Hole | HANDLEBAR | Whyte 6061 Alloy, 31.8mm, S 15mm Rise, 760mm Wide, M/L/XL, 30mm Rise 780mm Wide |
| SPOKES | DT Swiss New Champion 2.0mm, Black Stainless, Brass Nipples | STEM | Whyte Gravity Stem, 35mm Extension |
| RIMS | Race Face AR-30, Offset, 30mm Wide, Sleeved Joint, Tubeless Ready, 32 Hole | GRIPS | Whyte Lock-on Enduro Grip |
| TYRE | Maxxis Minion DHF TR 27.5"" x 2.6"" 120TPI, EXO Sidewall Protection, 3C Maxx Terra, Front, Maxxis Dissector TR 27.5"" x 2.6"" 120TPI, EXO+ Sidewall Protection, 3C Maxx Terra, Rear | BRAKES FRONT | SRAM Guide G2 RS, 4 Piston, 180mm Disc |
| SHIFT LEVERS | SRAM GX AXS Eagle, 2 Button, MMX, 12 Speed | BRAKES REAR | SRAM Guide G2 RS, 4 Piston, 180mm Disc, Internal Routing |
| FRONT MECH | N/A | BRAKE LEVERS | SRAM Guide G2 RS, MMX |
| REAR MECH | SRAM GX Eagle AXS Lunar, with Battery Protector, 12 Speed | PEDALS | None |
| WEIGHT | TBC |
Although we've taken every effort to ensure the accuracy of the information listed here sometimes things change so we reserve the right to change or update bike specifications, features, prices and colours as and when required.

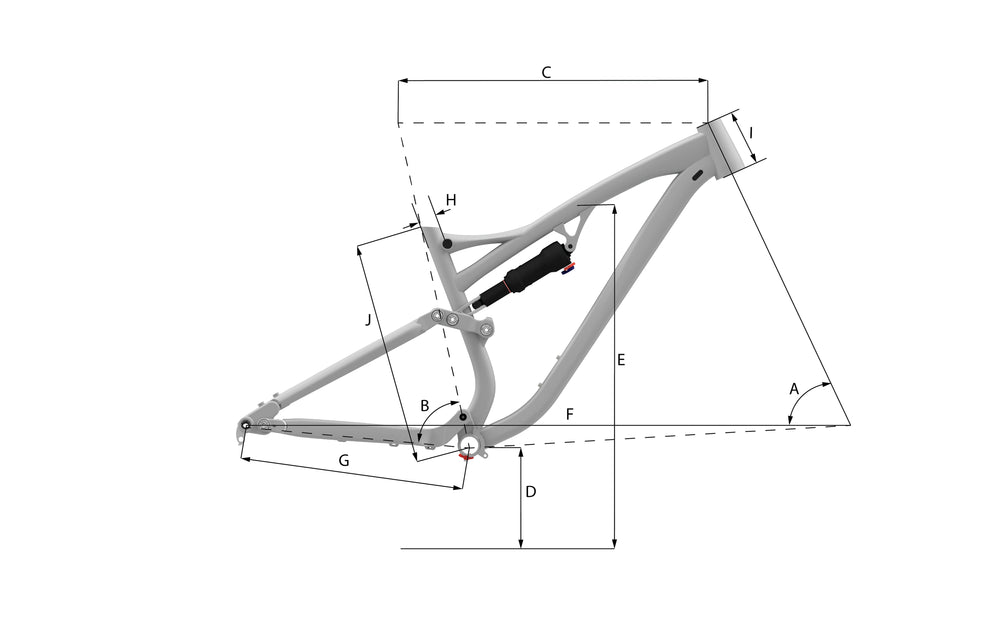

Geometry
| GEOMETRY | ||||
|---|---|---|---|---|
| SIZE | Small | Medium | Large | Extra Large |
| HEAD TUBE ANGLE | 65.9 (65.3) | 65.9 (65.3) | 65.9 (65.3) | 65.9 (65.3) |
| SEAT TUBE ANGLE | 74.7 | 74.5 | 74.3 | 74.1 |
| TOP TUBE HORIZONTAL | 583 | 612 | 640 | 669 |
| BB HEIGHT ABOVE GROUND | 330.1 (322.3) | 330.1 (322.3) | 330.1 (322.3) | 330.1 (322.3) |
| STAND OVER HEIGHT | 796 | 802 | 808 | 815 |
| WHEEL BASE | 1168 | 1198 | 1228 | 1256 |
| CHAIN STAY LENGTH | 435 | 435 | 435 | 435 |
| SEAT POST DIAMETER | 30.9 | 30.9 | 30.9 | 30.9 |
| HEAD TUBE LENGTH | 112 | 125 | 140 | 150 |
| SEAT TUBE LENGTH | 406.4 | 431.8 | 457.2 | 482.6 |
| STACK | 594 | 616 | 630 | 639 |
| REACH |
