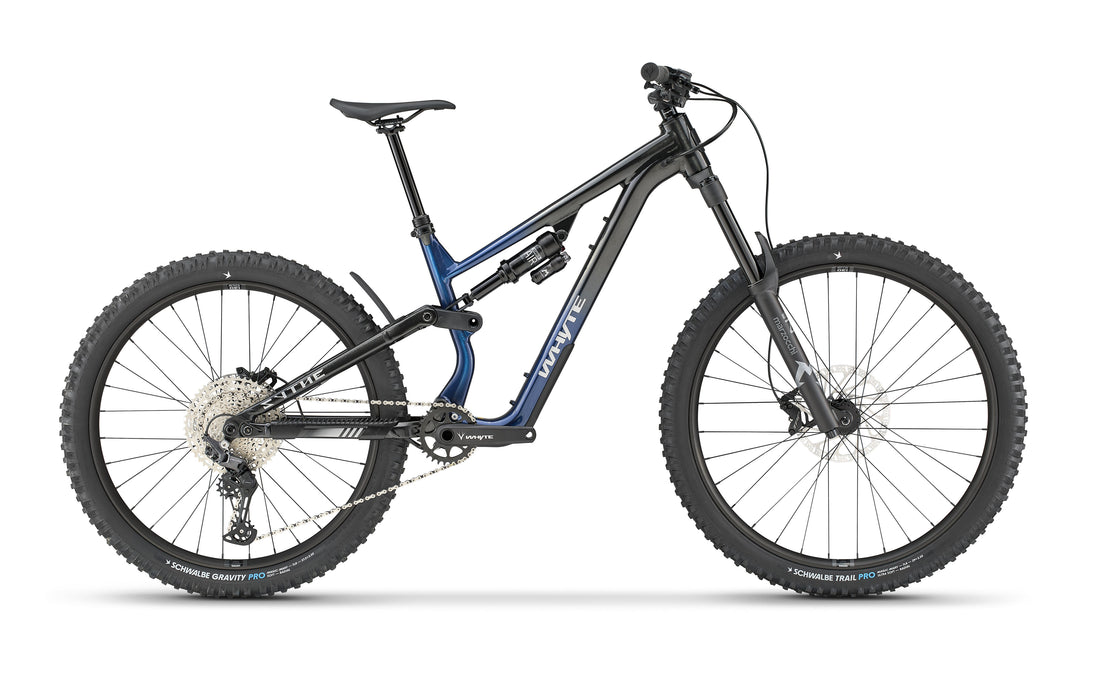

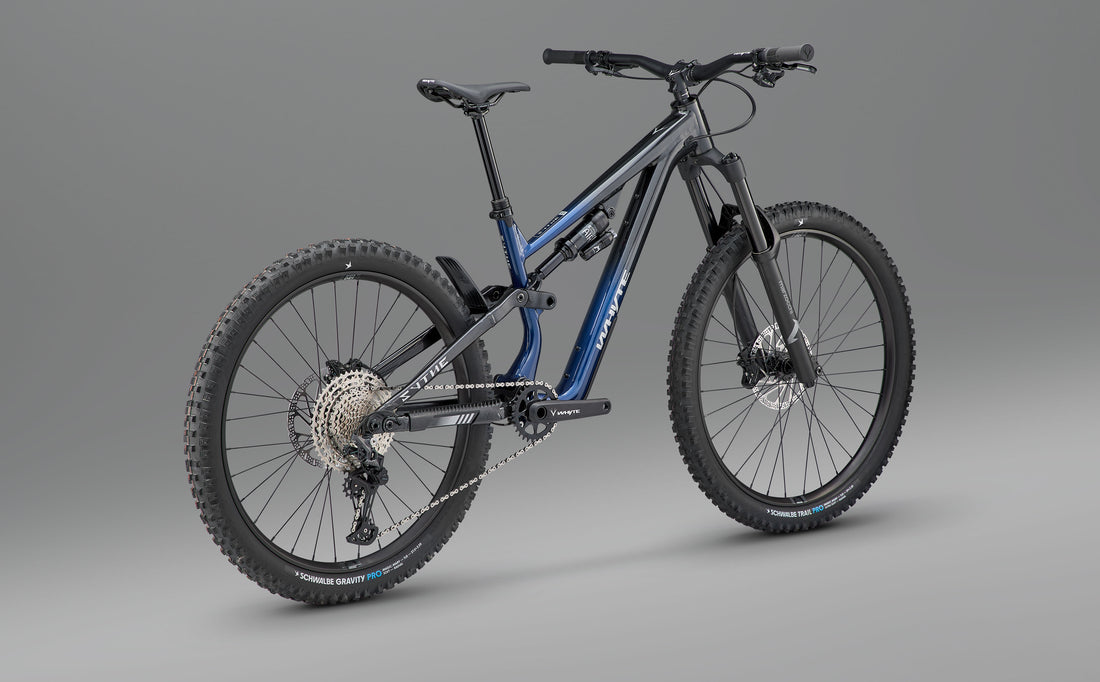

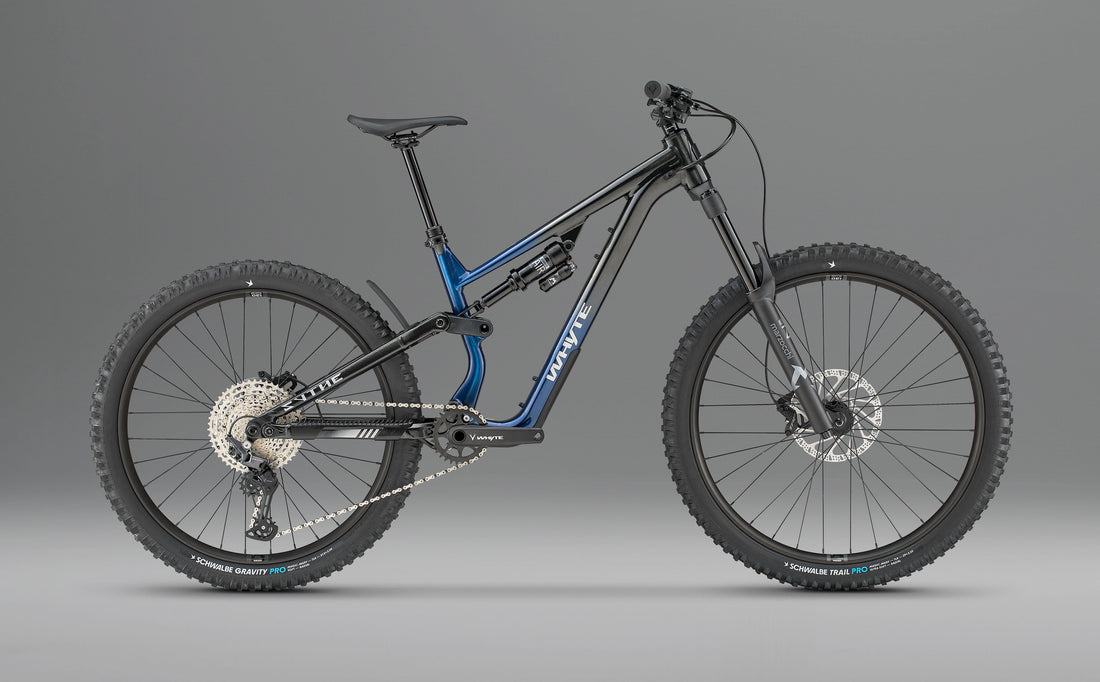

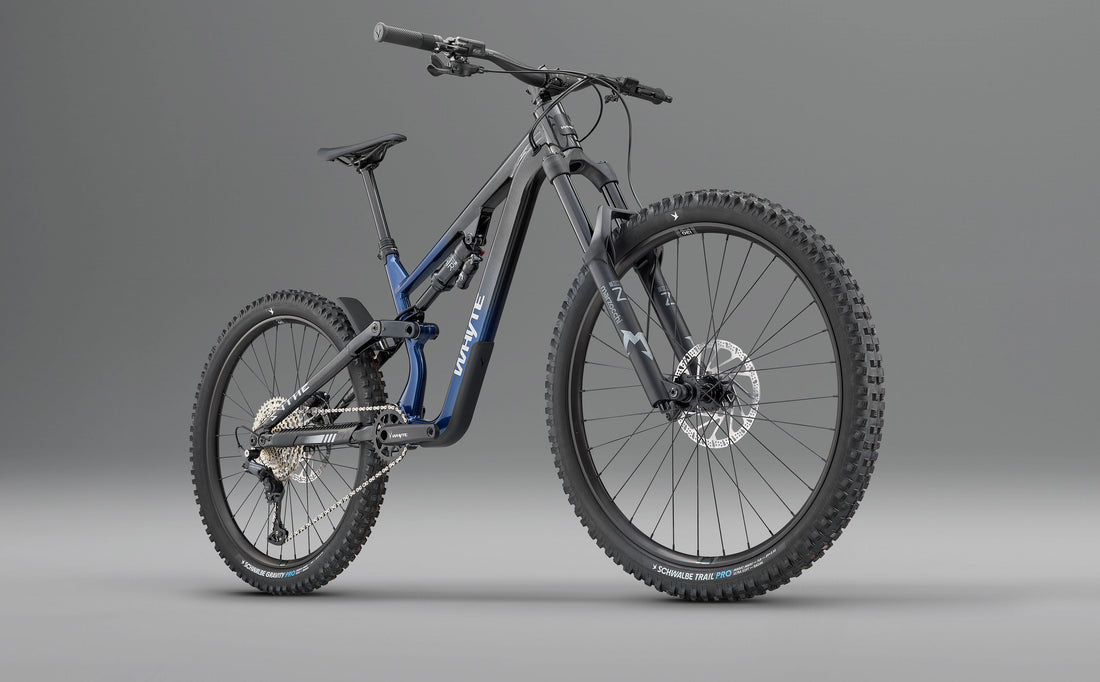

Sythe S
Enduro & gravity mountain bike
SKUWSYTS1SV1-1
Go hard without breaking the bank
Sythe S delivers the confidence and control you need for steep, rough and demanding trails in a high value, high performance package: progressive, proportionally-sized geometry and capable long-travel Quad-Link 4 suspension keep handling stable and predictable when speeds rise and terrain gets technical, while balanced performance makes climbing back up feel efficient and manageable. Tough, dependable and dressed in trail-proven components, with weather-sealed durability and MX (mixed/'mullet') wheels for clearance when things get steep, Sythe S is designed for real-world riding, and ready to handle both year-round abuse and the biggest days on the hill alike.
Highlights
– 170mm front + 160mm rear of Whyte custom-tuned suspension travel (Marzocchi Bomber Z1 29in fork + Marzocchi Bomber Air piggyback rear shock).
– 6061 hydroformed T6 multi-butted alloy frame + geometry adjustment.
– Proportional sizing delivers perfect fit and uncompromised handling for every rider.
– Shimano Deore 1x12 transmission (30T chainring x 10-52T cassette).
– TRP EVO Comp four-piston hydraulic disc brakes (203mm rotors front + rear).
– Full-insertion dropper post (with frame size size-specific drop).
– MX/mixed/’mullet’ wheels (29in front, 27.5in rear) + Schwalbe Magic Mary Radial tyres (ready to be converted to full 29in front and rear (sizes M, L + XL only)).
Ideal for... Gravity thrill seekers, enduro racers, bike-park shredders, and big mountain riders looking for top performance at a low price.
Perfect handling for everyone
Switchable geometry
Our Shape.It Link flip-chip lets you fine-tune the Sythe S to match your riding style and terrain. Switch between the high and low settings to adjust geometry, slackening the head angle by 0.6 degrees and lowering the bottom bracket by 8mm in the low position. For maximum stability and a planted feel on steep, fast bike park laps and technical descents, run it low. Want a more responsive, efficient set-up for longer rides and big days in the hills? Keep it in the higher position for improved pedal clearance and all-day versatility.
Changeable wheelsize
Want to carry even more speed through rough terrain and high-speed lines? Our Shape.It link lets you convert Sythe S from its stock MX wheel set-up (mixed/'mullet' (29in front, 27.5in rear wheel) to a full 29er configuration (29in wheels front + rear) for maximum rollover performance and stability. Simply swap the stock Shape.It link for the 29er-specific version (58-62mm; WAMLINK08), together with a suitable category 4-rated 29in rear wheel, to retain full geometry adjustment between the high and low settings. The result is a faster, more planted ride feel built for charging through rock gardens, blown-out tracks and demanding enduro terrain. Please note: full 29er conversion is only possible on size M, L + XL frames only – not on size S.
Built to resist
The Sythe S alloy frame is built to handle full seasons of hard riding, whatever the weather. Weather-sealed cable ports, hose routing and seat clamp help keep water and grit out, while generous tyre clearance prevents mud build-up when conditions turn bad. Robust chainstay and downtube protection silence trail chatter and fend off rock strikes, and phosphate-coated, marine grease-packed pivot bearings are designed to keep performing through relentless wet-weather abuse. Add our lifetime extended frame and pivot bearing warranties* for extra peace of mind, and the Sythe S is ready for years of bike park laps, enduro stages and all-weather riding. Plus, if you want to run a chainguide for extra security, Sythe S's ISCG tabs are ready. Just add our WMCG1 chainguide.
Specifications
| COLOUR | Sapphire blue (gloss) | CASSETTE | Shimano CSM6100, 11-51T, black, 12 speed |
|---|---|---|---|
| FRAME | 6061 Alloy, Aluminium Front Triangle with ZS56 Head Tube, ISCG 2 Guide Mounts, proportional chainstays, Shape.it link and 148mm Boost Dropouts | CHAIN | KMC X12, 12 speed |
| FORK | Marzocchi Bomber Z1, 170mm travel, 44mm offset, air spring, Rail damper, black coating, tapered steerer, 110mm x 15mm Boost, Kabolt axle | CRANKSET | Whyte, forged two-piece cranks, direct mount, alloy 30T narrow/wide chainring, 165mm crank length, Boost, 12 speed, 55mm chainline |
| REAR SHOCK | Marzocchi Bomber Air piggyback shock, black coating, adjustable rebound and compression, 230 x 57.5mm, custom tuned for Whyte | BOTTOM BRACKET | BSA, cartridge bearings, 73mm |
| HEADSET | ZS56 upper / lower headset cups for 1 1/18in upper and 1.5in lower with sealed bearings | SEATPOST | TranzX dropper post, 30.9mm, frame size specific drop (size S 150mm drop; size M 170mm drop; sizes L-XL 200mm drop) |
| REAR HUB | Alloy, double sealed cartridge bearings, 12mm x 148mm Boost thru axle, MicroSpline freehub, 32 hole | SEAT | Whyte Custom |
| FRONT HUB | Alloy, double sealed cartridge bearings, 15mm x 110mm Boost thru axle, 32 hole | BAR | Whyte Custom 6061 alloy, 30mm rise, 35mm bar bore, 800mm wide |
| SPOKES | Pillar 14G, black stainless, brass nipples | STEM | Whyte, 35mm extension, 35mm bar bore |
| RIMS | WTB ST Tough i30 TCS 2.0 System, pinned joint, tubeless ready, 32 hole, 29in (front), 27.5in (rear) | GRIPS | Whyte Enduro lock-on |
| TYRES | Schwalbe Magic Mary Radial 29 x 2.5in Trail, Super Soft (front); Schwalbe Magic Mary Radial 27.5 x 2.5in, Gravity casing, Soft (rear) | BRAKES FRONT | TRP EVO Comp hydraulic disc brake, four piston, sintered metal pads, 203 x 2.3mm rotor, MMX |
| SHIFT LEVERS | Shimano M6100 Deore, I-Spec EV, 12 speed | BRAKES REAR | TRP EVO Comp hydraulic disc brake, four piston, sintered metal pads, 203 x 2.3mm rotor, MMX |
| FRONT MECH | N/A | BRAKE LEVERS | TRP EVO Comp |
| REAR MECH | Shimano M6100 Deore, SGS, Shadow Plus, 12 speed | PEDALS | Fibre reinforced composite platform |
| WEIGHT | TBC |
Although we've taken every effort to ensure the accuracy of the information listed here sometimes things change so we reserve the right to change or update bike specifications, features, prices and colours as and when required.
Geometry
| FRAME SIZE | Small | Medium | Large | Extra Large |
| A - REACH (mm) | 435 | 457 | 482 | 507 |
| B - STACK (mm) | 623.2 | 636.5 | 648.2 | 661.6 |
| C - HEAD ANGLE (° degrees) | 64.1 / 63.5 | 63.8 / 63.2 | 63.8 / 63.2 | 63.8 / 63.2 |
| D - SEAT ANGLE (° degrees) | 77.6 | 77.6 | 77.5 | 77.5 |
| E - BB HEIGHT (mm) | 346 | 342 | 342 | 342 |
| F - WHEELBASE (mm) | 1201 | 1242.2 | 1282.8 | 1324.4 |
| G - REAR CENTRE (mm) | 428 | 439 | 449 | 459 |
| H - STANDOVER HEIGHT (mm) | 774 | 774 | 774 | 774 |
| I - SEAT TUBE LENGTH (mm) | 395 | 420 | 445 | 470 |
| J - HEAD TUBE LENGTH (mm) | 99 | 111 | 124 | 139 |
