Secta S
trail mountain bike
SKUWSECS1SV1-2
High performance, low price
However you ride, Secta S will help unlock your riding potential in a fun, capable and confidence-inspiring package. Blending progressive geometry, specially curated components and full weatherproofing for the best possible performance and value combination, Secta S is a proper real-world, modern mountain bike that’s trail-ready right from the shop floor.
Highlights
– Fully featured 6061 T6 hydroformed frame.

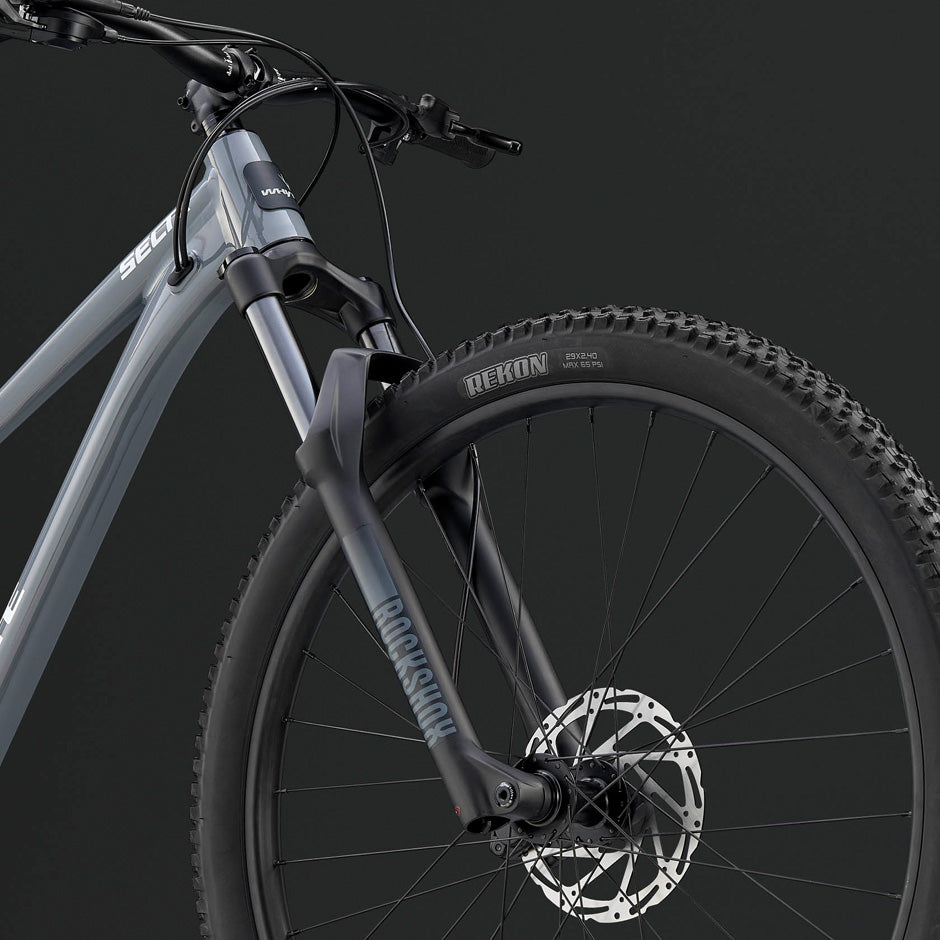

– 130mm RockShox Rekon Silver RL suspension fork.
– Capable, smooth-rolling 29er wheels + Maxxis tyres.
– Shimano Cues 1x10 transmission (30T chainring x 11-48 cassette).
– Tektro two-piston hydraulic disc brakes (180mm rotors front + rear)
– TransX full-insertion dropper post (with frame size-specific drop).
Simply versatile, simply fun
Secta S has been designed to give you an exhilarating and capable experience so you can turn up the fun on any trail. By blending progressive 29er trail hardtail geometry with the geometric sweet-spot of a 130mm travel short-offset fork, specially curated components and tyre choice, we've tuned Secta S to deliver you brilliantly balanced handling, everywhere. All so you can have even more fun on the trails you love– whether going all-out up tricky climbs, full-bore down techy descents, and everywhere in between.
It’s all in the frame

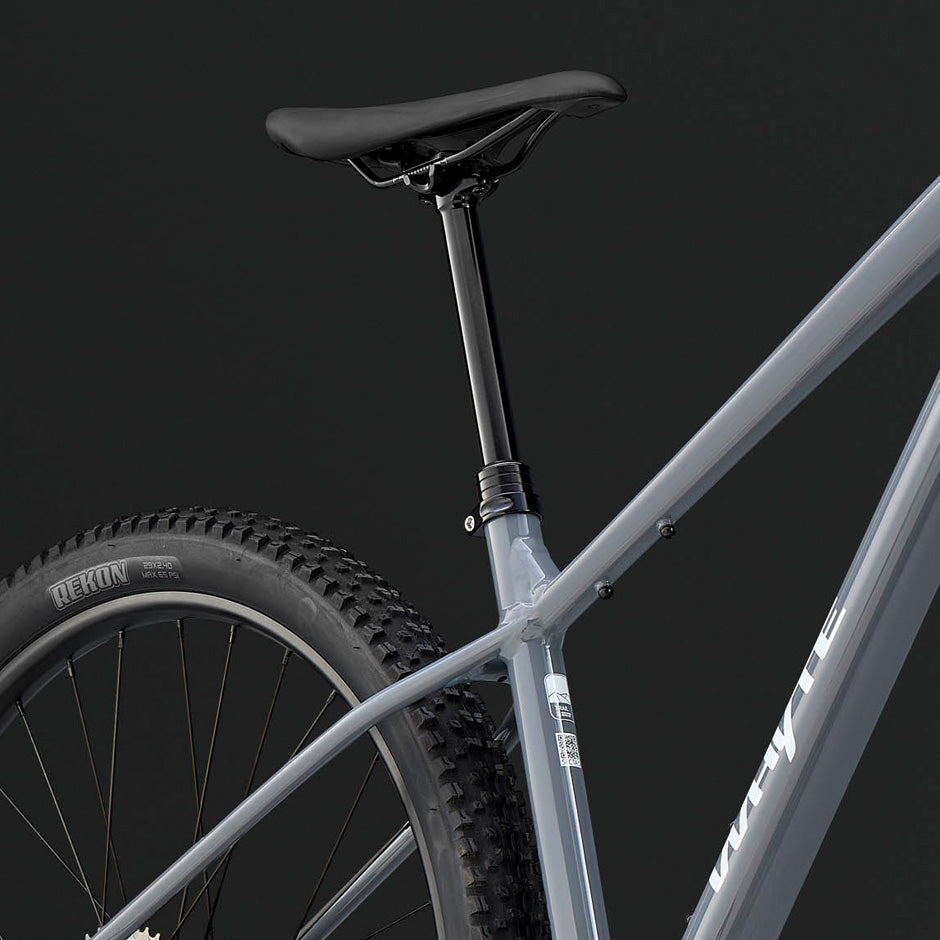

Secta S’s all-new frame is fully featured and lavished with intelligent details to boost your riding: a compact seatube and plenty of stand over combines with a long-stroke, full-insertion dropper post to give you all the room to maneuverer you may need. Low-down bottle cage bosses ensure a low centre of gravity and great handling – even with the extra weight of a full water bottle – so you can corner like a boss. Add in a pair of bosses under the top-tube to carry a tool or tube; a threaded BBX63 bottom bracket shell; 12mm x 148mm Boost rear dropouts, as well as SRAM UDH compatibility and with Secta S you’re all-set.
Made to last
To ensure that living with it for the long-haul is as good an experience as riding it, we’ve loaded the Secta S with all the bad-weather-beating and practical features possible to keep it running brilliantly ride after ride. External headtube cable routing and fully sealed cable runs (with weather-sealed cable ports) ensure easy to maintain and long-lasting performance; a weather-sealed seat post collar further defends against water and muck; room to fit up to a 29x2.6in rear tyre with ample mud clearance – thanks to our big-tyre friendly Single Chain Ring frame design – gives you the option to run bigger rubber; while a custom chainstay protector guards the frame from chain slap to silence your ride.
Specifications
| COLOUR | Aqua Storm | CASSETTE | Shimano LG400, 11-48T, 10 speed |
|---|---|---|---|
| FRAME | 6061-T6 heat treated aluminium, multi-shaped and formed main-frame tubing; Single Chain Ring (SCR) 1x-specific design; 1.125–1.5in tapered Zero-Stack headtube; full 300mm reamed depth 30.9mm seat tube for maximum dropper seat post insertion; external headset/grommet sealed internal frame cable and brake hose routing; 73mm BSA / BB-X63 dropper seatpost compatible bottom bracket (BB) shell; Post Mount 180mm disc dropout and SRAM UDH spec derailleur hanger; 12mm x 148mm Boost. | CHAIN | Shimano LG500, 118 links |
| FORK | RockShox Rekon Silver RL 29in, 130mm travel, 44mm offset, DebonAir, Fast Black coating, adjustable compression and rebound, tapered steerer, 110mm x 15mm Boost, Maxle Stealth | CRANKSET | Shimano CUES U6000, 30T chainring, 170mm, 10 speed, 52mm chainline |
| REAR SHOCK | N/A | BOTTOM BRACKET | Shimano BB-MT501, Hollowtech II, 73mm |
| HEADSET | FSA No. 57B Orbit ZS, 1 1/2in lower and 1 1/8in upper caged bearings | SEATPOST | TransX size specific dropper post, 30.9mm (size S 150mm travel; sizes M-XL 170mm travel) |
| REAR HUB | Alloy, double sealed cartridge bearings, 12mm x 148mm Boost spacing, 32 hole, HG freehub | SADDLE | Whyte Custom |
| FRONT HUB | Alloy, 15mm x 110mm Boost spacing, 32 hole | HANDLEBAR | Whyte 6061 alloy, 15mm rise, 31.8mm bar bore, 760mm wide |
| SPOKES | 2.0mm, black stainless, brass nipples | STEM | Whyte alloy, 35mm extension, 31.8mm bar bore |
| RIMS | Pinned joint, 30mm internal width, tubeless ready, 32 hole | GRIPS | Whyte Trail lock-on |
| TYRE | Maxxis Rekon 29in x 2.4in front and rear | BRAKES FRONT | Tektro M285 hydraulic disc brake, two piston,180mm diameter disc rotor |
| SHIFT LEVERS | Shimano CUES U6000, 10 speed, Band On clamp | BRAKES REAR | Tektro M285 hydraulic disc brake, two piston,180mm diameter disc rotor |
| FRONT MECH | N/A | BRAKE LEVERS | Tektro M285 |
| REAR MECH | Shimano CUES U6000, 10 speed | PEDALS | Fibre reinforced composite platform |
| WEIGHT | TBC |
Although we've taken every effort to ensure the accuracy of the information listed here sometimes things change so we reserve the right to change or update bike specifications, features, prices and colours as and when required.
Geometry
| GEOMETRY | ||||
|---|---|---|---|---|
| FRAME SIZE | Small | Medium | Large | Extra Large |
| A - REACH (mm) | 420 | 445 | 470 | 495 |
| B - STACK (mm) | 649.4 | 644 | 662 | 671 |
| C - HEAD ANGLE (° degrees) | 63.5 | 63.5 | 63.5 | 63.5 |
| D - SEAT ANGLE (° degrees) | 75.5 | 76 | 76.5 | 77 |
| E - BB HEIGHT (mm) | 298 | 298 | 298 | 298 |
| F - WHEELBASE (mm) | 1187.4 | 1215.1 | 1246.4 | 1275.9 |
| G - REAR CENTRE (mm) | 443.4 | 443.4 | 443.4 | 443.4 |
| H - STANDOVER HEIGHT (mm) | TBC | TBC | TBC | TBC |
| I - SEAT TUBE LENGTH (mm) | 395 | 420 | 445 | 470 |
| J - HEAD TUBE LENGTH (mm) | 105 | 114 | 125 | 135 |
