Whyte Secta RSX
Trail mountain bike
SKUWSECRSX1SV1
Go fast, go far, go fun
The Whyte Secta RSX is our top-of-the-range trail hardtail, built on 20 years of award-winning hardtail heritage. Designed and tested year-round in the UK's notoriously brutal weather, it's a modern hardtail mountain bike engineered to handle every trail and every condition.
The Whyte Secta RSX combines a fully-featured frame, confidence-inspiring geometry, capable componentry, and full weatherproofing – giving you the control and confidence to tackle technical climbs, aggressive descents, and all-day trail adventures, whatever the terrain or weather throws at you.
Highlights
– Fully featured, weatherproof 6061 T6 precision formed aluminium frame + SRAM UDH compatible.
– 130mm RockShox Pike Select suspension fork.
– Capable, smooth-rolling 29er wheels + 2.4in Schwalbe Albert + Romy radial tyres.
– Shimano XT 1x12 transmission (30T chainring x 10-51 cassette).

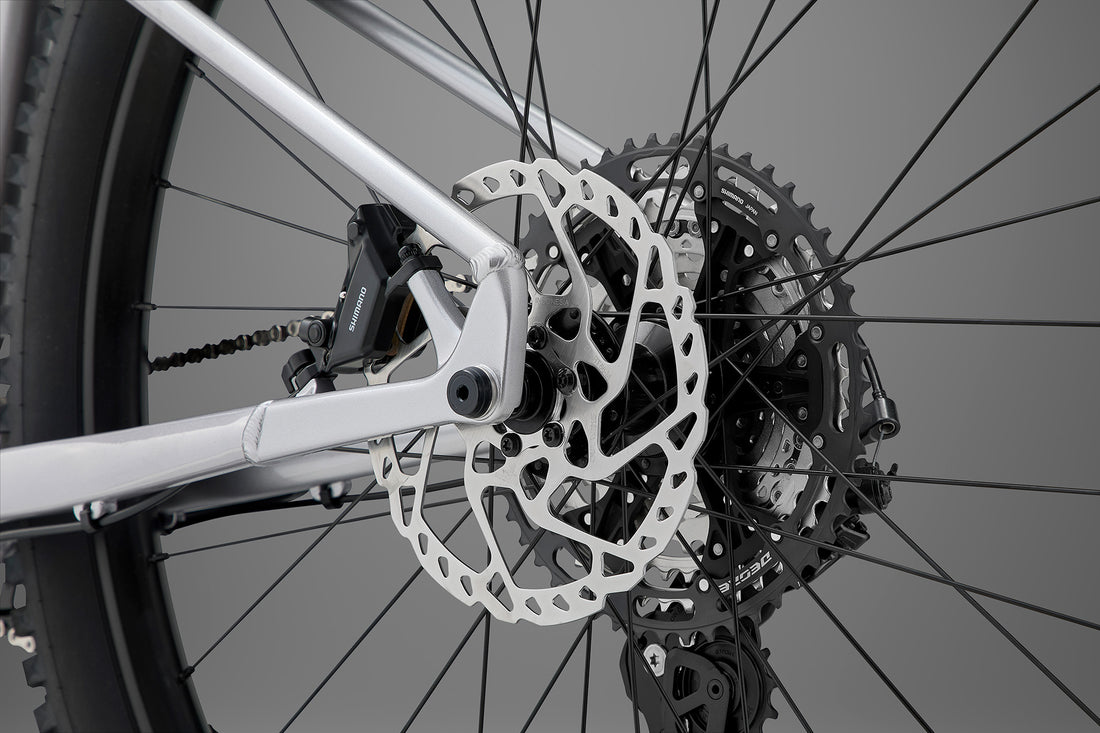

– Shimano four-piston hydraulic disc brakes (180mm rotors front + rear).
– TransX +RAD full-insertion dropper post (with frame size-specific drop, all with 30mm of finely tuneable travel adjustment).
Ideal for: Riders who want a versatile, lightweight hardtail for aggressive trail riding, technical climbs, and all-day adventures – but without the weight, complexity, or maintenance of rear suspension.
Modern 29er trail hardtail geometry
The Whyte Secta RSX is designed to deliver an exhilarating, capable ride – so you can turn up the fun on any trail. Progressive 29er trail hardtail geometry is paired with a 130mm-travel, short-offset fork, plus carefully curated components and tyre choice, to give the Whyte Secta RSX brilliantly balanced handling everywhere you ride. Whether you're powering up tricky technical climbs, hammering down techy descents, or riding everything in between, the Whyte Secta RSX keeps you capable, confident, and having fun.

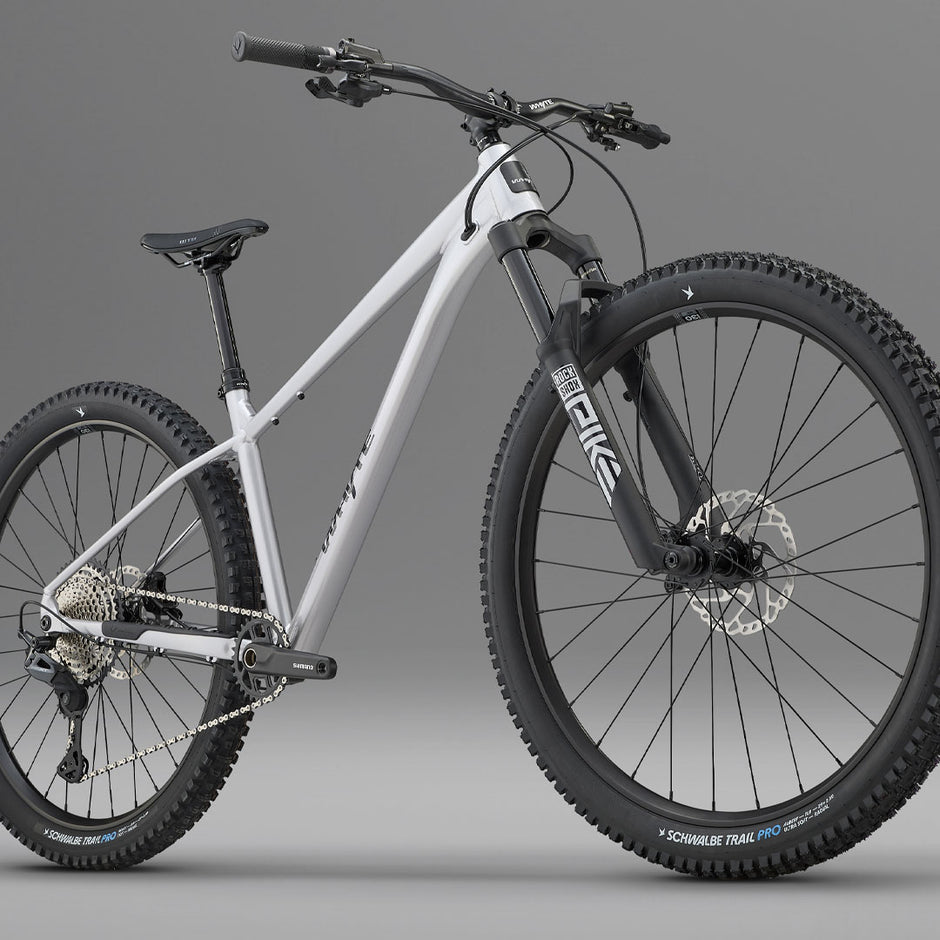

Fully-featured frame design
The Whyte Secta RSX frame is fully featured, with intelligent details engineered to boost every ride. A compact seat tube and generous standover height combine with a long-stroke, full-insertion dropper post for maximum room to manoeuvre. Low-mounted bottle cage bosses keep the centre of gravity low for confident cornering and stable handling, even with a full water bottle on board. Additional top-tube bosses let you carry a tool or spare tube, while a threaded BBX63 bottom bracket, 12mm x 148mm Boost rear dropouts, and SRAM UDH compatibility round out a frame that's built to perform.
Weatherproof & low-maintenance

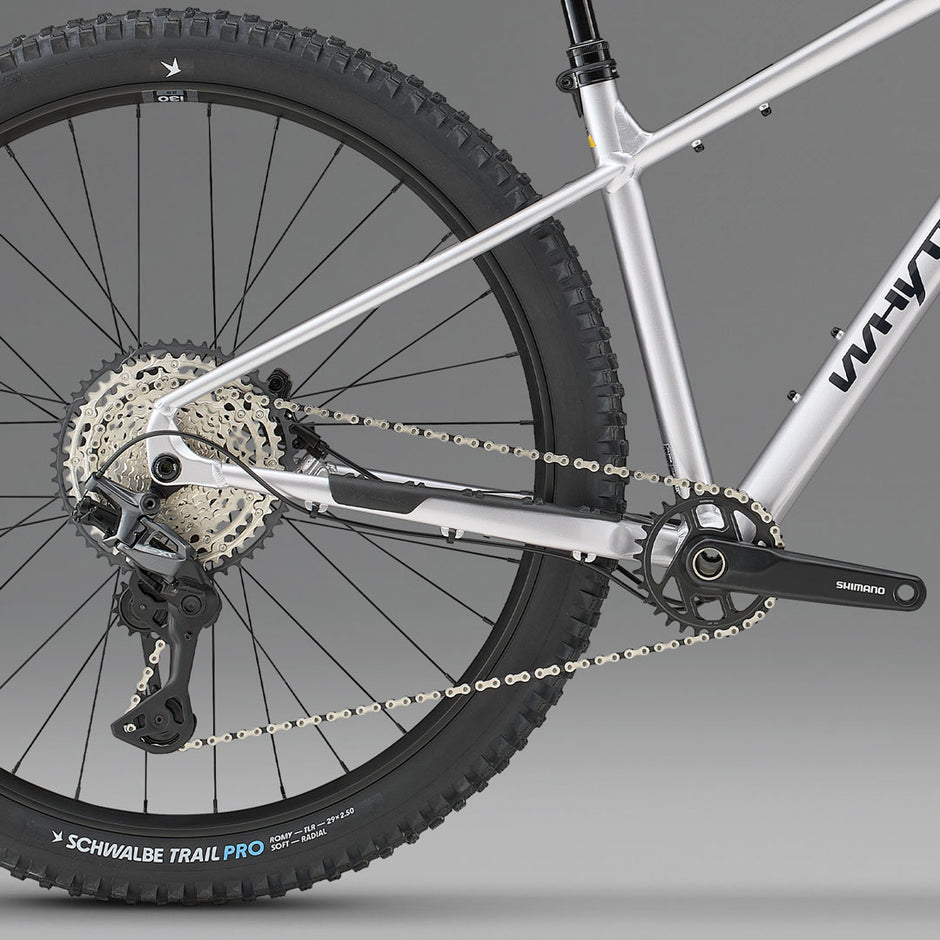

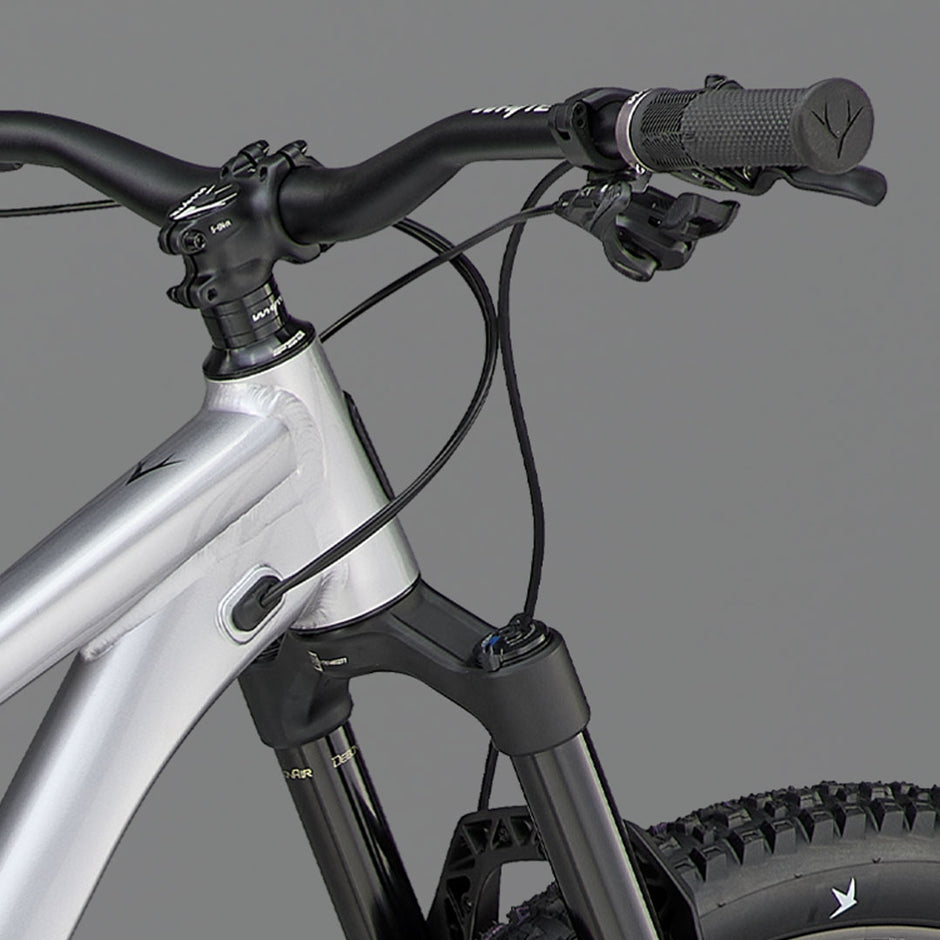

Built for the long haul, the Whyte Secta RSX is loaded with weatherproofing and practical features to keep it running brilliantly, ride after ride. External headtube cable routing with fully sealed cable runs and weather-sealed cable ports makes maintenance easy and extends component life. A weather-sealed seat post collar adds further protection against water and muck. Thanks to a big-tyre-friendly, single chain ring frame design, there's clearance for up to a 29x2.6in rear tyre with ample mud room – so you can run bigger rubber when you need it. A custom chainstay protector guards the frame against chain slap for a quieter ride.
Specifications
| COLOUR | Raw silver (gloss) | CASSETTE | Shimano M7200-12, 10-51T, 12 speed |
|---|---|---|---|
| FRAME | 6061-T6 aluminium, multi-shaped tubing; Single Chain Ring (SCR) 1x-specific design; 1.125–1.5in tapered Zero-Stack headtube; full 300mm reamed depth 30.9mm seat tube; Post Mount 180mm disc dropout; SRAM UDH spec derailleur hanger; 12mm x 148mm Boost. | CHAIN | KMC X12 with Quick-Link, 120 links |
| FORK | RockShox Pike Select 29in, 130mm travel, 44mm offset, DebonAir, Fast Black coating, adjustable compression and rebound, tapered steerer, 110mm x 15mm Boost, Maxle Stealth | CRANKSET | Shimano MT620, 30T, 165mm, 55mm chainline |
| REAR SHOCK | N/A | BOTTOM BRACKET | Shimano SM-BB52, 68/73mm |
| HEADSET | FSA No. 57B Orbit ZS, 1 1/2in lower and 1 1/8in upper caged bearings | SEATPOST | TranzX +RAD adjustable dropper post, 30.9mm, frame size specific drop (size S 150mm drop; size M 170mm drop; size L-XL 200mm drop) |
| REAR HUB | Alloy, double sealed cartridge bearings, 12mm x 148mm Boost spacing, 32 hole, MS freehub | SEAT | WTB Solano |

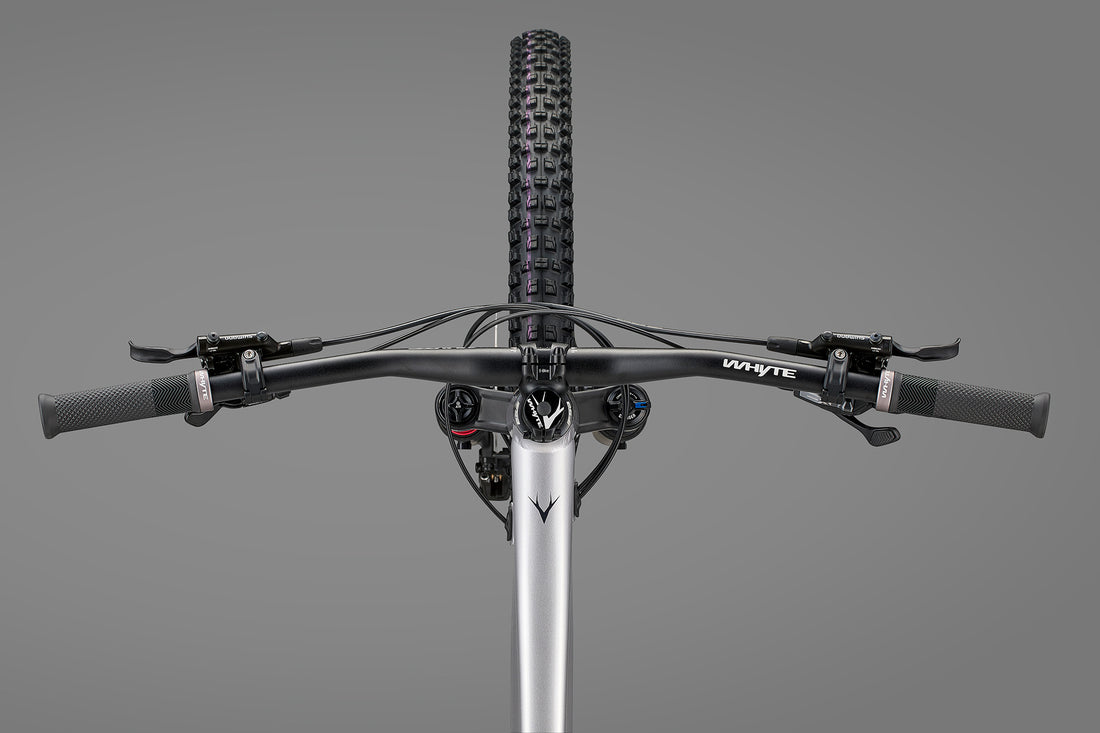

| FRONT HUB | Alloy, 15mm x 110mm Boost spacing, 28 hole | BAR | Whyte 6061 alloy, 30mm rise, 31.8mm bar bore, 780mm wide |
| SPOKES | 2.0mm, black stainless, brass nipples | STEM | Whyte alloy, 35mm extension, 31.8mm bar bore |
| RIMS | WTB KOM Team, 30mm internal width, tubeless compatible, 32 hole rear, 28 hole front | GRIPS | Whyte Enduro lock-on |
| TYRES | Schwalbe Albert Trail, Radial, Tubeless, 29in x 2.5in, front; Schwalbe Romy Trail, Radial, Tubeless 29in x 2.5in, rear | BRAKES FRONT | Shimano MT620 four piston hydraulic disc brakes with 180mm rotors |

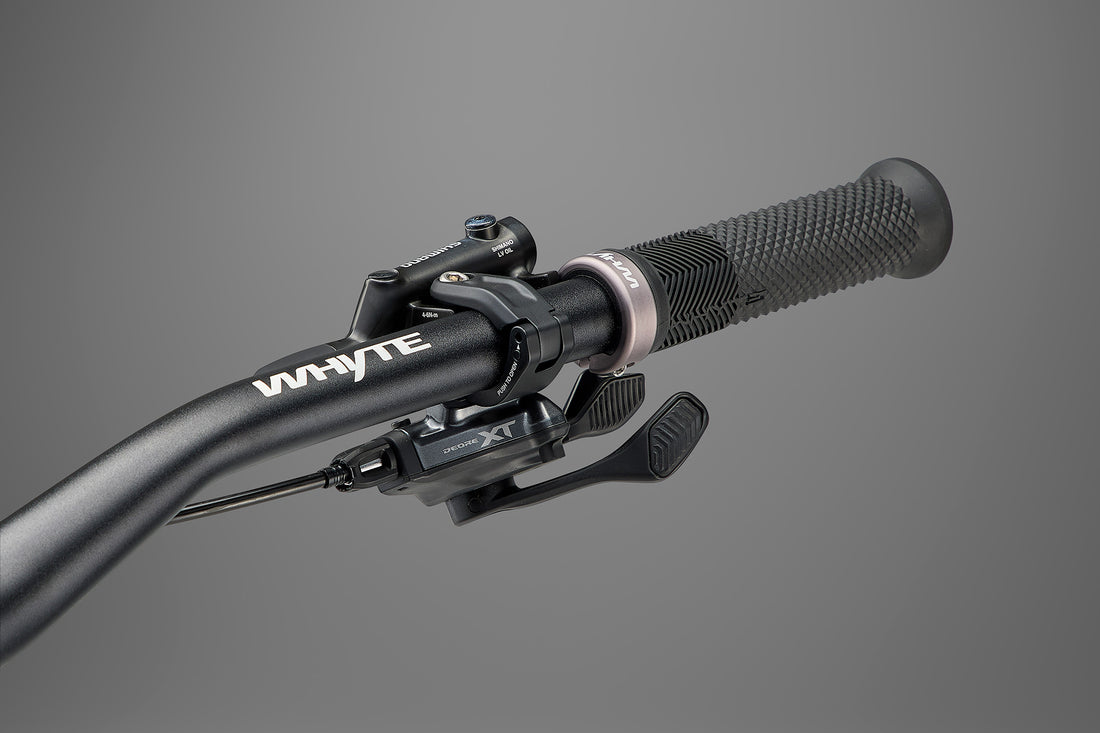

| SHIFT LEVERS | Shimano XT M8200, 12 speed, I Spec EV | BRAKES REAR | Shimano MT620 four piston hydraulic disc brakes with 180mm rotors |
| FRONT MECH | N/A | BRAKE LEVERS | Shimano MT620 |
| REAR MECH | Shimano XT M8200, 12 speed | PEDALS | Fibre reinforced composite platform |
| WEIGHT | TBC |
Although we've taken every effort to ensure the accuracy of the information listed here sometimes things change so we reserve the right to change or update bike specifications, features, prices and colours as and when required.
Geometry
| FRAME SIZE | Small | Medium | Large | Extra Large |
| A - REACH (mm) | 420 | 445 | 470 | 495 |
| B - STACK (mm) | 644 | 652 | 662 | 671 |
| C - HEAD ANGLE (° degrees) | 63.5 | 63.5 | 63.5 | 63.5 |
| D - SEAT ANGLE (° degrees) | 75.5 | 76 | 76.5 | 77 |
| E - BB HEIGHT (mm) | 298 | 298 | 298 | 298 |
| F - WHEELBASE (mm) | 1187.4 | 1215.1 | 1246.4 | 1275.9 |
| G - REAR CENTRE (mm) | 443.4 | 443.4 | 443.4 | 443.4 |
| H - STANDOVER HEIGHT (mm) | 750 | 760 | 770 | 780 |
| I - SEAT TUBE LENGTH (mm) | 395 | 420 | 445 | 470 |
| J - HEAD TUBE LENGTH (mm) | 105 | 114 | 125 | 135 |
