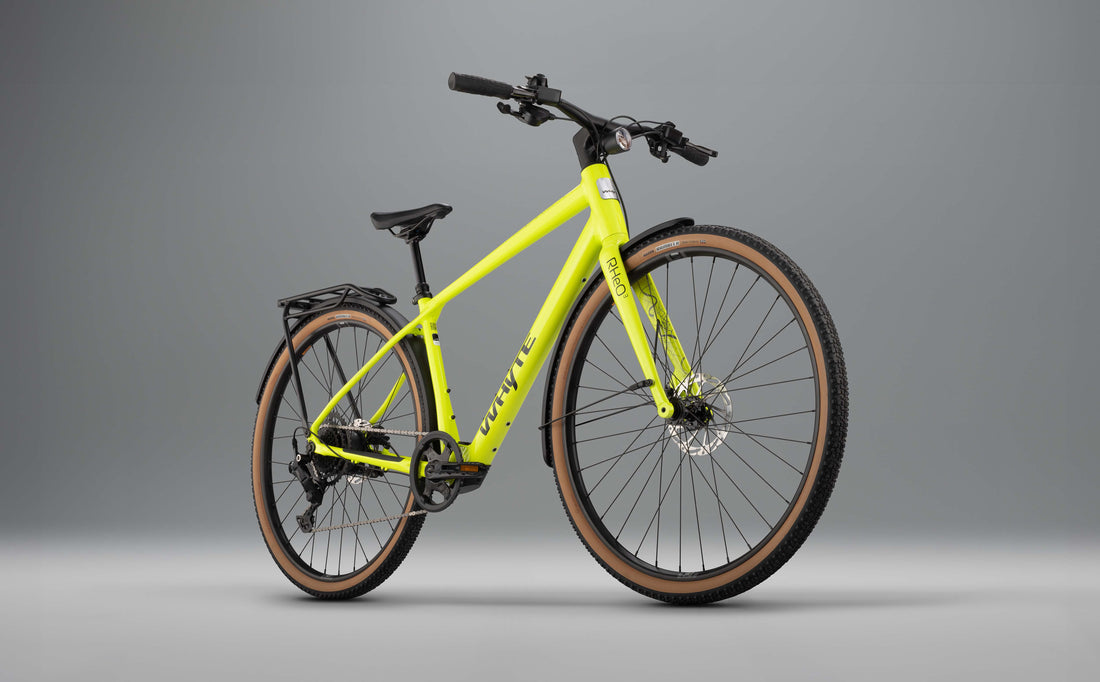

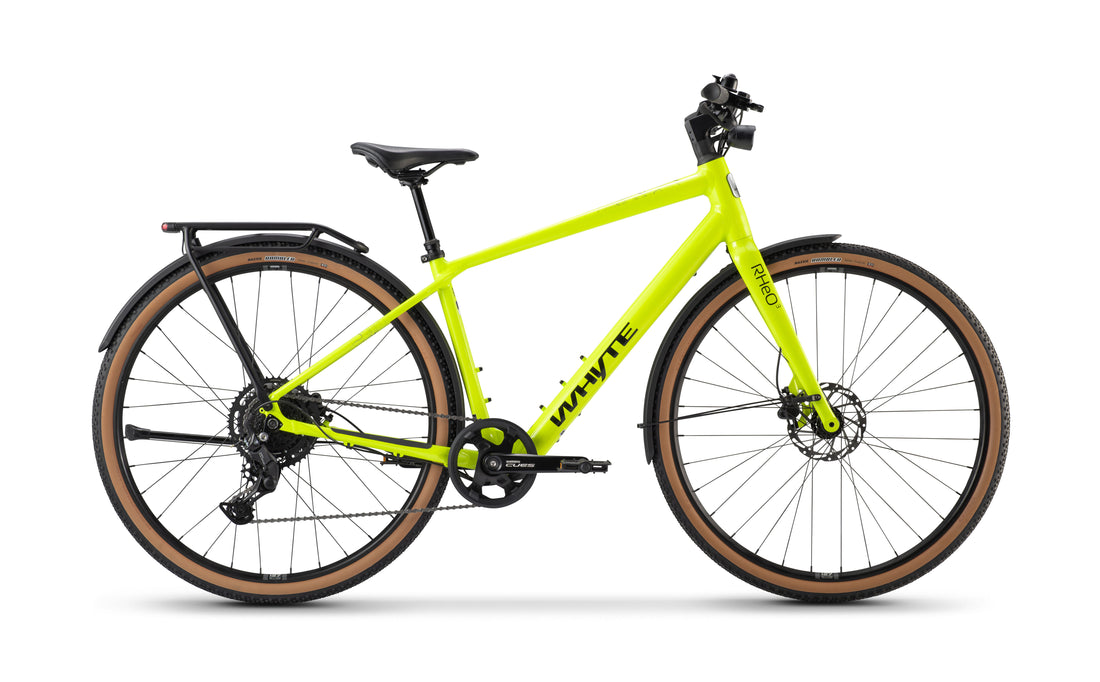

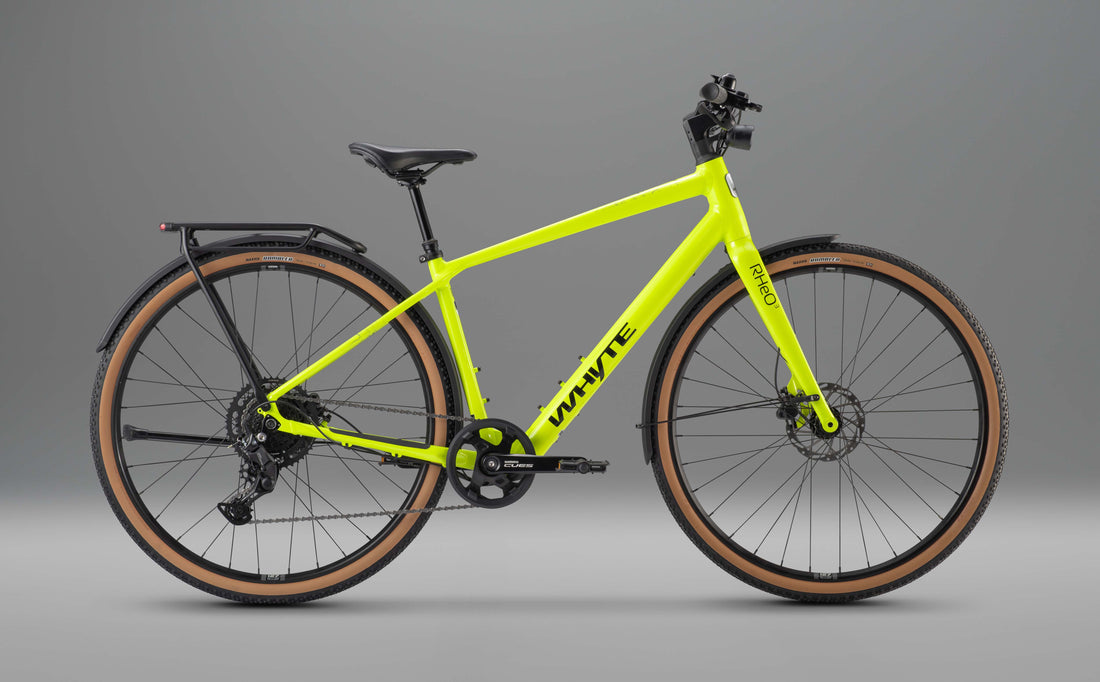

RHeO 3
eCity and leisure bike

£2,299.00 Sale Save
Size
Size guide

QUANTITY



Ready for everything, every day

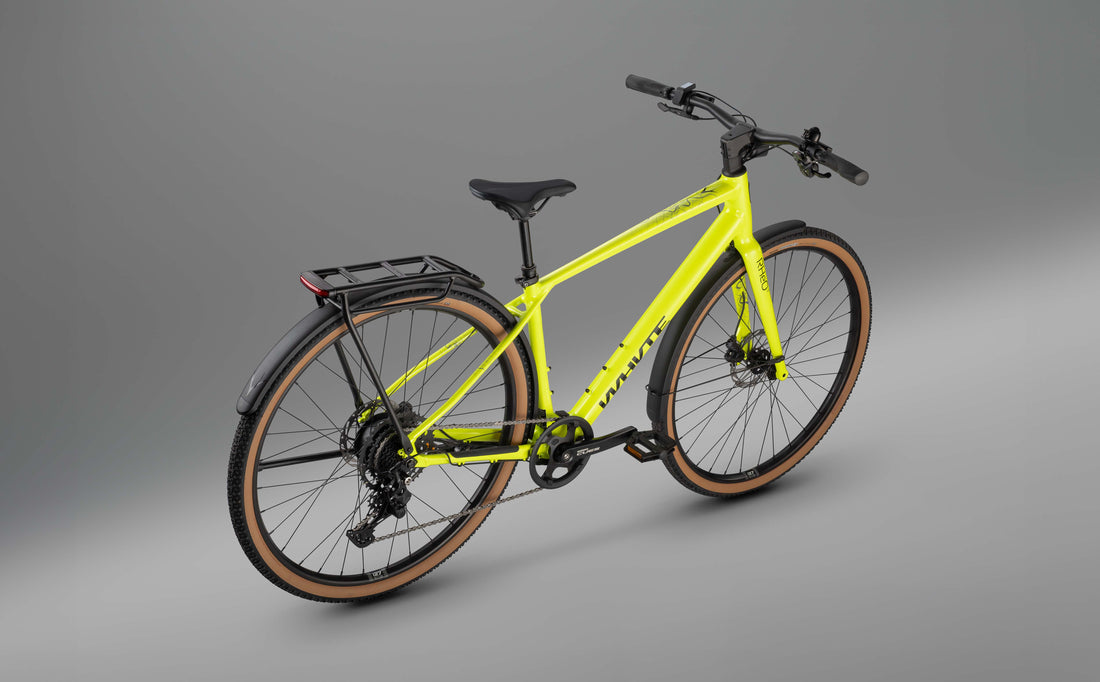

Lightweight, comfortable and capable, our top of the range fully-equipped RHeO 3 ebike is ready for everything your everyday demands.

The powerful hub motor delivers three levels of support to flatten any hill, and the 250Wh internal battery delivers plenty of range. So whether you're commuting, riding to the coffee shop, popping to the shops, or pedalling for pleasure, RHeO 3 will help you flow wherever you choose with ease.

Highlights
– Lightweight aluminum frame and fork for easy pedalling and carrying.
– Kynamic hub motor with 450W of peak power and 45Nm torque + 250Wh internal battery deliver you the power and range to ride further and faster.
– Optimised low centre of gravity – by placing the motor battery and weight as low as possible – gives you sure-footed, confident handling.

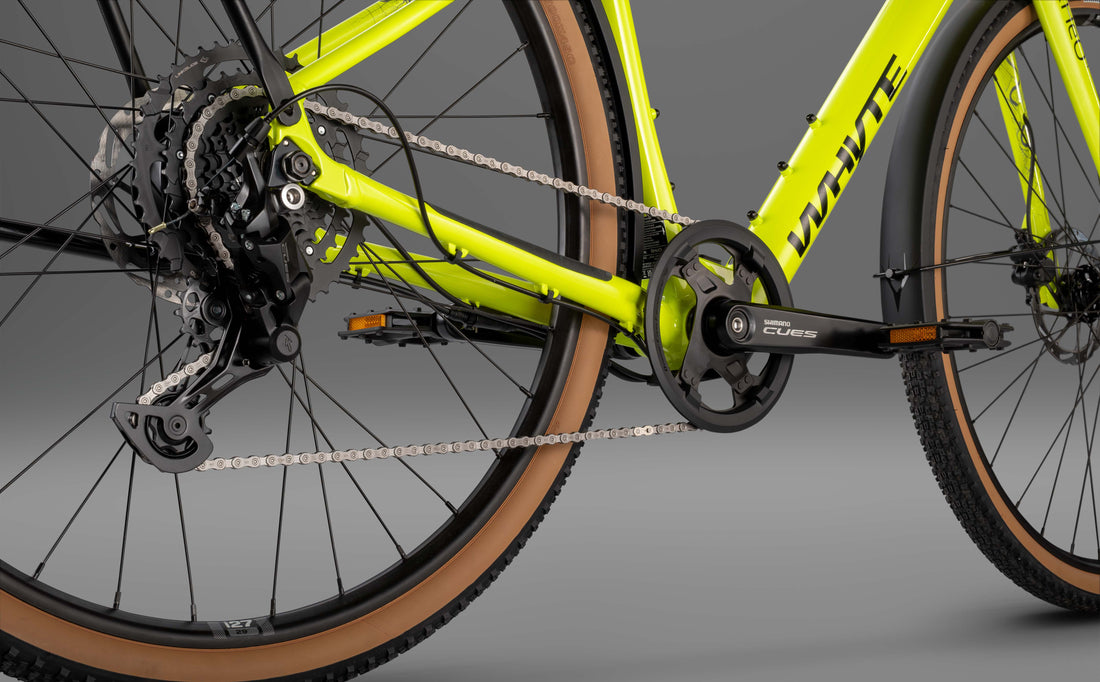

– Easy to use ebike-specific nine-speed Shimano Cues transmission gives you the gearing to ride everywhere easily.
– Fast-rolling and wide high volume tyres let you flow smoothly and comfortably along even the roughest streets.

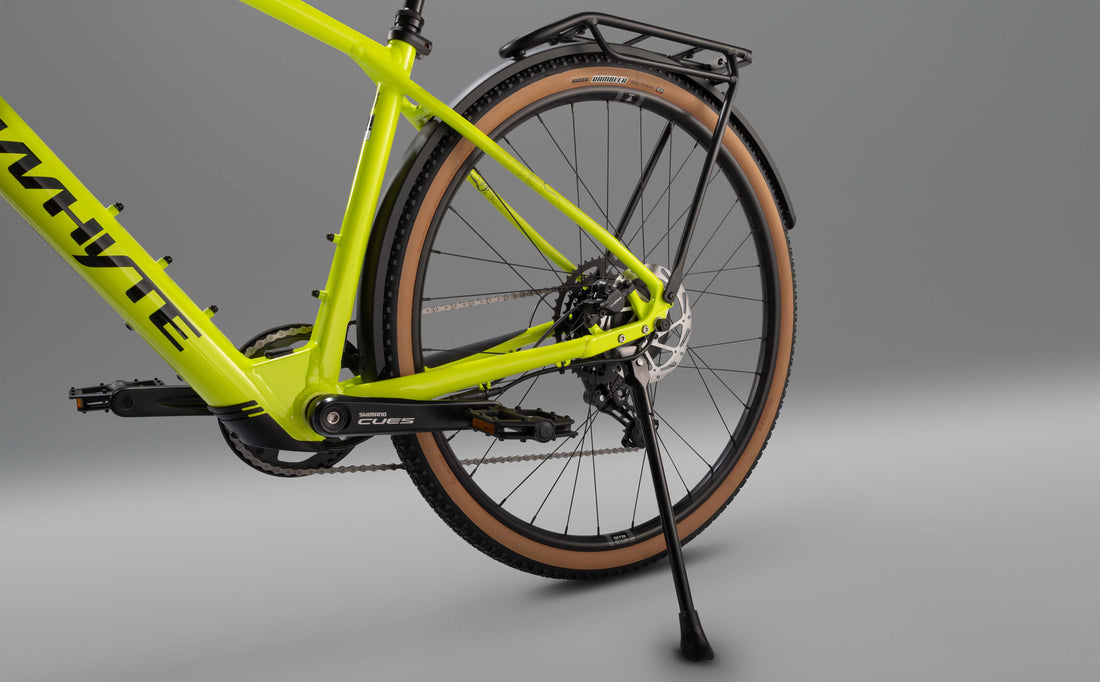

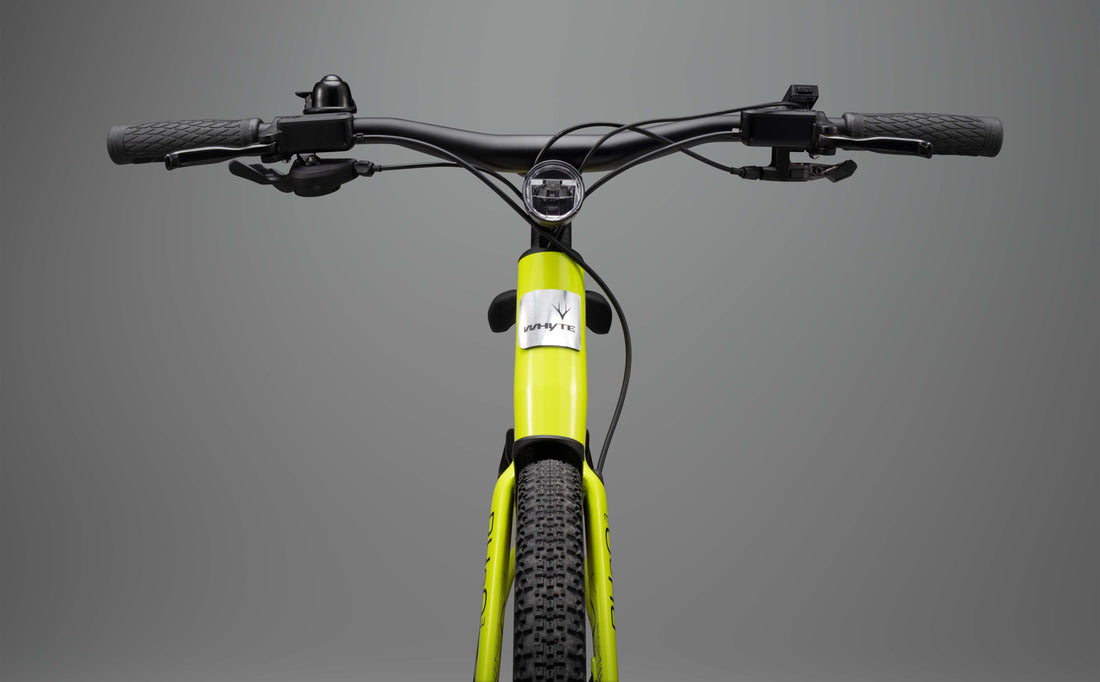

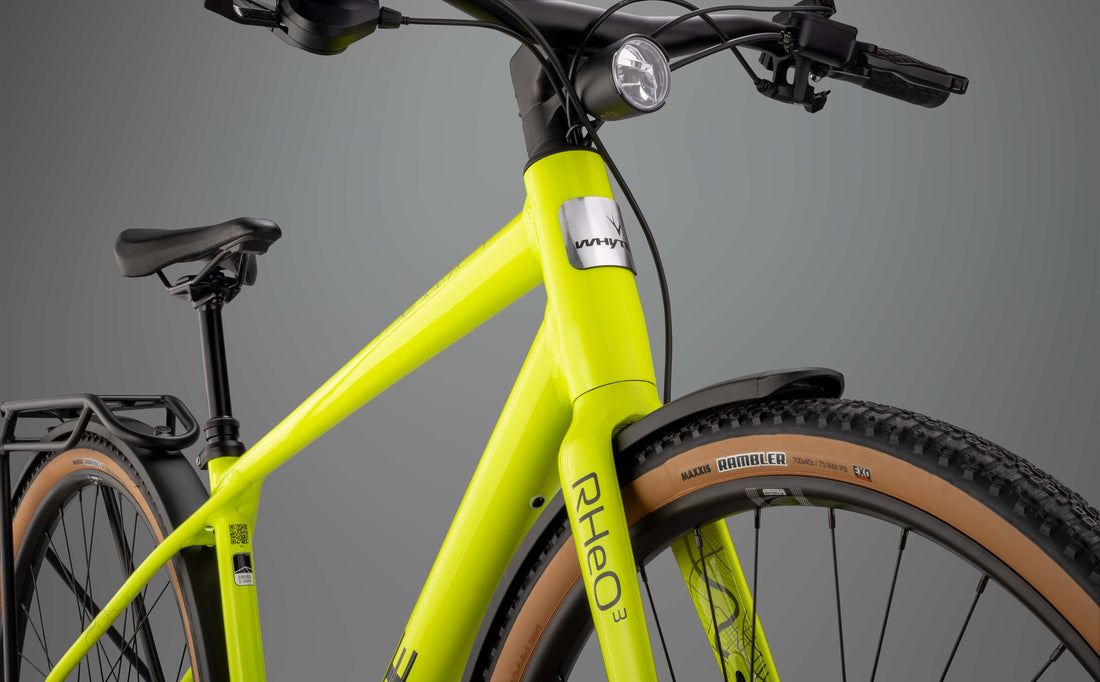

– Fully equipped and ready for everything with integrated front and rear lights, alloy mudguards, rear storage rack, 'dropper' seatpost, and kick-stand.

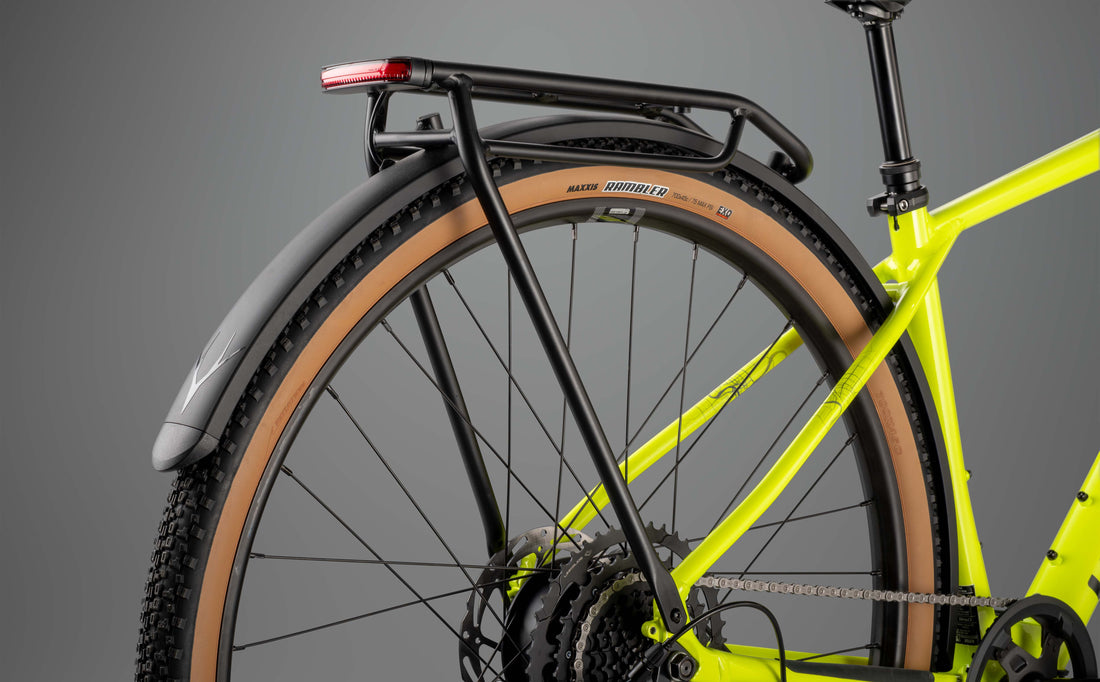

– Our pannier rack is compatible with Ortlieb, Topeak, Altura and all major pannier brands. Our recommendation and pictured above is the Ortlieb Back-Roller Plus.

Stylishly practical
We’ve also designed the RHeO 3 to be your perfect partner for daily life and loaded it with the equipment to help you breeze through it all: tough alloy rack, full mudguards, a ‘dropper’ seatpost let's you raise and lower the saddle as you need for easy on- and offs, and built-in lights powered from the main battery so you'll always be able to see – and be seen. Weighing just 17.2kg (size L) it's also easy to lift and live with, too.

Charge time: 3.5hrs from empty
Range: 20–65km*

*maximum range, based on continuous use of level 3 (highest)/or level 1 (lowest) support by an 80kg rider on an unladen RHeO ebike riding mixed, hilly terrain (650m of elevation gain, level 3 (highest support)/1,190m of elevation gain, level 1 (lowest support)).

Snow
Forest

Specifications

COLOUR Gloss lime CASSETTE Shimano Cues, 9 speed, 11-46T

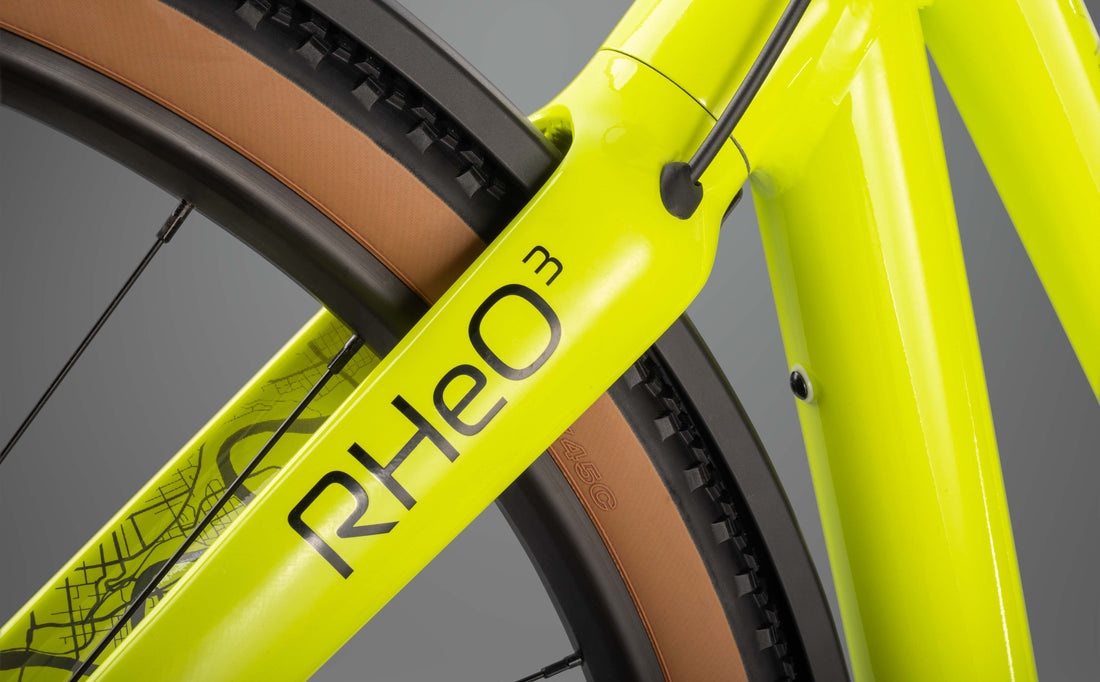

FRAME 6061 alloy, hydroformed T6 aluminium, multi-butted, tapered head tube, internal cable routing and custom Whyte dropouts, chain stay kick stand mount CHAIN Shimano Cues 9 speed
FORK Whyte straight bladed 6061 alloy, alloy tapered steerer, internal cable routing, 12mm thru-axle, Post Mount with single eyelets for mudguards CRANKSET Shimano Cues 9 speed, 170mm, 40T chainring, with chain guard
REAR SHOCK N/A BOTTOM BRACKET Kynamic BSA, square taper, 122.5mm, with torque sensor

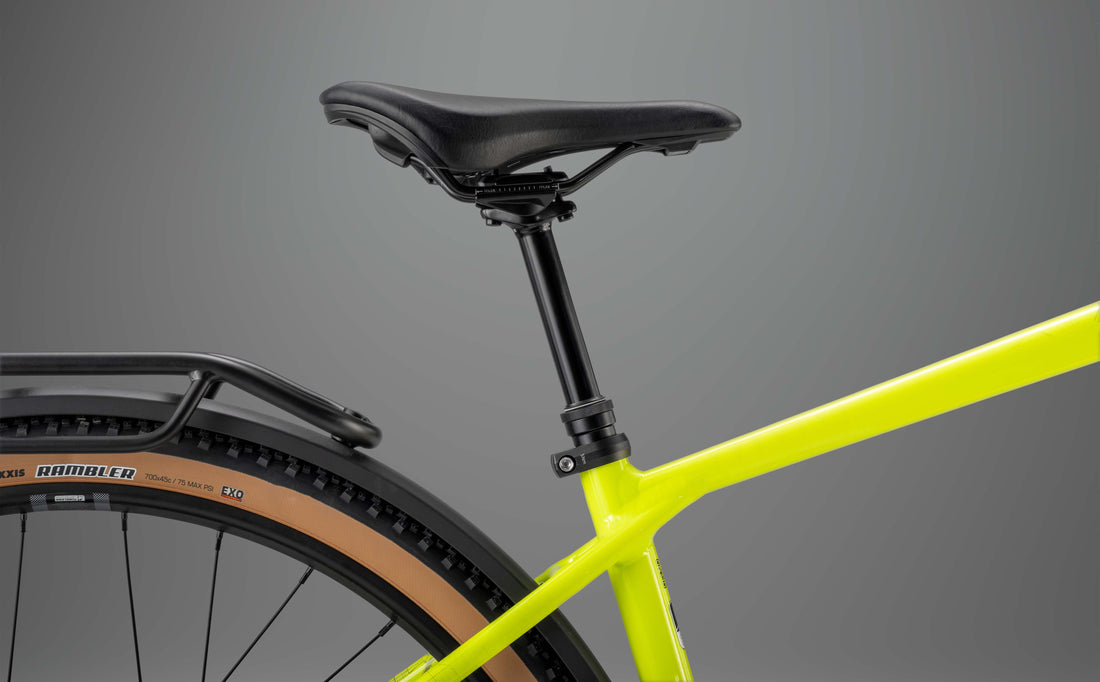

HEADSET No. 69 SRS, 1-1/8in upper and 1.5in lower with sealed catridge bearings and front entry for cables SEATPOST Whyte dropper post, 100mm drop
REAR HUB Kynamic 250W, 36V, 45Nm 142mm power hub with replaceable freehub, 32 hole SADDLE Whyte Custom
FRONT HUB Alloy, double sealed cartridge bearings, 12mm x 100mm thru-axle, 32 hole HANDLEBAR Whyte one piece bar and stem: 50mm extension, 720mm width, 20mm rise, seven degree backsweep, four degree upsweep
SPOKES 2.0mm, PG, black stainless, brass nipples STEM N/A
RIMS WTB STp I27 rims, 32 hole GRIPS Whyte Custom dual density lock-on

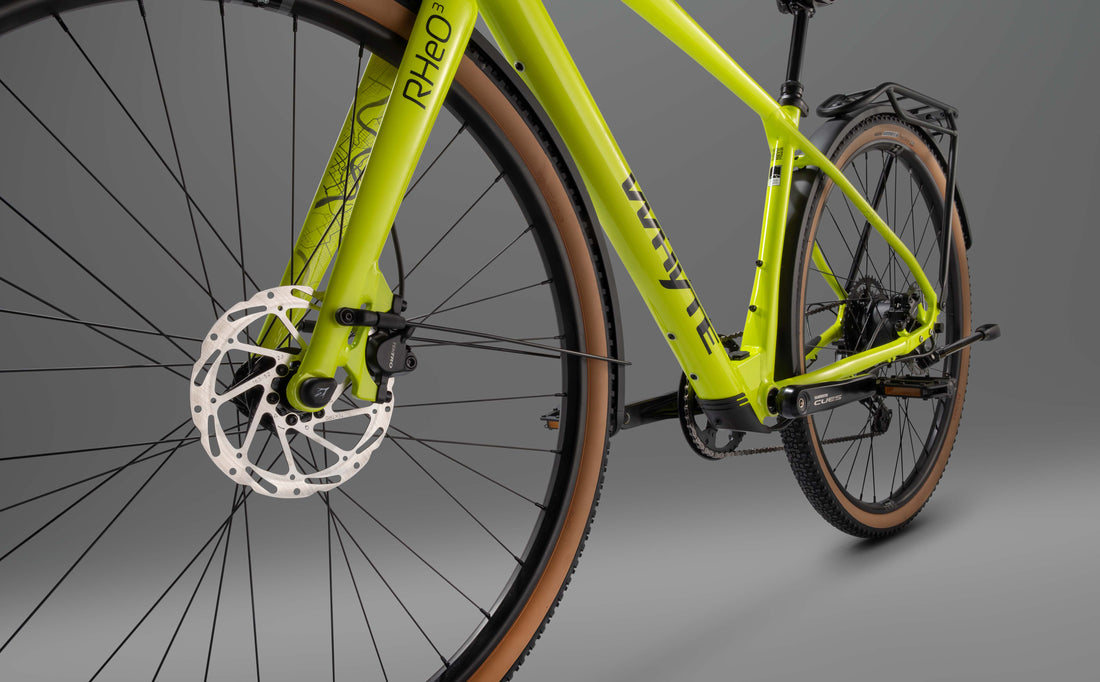

TYRE Maxxis Reaver Tanwall 700 x 45c, EXO wire bead BRAKES FRONT Tektro T3020 hydraulic, 1.8mm thick 180mm diameter disc rotor
SHIFT LEVERS Shimano Cues 9 speed Rapidfire BRAKES REAR Tektro T3020 hydraulic, 1.8mm thick 180mm diameter disc rotor

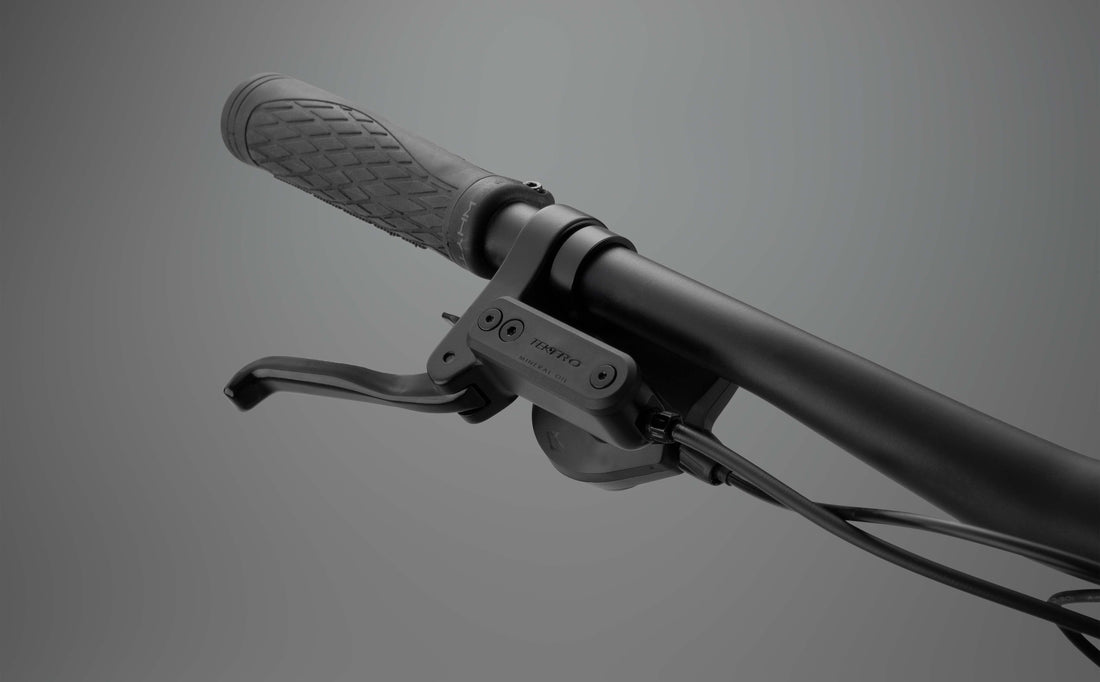

FRONT MECH N/A BRAKE LEVERS Tektro T3020 Clean Sweep Design, three finger comfort lever
REAR MECH Shimano Cues 9 speed, Shadow Design and direct attachment PEDALS Fibre reinforced composite platform
WEIGHT 16.9kg (size M)

Although we've taken every effort to ensure the accuracy of the information listed here sometimes things change so we reserve the right to change or update bike specifications, features, prices and colours as and when required.

Geometry

GEOMETRY
FRAME SIZE Small Medium Large Extra Large
A - REACH (mm) 415 435 450 475
B - STACK (mm) 580 599 618 637
C - HEAD ANGLE (° degrees) 69 69 69 69
D - SEAT ANGLE (° degrees) 74.5 74.5 74.5 74.5
E - BB HEIGHT (mm) 278 278 278 278
F - WHEELBASE (mm) 1076 1103 1132 1174
G - REAR CENTRE (mm) 442.5 442.5 442.5 452
H - STANDOVER HEIGHT (mm) 743 767 790 814
I - SEAT TUBE LENGTH (mm) 400 430 460 490
J - HEAD TUBE LENGTH (mm) 145 165 185 205
