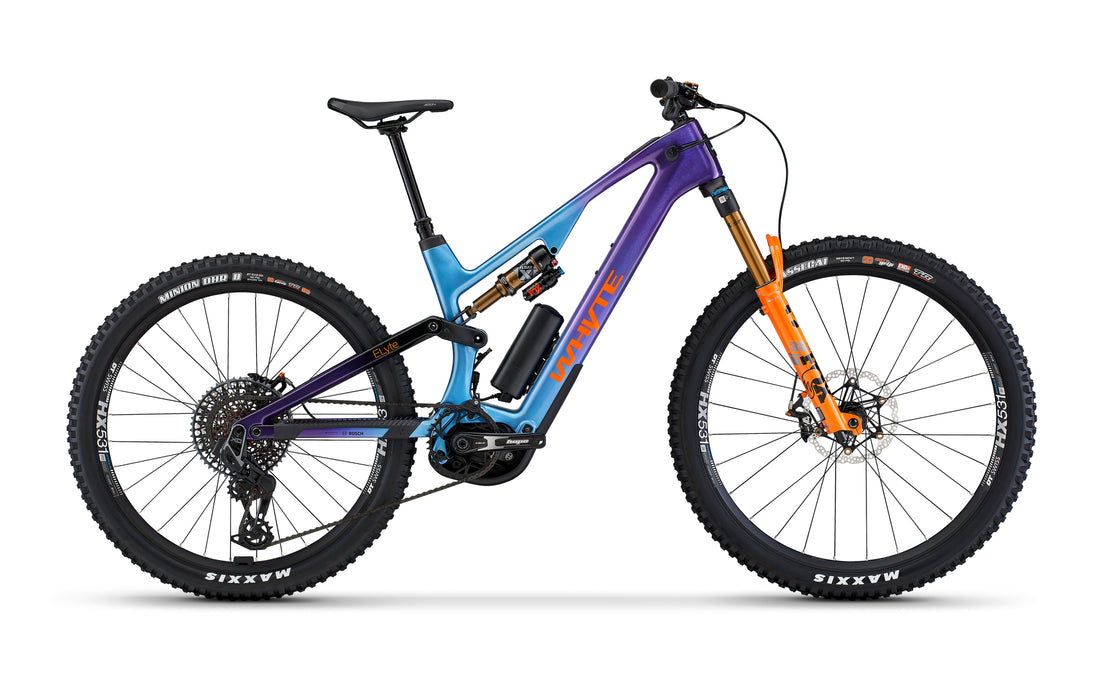

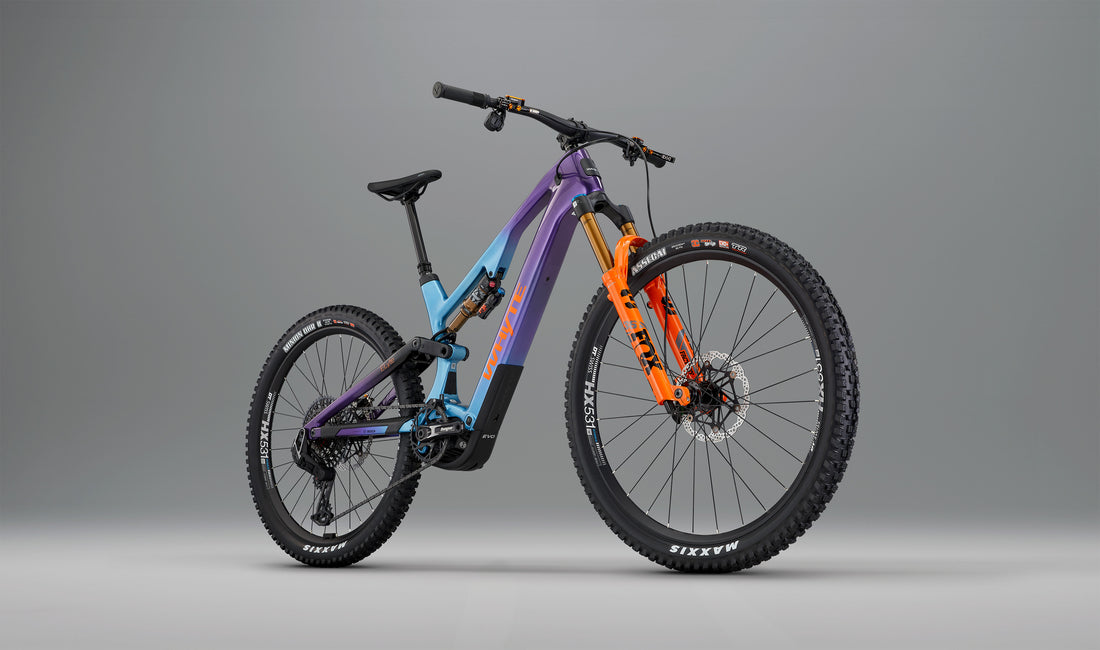

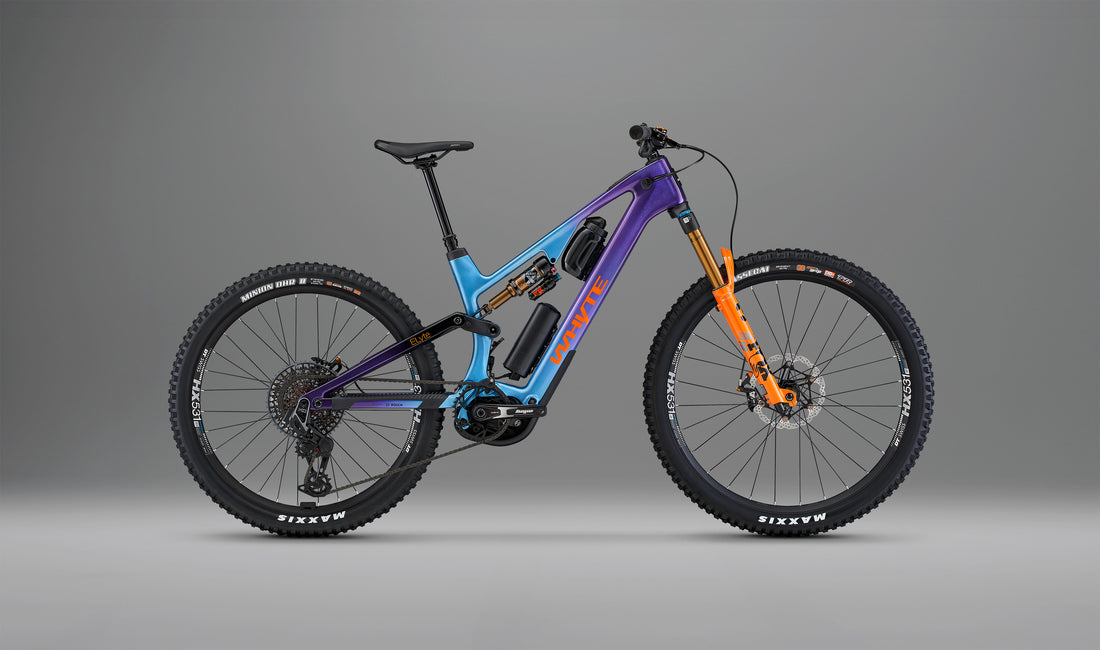

ELyte EVO Stag Works
Trail/enduro electric mountain bike
"The mid-travel e-bike to which all others will be measured."
Head turning, mind blowing
Our top of the range ELyte EVO Stag Works is the dream bike of our design and engineering team, made real for you: full-power (600W), full-torque (85Nm) – all the time – so you can make the most of your precious time. With a full carbon frame, our lowest centre of gravity ever for the finest, most capable handling, mixed (MX) wheels (29er front, 27.5in rear), and the latest Bosch CX motor, ELyte EVO Stag Works delivers the very best mountain bike handling and ride feel with full-power capability so you can get more out of every ride.
Highlights
– 150mm front + 142mm rear of custom-tuned suspension travel.
– Uni-directional carbon fibre frame is light and reassuringly strong.
– Bosch's new Performance Line CX full-torque (85Nm), full-power (600W) motor.
– 650Wh of combined battery (400Wh internal + 250Wh PowerMore range extender) so you can ride further.
– MX wheels (29er front, 27.5in rear) so you can tackle the techiest terrain.
– 492.28mm complete bike centre of gravity for the best handling possible.
No compromises, no half measures

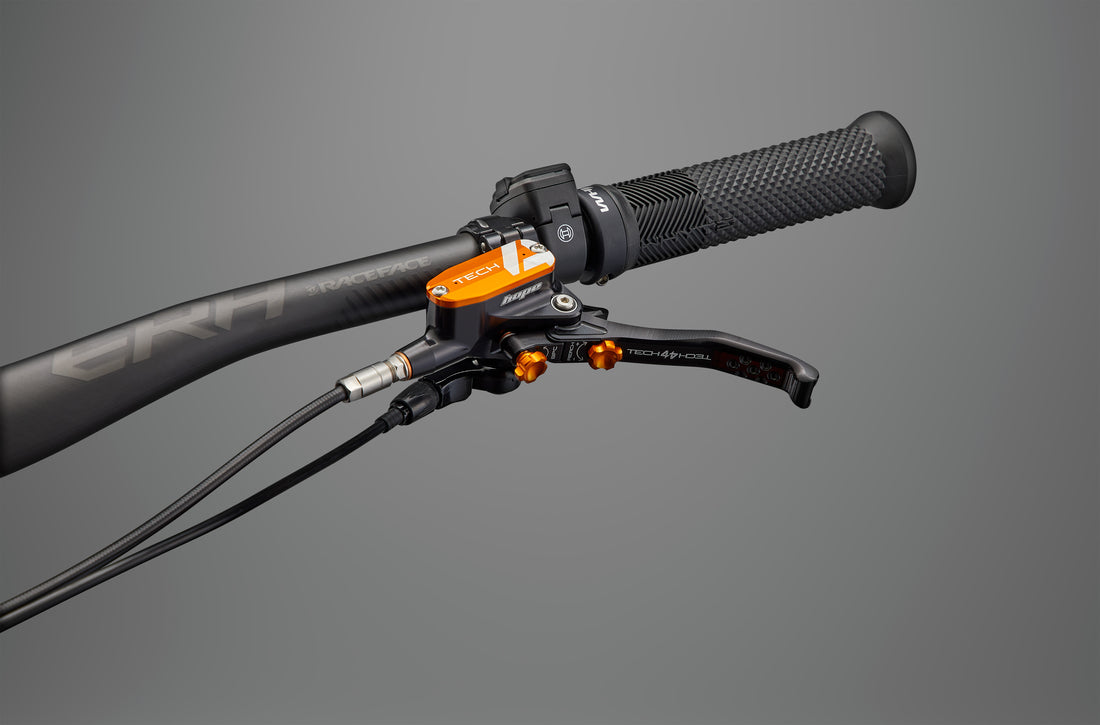

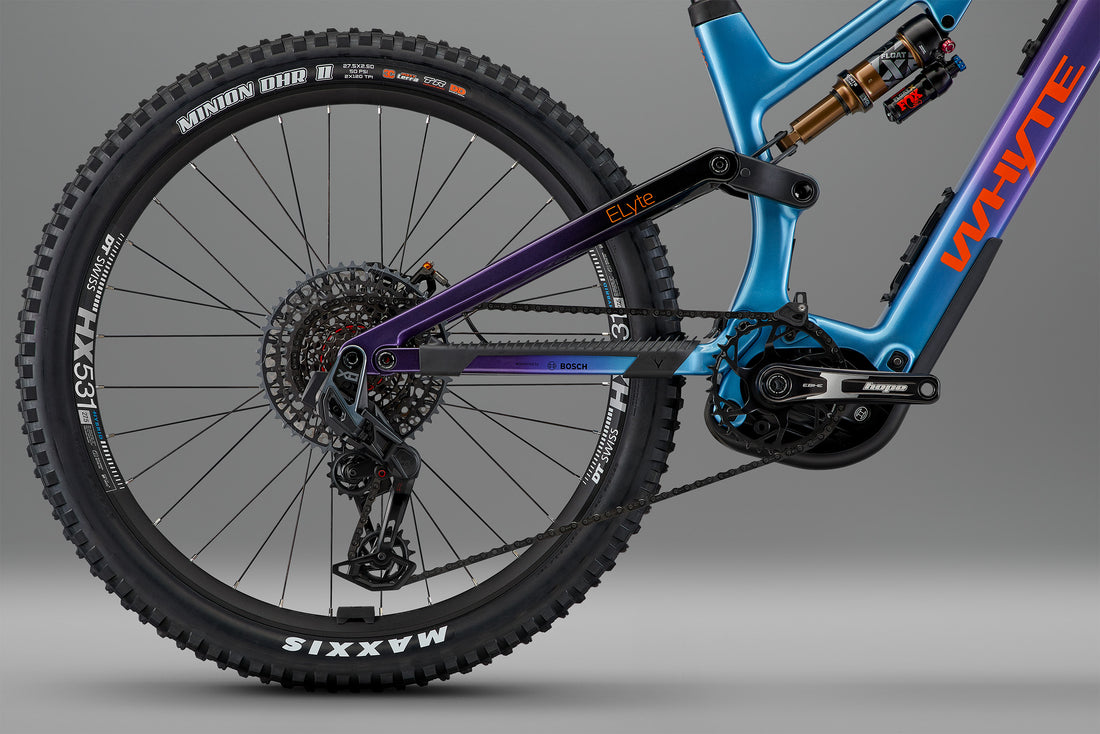

The ELyte EVO Stag Works is specced to perform flawlessly from the shop floor so you can focus on what really matters: getting the most from your ride. Top-shelf Fox Factory suspension front and rear tames the roughest trails with ease; SRAM's XO T-Type AXS electronic gearing gives you reliably impeccable shifting performance; richly powerful Hope Tech 4 V4 four-piston hydraulic disc brakes deliver the ultimate in braking control; Hope cranks and hubs; traction-rich Maxxis tyres; and more. It’s the finest trail-proven kit to serve you perfectly, wherever and however hard you ride.
Charge time: 50% in 1.5hrs from empty, and to 100% in 3.5hrs.
ELyte EVO Stag Works: full-torque, full-power – all the time.
Our lowest centre of gravity ever
The beating heart of the ELyte EVO Stag Works is a lightweight yet strong carbon fibre chassis that carefully packages Bosch's powerful Performance Line CX full-torque (85Nm), full power (600W) motor – and the 400Wh internal battery – seamlessly together with the 250Wh PowerMore range extender. All to achieve the lowest centre of gravity of any eMTB we’ve ever made (492.28mm off the ground) and deliver you the finest handling and most confidence-inspiring ride in every situation – whether you’re running the PowerMore or not.
Refined Bosch performance and reliability
Bosch’s all-new Performance Line CX full-torque (85Nm), full-power (600W) motor is quieter, lighter, and even more refined than ever before. Delivering up to 340% support – that’s 3.4x you – even at low cadences, it offers the best balance of power, control and range to help get the most from your riding. Add in Bosch’s market-leading reliability, a global network of service centres, and the companion eBike Flow app which lets you get even more from your riding, and you’re all set to ride like a Bosch.

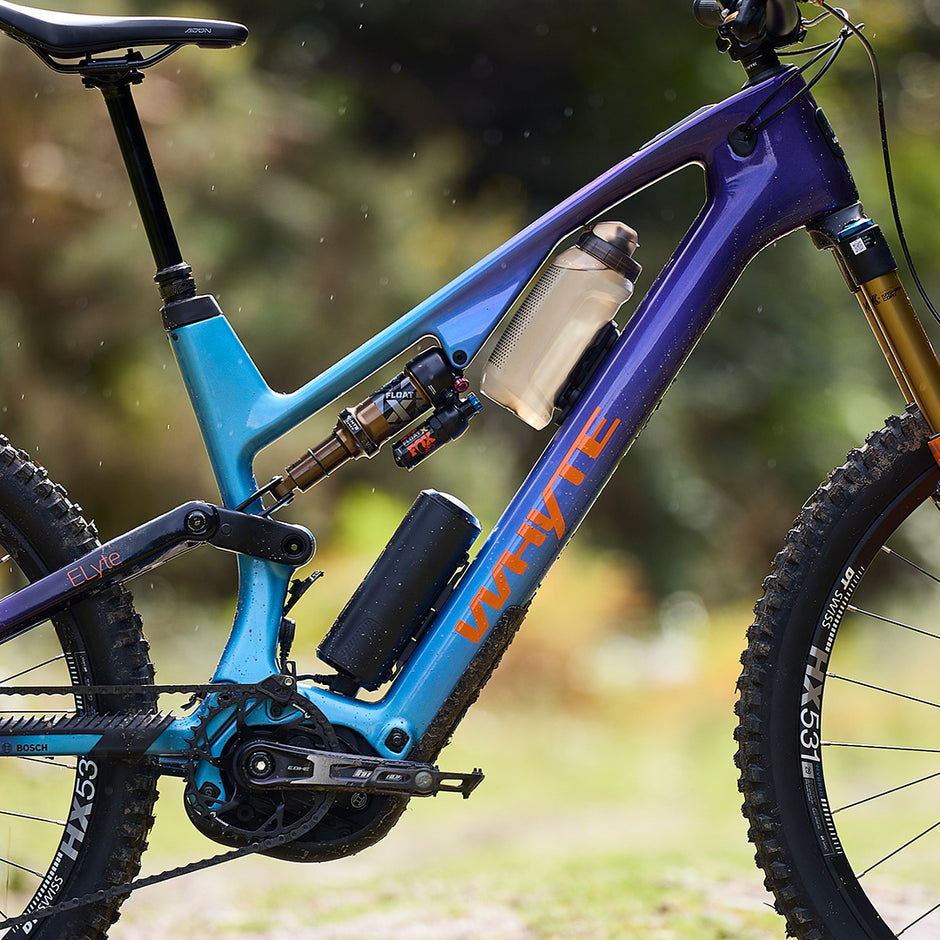

Have your bike, your way

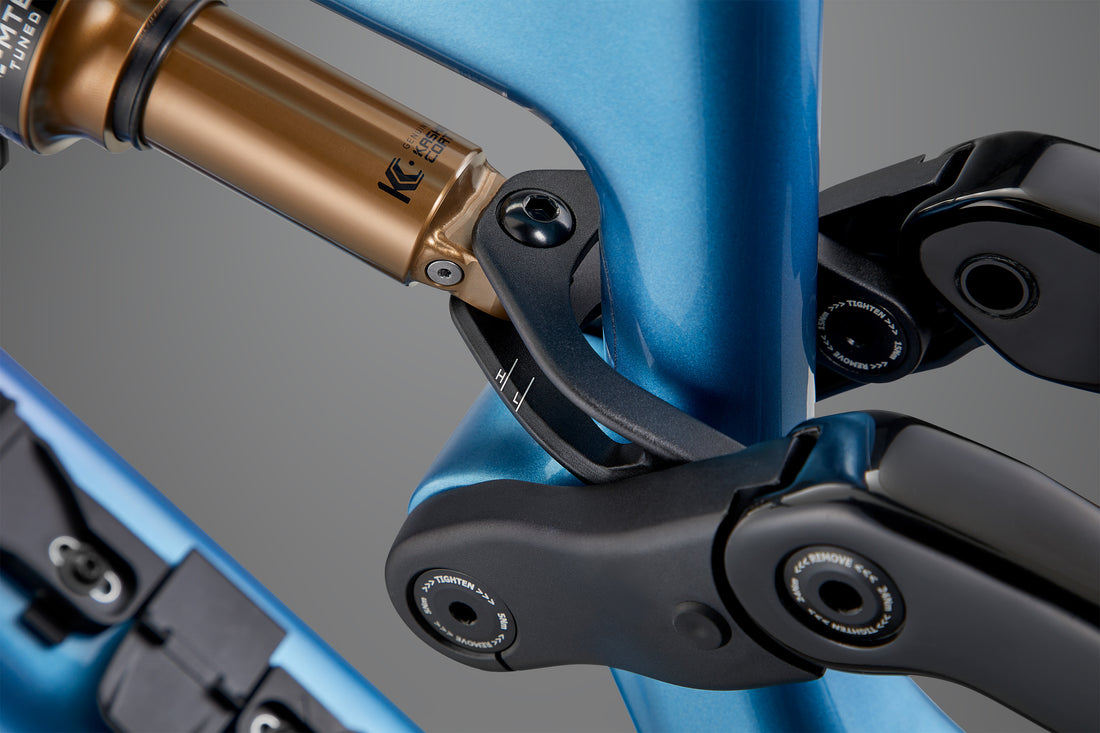

Want more or less battery? It comes with Bosch’s 250Wh PowerMore range extender – that mounts in the lower bottle boss position – so you can choose to run just the 400Wh internal battery for 'power-hour' rides, or a with the PowerMore and take on longer rides with a combined 650Wh of battery capacity . Want to run a bottle, or even two? The frame has two bottle positions: a lower for a full 750ml bottle (using the included bottle cage adaptor), and a higher Fidlock position for a smaller 400ml bottle (on sizes M-XL) – even with the PowerMore in place. Want to slacken the geometry out? The ‘Shape.it Link’ geometry adjustment lets you change between the stock high to its low setting for a lower, slacker geometry for more downhill grins.
"An amazing e-bike."
Specifications
| COLOUR | Gloss blurple fade | CASSETTE | SRAM XS 1295, T-Type, 10-52T, 12 speed |
|---|---|---|---|
| FRAME | Uni-directional carbon mainframe and seatstays, tapered head tube, ISCG 2 guide mounts, internal cable routing, Shape.it Link V2 and 12mm x 148mm Boost dropouts | CHAIN | SRAM XO T-Type, 12 speed |
| FORK | Fox Float 36 Factory 29in, 150mm travel, 44mm offset, Grip X2 damper, tapered steerer, 110m x 15mm Kabolt axle | CRANKSET | Hope E-Bike Cranks, 155mm length, Bosch mounting, 36T chainring T-type |

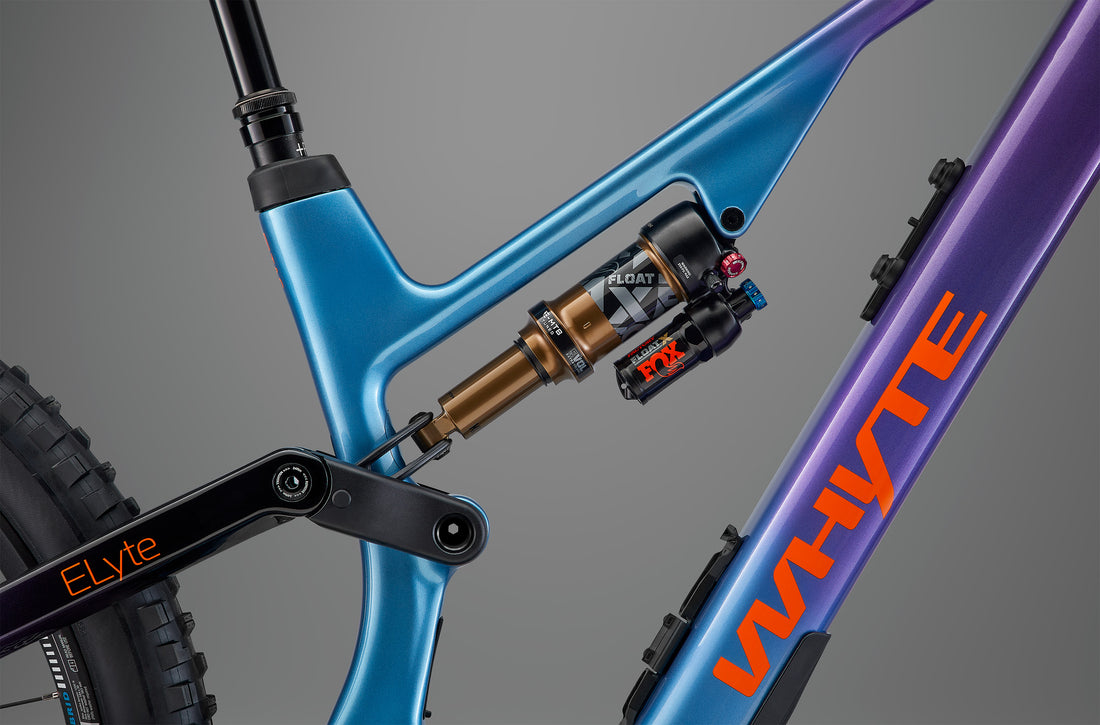

| REAR SHOCK | Fox Float X Factory Series, EVOL, lock out, 210mm x 50mm, custom tuned for Whyte | BOTTOM BRACKET | N/A |
| HEADSET | FSA No. 69/56/SRS, 1-1/8in upper and 1.5in lower with sealed angular contact bearing (ACB) cartridge bearings, with side entry internal routing | SEATPOST | Whyte drop.it II Adjust, 30.9mm (sizes S/M 140-170mm travel; sizes L/XL 170-200mm travel), MMX Paddle remote lever |
| REAR HUB | Hope Pro 5, six bolt, 12mm x 148mm Boost spacing, XD driver, 32 hole | SADDLE | Fizik Terra Aidon, 145mm wide, Wingflex, S-Alloy Mobius rail |
| FRONT HUB | Hope Pro 5, six bolt, 15mm x 110mm Boost spacing, 28 hole | HANDLEBAR | Race Face ERA Carbon, 20mm rise, 35mm bar bore, 800mm wide |
| SPOKES | DT Swiss Elemental | STEM | Whyte Trail full CNC, 32mm extension, 35mm bar bore |
| RIMS | DT HX531, 30mm Internal | GRIPS | Whyte Enduro lock-on |
| TYRE | Maxxis Assegai WT, TR, 29in x 2.5in 120TPI, EXO+ Sidewall Protection, 3C MaxxGrip, Dual Compound, folding bead, front; Maxxis Minion DHR 2 WT, TR, 27.5in x 2.5in 120TPI, Double Down Casing, 3C MaxxTerra, Dual Compound, rear | BRAKES FRONT | Hope Tech4 V4, four piston hydraulic, 200mm diameter floating disc rotor |

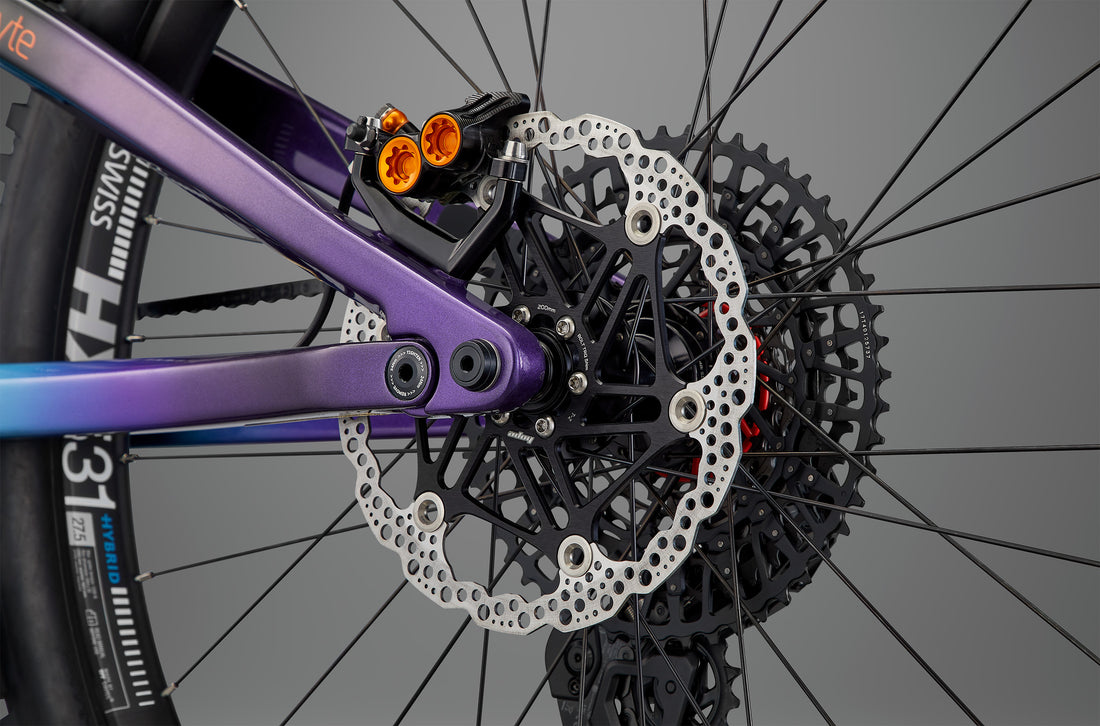

| SHIFT LEVERS | SRAM AXS Pod, right, MMX, 12 speed | BRAKES REAR | Hope Tech4 V4, four piston hydraulic, 200mm diameter floating disc rotor |
| FRONT MECH | N/A | BRAKE LEVERS | Hope Tech 4 |
| REAR MECH | SRAM XO T-Type AXS, 12 speed | PEDALS | Fibre reinforced composite platform |
| WEIGHT | 20.8kg (size M, with innertubes + without pedals or PowerMore) |
Although we've taken every effort to ensure the accuracy of the information listed here sometimes things change so we reserve the right to change or update bike specifications, features, prices and colours as and when required.
eBike Specifications
| DRIVE UNIT | Bosch Performance Line CX (Smart System) motor with 85Nm of maximum torque, 600W of peak power and 250W of nominal power. Features four power mode settings, including Tour+ and the automatic eMTB mode. |
|---|---|
| BATTERY | Bosch Compact PowerTube 400Wh, integrated within the downtube as the lowest point for stability and control. |
| RANGE EXTENDER | Bosch PowerMore 250Wh (included). |

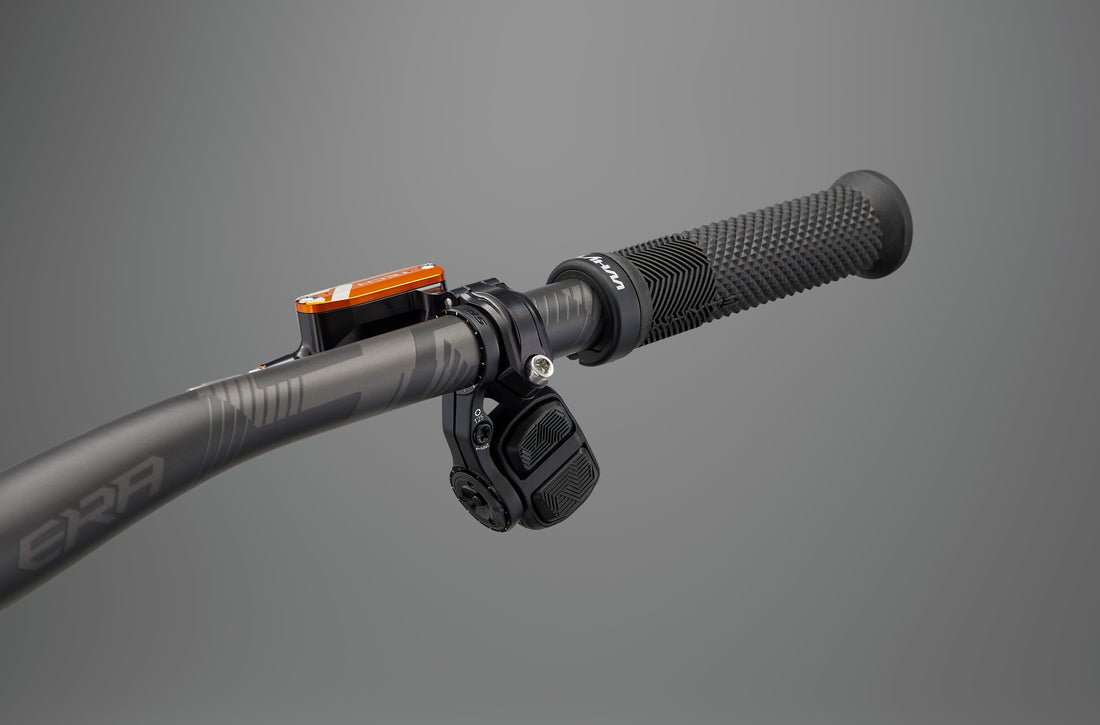

| DISPLAY | Bosch System controller mounted in the top tube, paired with discrete bar-mounted Mini Remote. Also connects to the Bosch eBike Flow smartphone app to give you even more insight and control at your fingertips. |
| CHARGER | 4A Compact Charger (230V). Charges to 50% in 1.5hrs, and to 100% in 3.5hrs. |
Please note: our custom motor covers are not currently compatible with the aftermarket Bosch eBike Alarm and Connect module to add bike tracking and alarm functionality to your Smart System bike
Geometry
| GEOMETRY | |||
|---|---|---|---|
| FRAME SIZE | Medium | Large | Extra Large |
| A - REACH (mm) | 456 | 481 | 506 |
| B - STACK (mm) | 640.5 | 652.3 | 663.2 |
| C - HEAD ANGLE (° degrees) | 64.6 (64) | 64.6 (64) | 64.6 (64) |
| D - SEAT ANGLE (° degrees) | 77.3 | 77.1 | 76.9 |
| E - BB HEIGHT (mm) | 341.9 (333.9) | 341.9 (333.9) | 341.9 (333.9) |
| F - WHEELBASE (mm) | 1242.1 | 1272.6 | 1302.7 |
| G - REAR CENTRE (mm) | 450.4 | 450.4 | 450.4 |
| H - STANDOVER HEIGHT (mm) | 741 | 741 | 741 |
| I - SEAT TUBE LENGTH (mm) | 420 | 445 | 470 |
| J - HEAD TUBE LENGTH (mm) | 127 | 140 | 152 |
