£10,999.00 Sale Save
Size
Size guide

QUANTITY

Lightweight without compromise

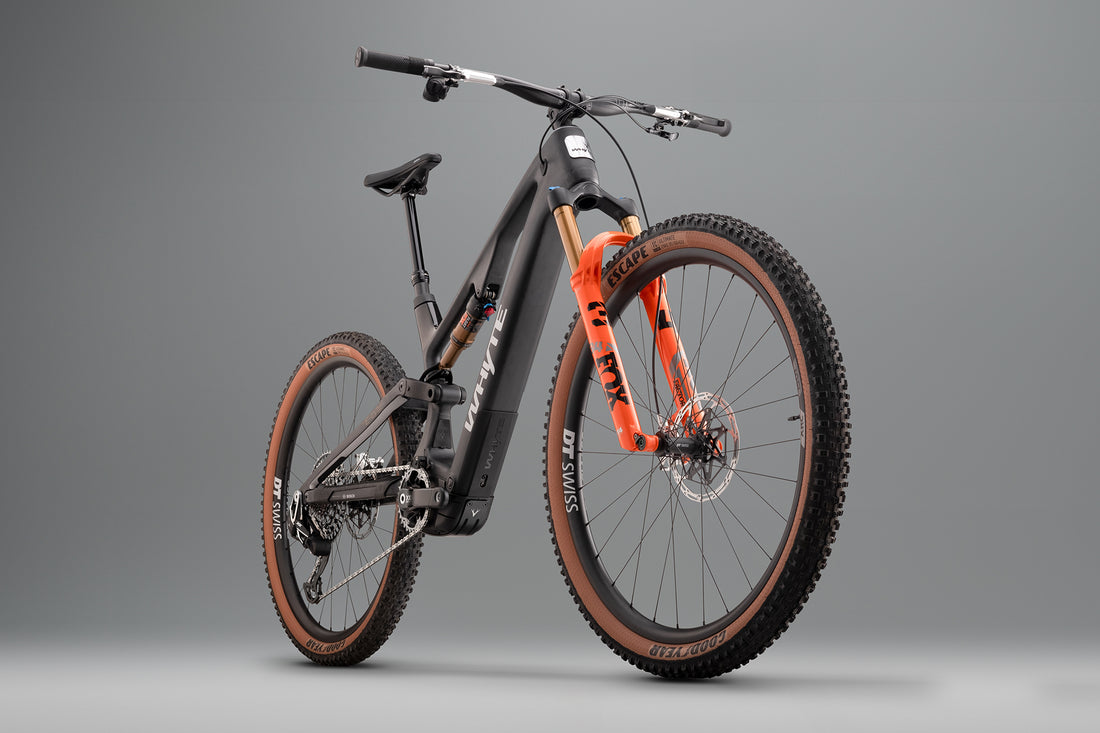

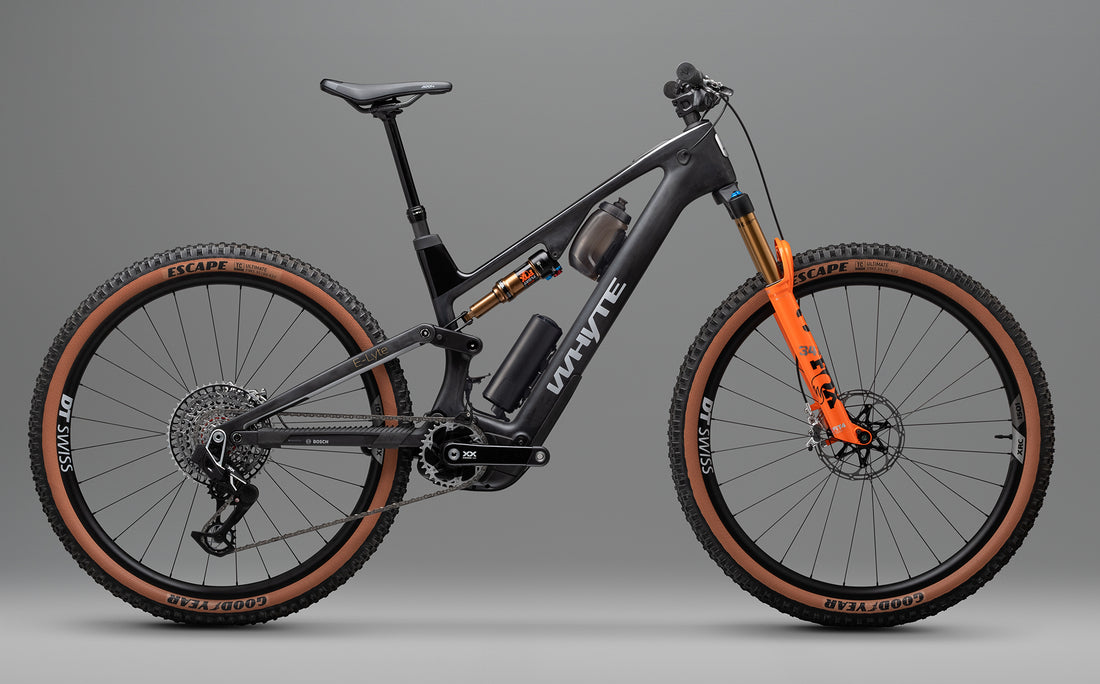

The ELyte 140 Works is our lightest ever electric mountain bike (eMTB): at 16.4kg complete (size M) with 55Nm of torque, together with 600W of peak power, it perfectly blends lightweight cross country (XC)/trail bike performance with the capability of full-fat eMTBs to deliver an unparalleled and uncompromised ride, wherever the trail leads you: the singletrack, the all-day epic, the home trail hot laps, the descents and the climbs back out – and with a total combined battery capacity of 650Wh, it has the range to do it all.

Highlights
– 140mm front + 135mm rear of efficient custom-tuned suspension travel.
– Uni-directional carbon fibre frame is light and reassuringly strong.
– Bosch Performance Line SX mid-torque (55Nm), full power (600W) motor.
– 650Wh of combined battery (400Wh internal + 250Wh PowerMore range extender) so you can ride further.
– 29er wheels front and rear for balanced handling.
– 250Wh PowerMore range extender included.

Made for riding – not headlines

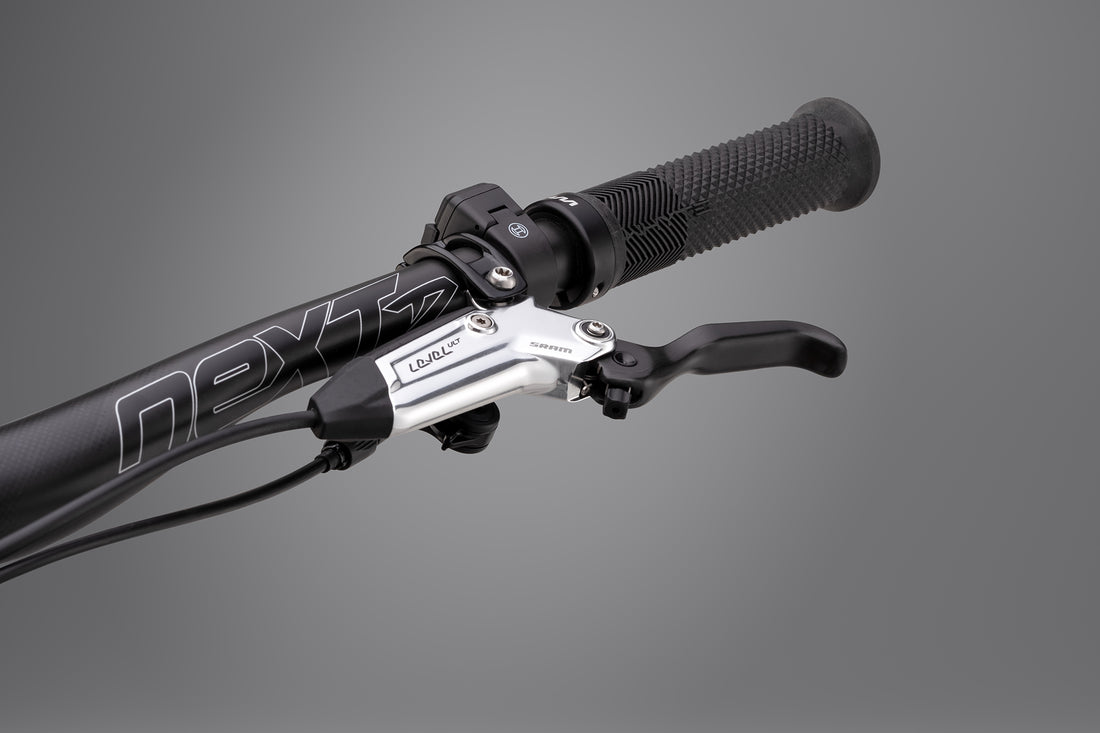

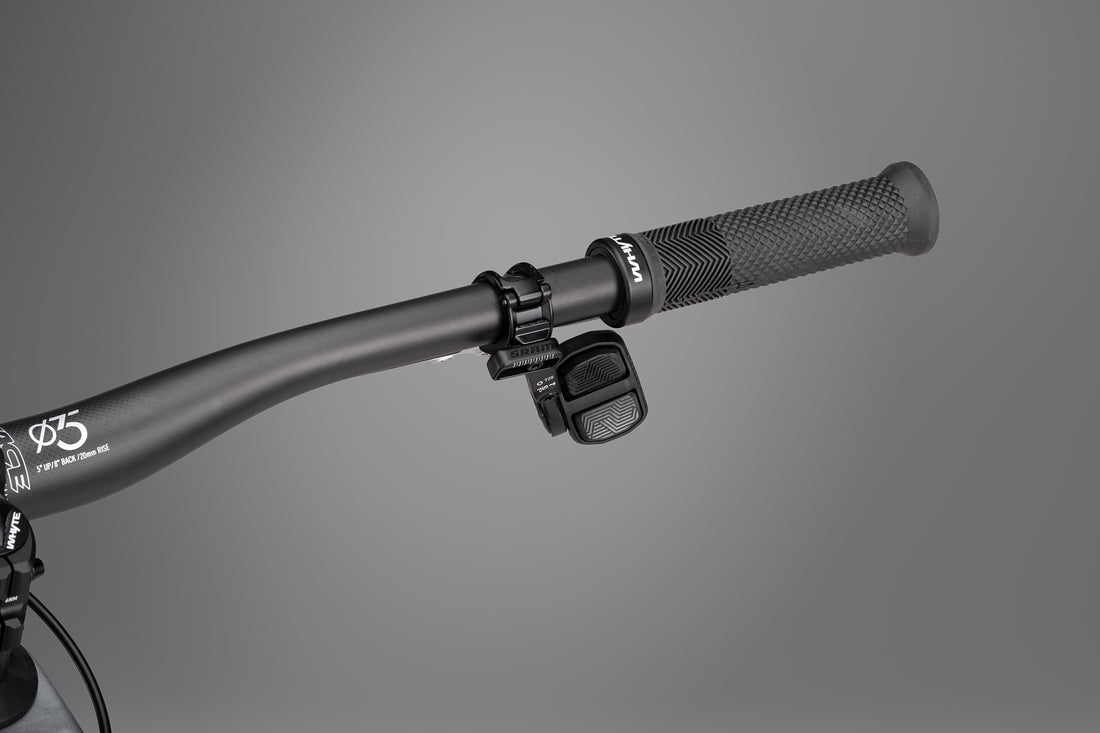

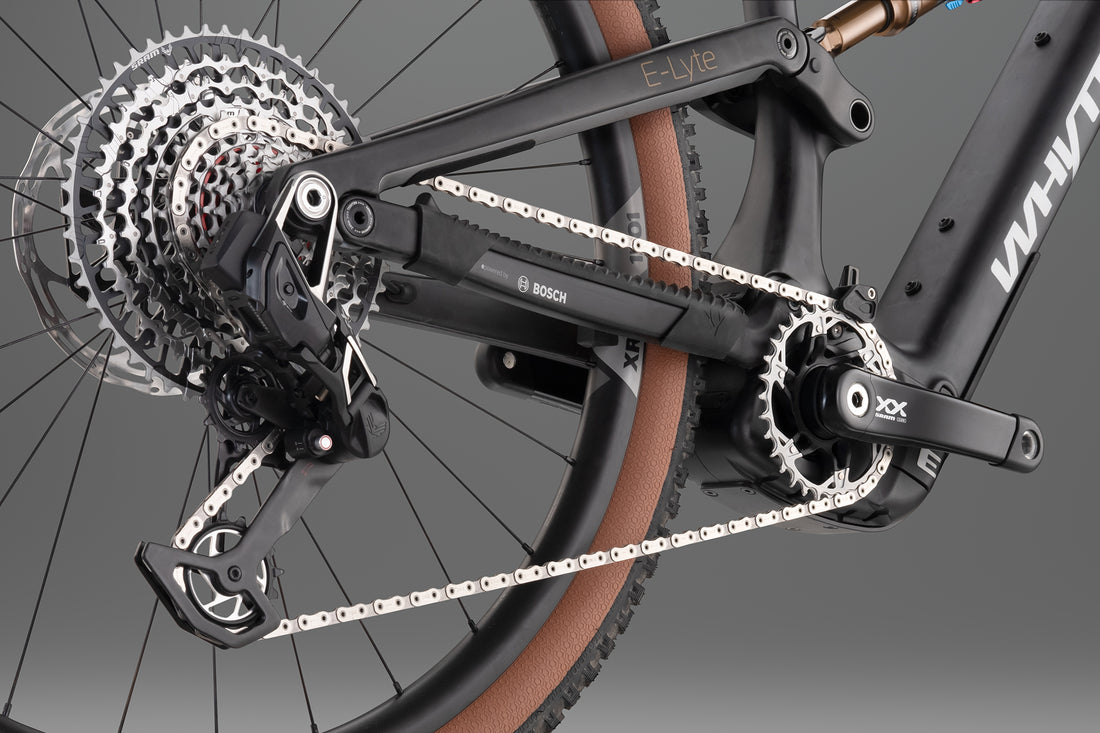

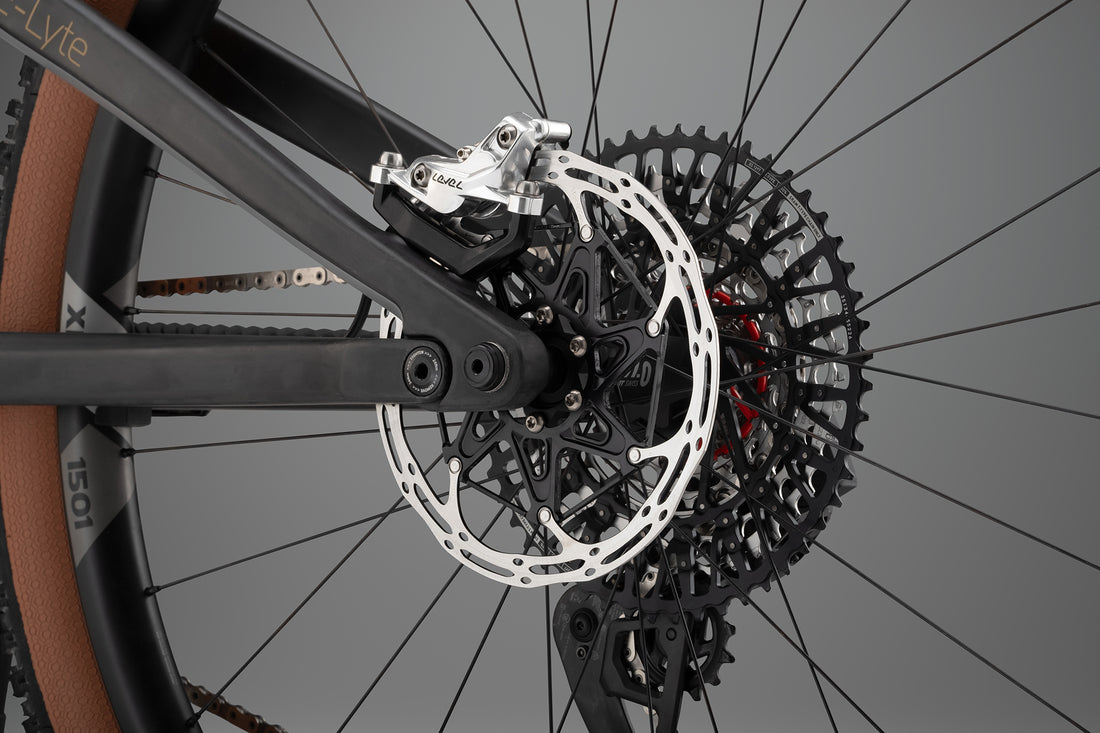

We've not taken any shortcuts when it comes to assembling the finest trail-proven parts possible for the ELyte 140 Works. Nothing that has been put on that compromises performance just to save a few grammes to grab a headline: SRAM's top-shelf XX SL T-Type AXS 1x12 delivers flawless wireless electronic gearing; Fox Float Factory suspension units deliver the ultimate in suspension performance; SRAM Level Ultimate Stealth four-pot hydraulic disc brakes with 180mm rotors for rich, useable power; full-width 800mm wide RaceFace NEXT R bars for maximum control; a full 175mm drop KS Lev Ci post for real-world trail drop; and more.

ELyte 140 Works: lightweight, mid-torque, full power. Zero compromises.

Beautifully light, reassuringly strong

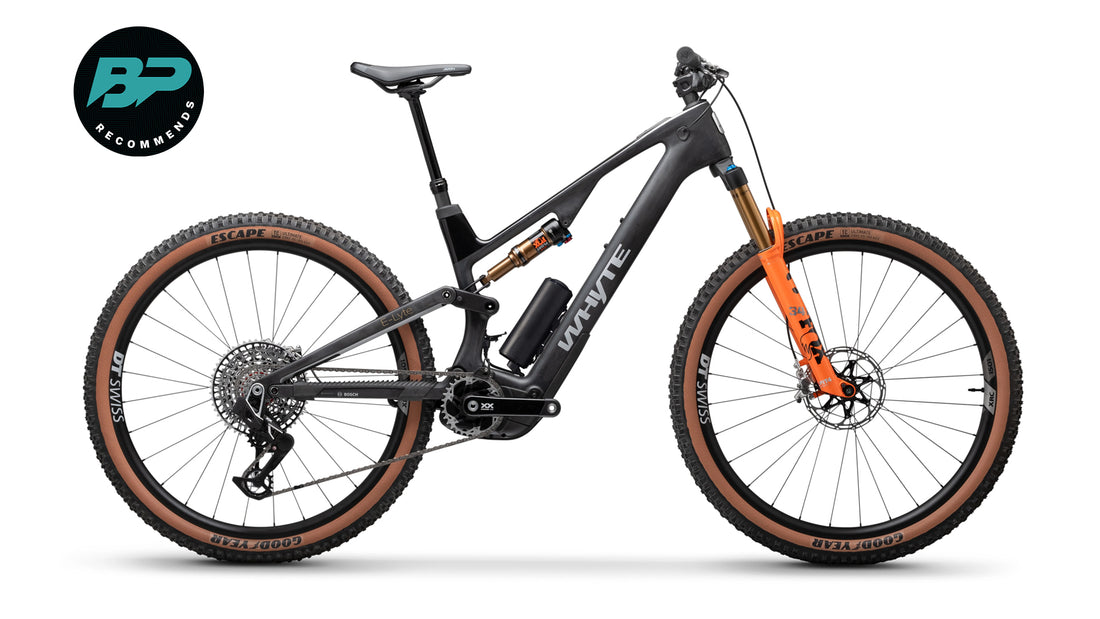

The beating heart of the ELyte 140 Works is an all-new, lightweight yet strong carbon fibre chassis that carefully packages Bosch's light and powerful Performance Line SX mid-torque (55Nm), full power (600W) motor – and the 400Wh internal battery – seamlessly so you can fly under the radar as stealthily as you'll fly down the trails. We've also carefully positioned the Bosch PowerMore range extender as low in the frame as possible to optimise the bike's centre of gravity and deliver an exceptional handling bike, however you want to ride – with the range extender for longer rides out in the hills, or without for lapping your local trails.

Your bike, your way

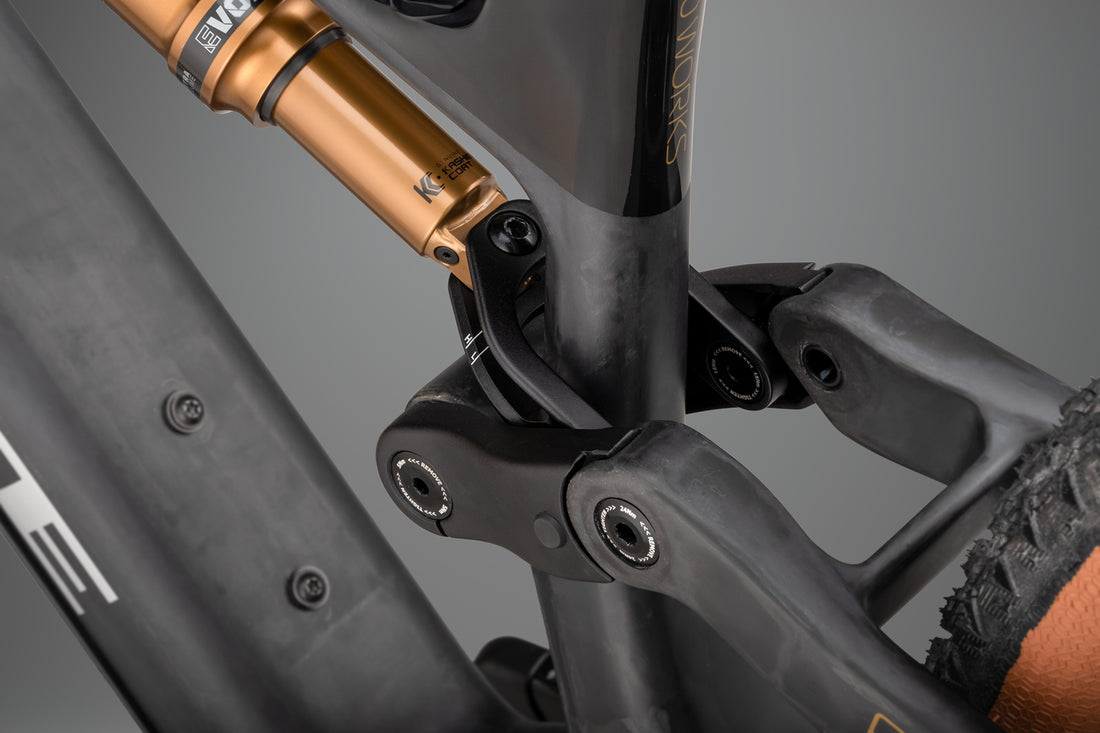

We’ve engineered the ELyte 140 Works to give you the option to set it up and ride it as you want. Want more battery? The ELyte 140 Works comes with Bosch’s 250Wh PowerMore range extender – that mounts in the lower bottle boss position. Want to run a bottle, or even two? The frame has two bottle positions: a lower for a full 750ml bottle (using the included bottle cage adaptor), and a higher Fidlock position for a smaller 450ml bottle (on sizes M-XL) – even with the PowerMore in place. Or you can use the Fidlock mounts for tool or tube mounting (all sizes). Want to slacken the geometry out? The ‘Shape.it Link V2’ geometry adjustment lets you change between the stock high to its low setting for a lower, slacker geometry for more downhill grins. Want to pedal further? Keep it in its higher, more all-day ride-friendly position.

Engineered for the best – and worst – conditions

We’ve designed, tested and proven every ELyte in our native UK, riding all year round through the best and the worst weathers, and have added a whole host of touches that will keep you riding sweeter and for longer. Things such as: a fully weather-sealed seat-clamp gaiter, and sealed cable and hose ports to keep the water out; positioning the charge port at the base and to the front of the seat tube out of the firing line of the rear wheel spray; clearance for up to 2.5in tyres between the seat and chainstays to prevent mud and gunk slowing you down; Phosphate-coated and marine grease packed pivot bearings to maximise pivot bearing service life; as well as frame protection on the lower downtube and chainstay to keep the frame in great shape, and much more.

Snow
Forest

Specifications

COLOUR Matt uni-directional (UD) carbon with gloss black CASSETTE SRAM XS 1297, T-Type, 10-52T, 12 speed
FRAME Uni-directional carbon mainframe and seatstays, tapered head tube, ISCG 2 guide mounts, internal cable routing, Shape.it Link V2 and 12mm x 148mm Boost dropouts CHAIN SRAM XX T-Type, 12 speed
FORK Fox Float 34 Factory 29in, 140mm travel, 44mm offset, FIT4 damper, tapered steerer, 110mm x 15mm Boost Kabolt axle CRANKSET SRAM XX Isis Carbon, 165mm arms, XX Gen4 Direct Mount 32T chainring, T-Type Light eMTB

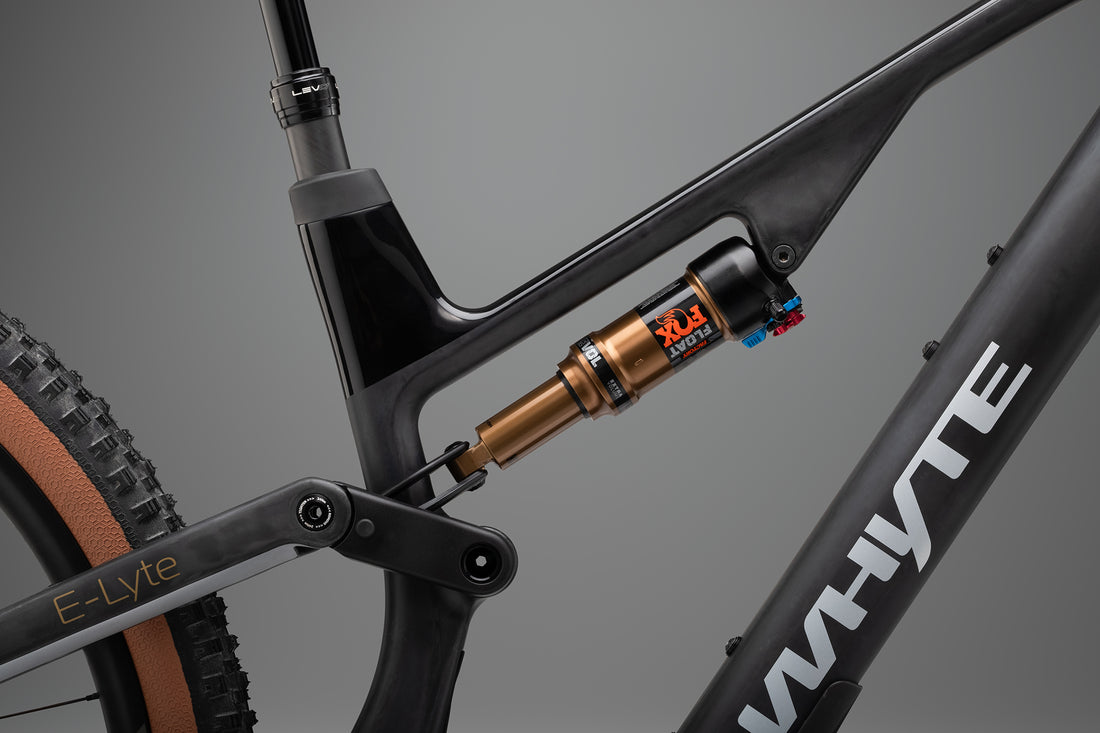

REAR SHOCK Fox Float Factory, Evol LV, adjustable rebound and two position compression adjustment BOTTOM BRACKET N/A
HEADSET FSA No. 69/56/SRS, 1-1/8in upper and 1.5in lower with sealed angular contact bearing (ACB) catridge bearings, with side entry internal routing SEATPOST KS Lev Ci, 30.9mm, 175mm drop, with Southpaw remote lever
REAR HUB DT Swiss 240, e-bike specific, double sealed cartridge bearings, straight pull, 12mm x 148mm Boost spacing, six bolt, XD driver SADDLE Terra Aidon X1, 145mm, fibre reinforced nylon with Wingflex, Carbon 7x7mm rail
FRONT HUB DT Swiss 240, straight pull, six bolt, 15mm x 110mm Boost spacing HANDLEBAR Race Face NEXT R Carbon, 20mm rise, 35mm bar bore, 800mm wide
SPOKES DT Swiss Competition spokes straight pull (SP) STEM Whyte Trail full CNC, 40mm extension, 35mm bar bore
RIMS DT Swiss XRC 1501 Spline GRIPS Whyte Enduro lock-on
TYRE Good Year Escape tubeless ready tan wall 29in x 2.4in, 800g front and rear BRAKES FRONT SRAM Level Ultimate Stealth, four piston hydraulic, 180mm diameter disc rotor
SHIFT LEVERS SRAM AXS Pod, right, MMX, 12 speed BRAKES REAR SRAM Level Ultimate Stealth, four piston hydraulic, 180mm diameter disc rotor
FRONT MECH N/A BRAKE LEVERS SRAM Level Ultimate Stealth
REAR MECH SRAM XX SL T-Type AXS, 12 speed PEDALS Fibre reinforced composite platform
WEIGHT 16.4kg (size M – weight does not include additional PowerMore range extender)

Although we've taken every effort to ensure the accuracy of the information listed here sometimes things change so we reserve the right to change or update bike specifications, features, prices and colours as and when required.

Geometry

GEOMETRY
FRAME SIZE Small Medium Large Extra Large
A - REACH (mm) 435 460 485 510
B - STACK (mm) 622.7 634.5 646.3 657.2
C - HEAD ANGLE (° degrees) 65.6 (65) 65.6 (65) 65.6 (65) 65.6 (65)
D - SEAT ANGLE (° degrees) 77.9 77.7 77.5 77.3
E - BB HEIGHT (mm) 347.8 (339) 347.8 (339) 347.8 (339) 347.8 (339)
F - WHEELBASE (mm) 1207.8 1238.3 1268.8 1298.9
G - REAR CENTRE (mm) 450.2 450.2 450.2 450.2
H - STANDOVER HEIGHT (mm) 739 739 739 739
I - SEAT TUBE LENGTH (mm) 395 420 445 470
J - HEAD TUBE LENGTH (mm) 114 127 140 152
