Dean gravel bike
On-Road Or Off-Road, Go Anywhere
Whether mixing up the roads with the rough, heading out for an epic bike packing adventure ride, or getting to work and back swiftly and efficiently, the Dean’s Shimano’s GRX groupset – with wide-range 2x10 gearing – is ready to maximise both your speed and the terrain you can conquer on- and off-road.
Highlights
— 6061 T6 hydroformed, multi-butted alloy frame
— Lightweight straight bladed 6061 alloy fork
— Shimano GRX 2x10 mechanical transmission + hydraulic disc brakes
— 2x10 transmission (40-46T chainring x 11-36T cassette)
— 700x40mm Schwalbe G-ONE BITE TL-Easy tubeless ready tyres
— Full bottle, mudguard and bikepacking mounting points
Why Dean?
Lightweight, responsive, with more gears and frame sizes than our SRAM-geared single chainring gravel bikes, our latest Dean is a great choice for riders looking for an outstanding blend of value, versatility, and performance. The Dean won’t just survive but thrive wherever your ride takes you.
Features & Equipment
With its proven trail-taming handling it’s got the edge when the road stops, too. The same ride anywhere mountain bike (MTB) inspired handling as the rest of our gravel range – together with wide rims and tyres – are a license to leave those roads far behind and head over the hills, into the forests and down unknown trails. And when you do, the reinforced Schwalbe tyres, 2x10 Shimano GRX gears and brakes – together with full bottle, rack and bikepacking mounts – mean the Dean is a fast, efficient and super tough all-rounder. Sealed cable ports and masses of mud clearance, together with being fully mud-guard ready – just add our own Whyte mudguards all combine to ensure that bad weather will never hold you back.
Specifications
SPECIFICATION | |||
---|---|---|---|
COLOUR | Matt Moss Olive/Burnt Orange | CASSETTE | SunRace CSMS1, 11-36, 10 Speed |
FRAME | 6061 Alloy, Hydro Formed T6 Aluminium, Multi Butted, Tapered Head Tube, Custom Drawn, Chainstay Flat Mount 160mm Disc Mount, BBX Cable Routing | CHAIN | SunRace CN10, Black, 10 Speed |
FORK | Whyte Straight Bladed 6061 Alloy, Tapered Alloy Steerer, Internal Cable Routing, Flat Mount Dropouts, 12mm x 100mm Stealth Thru Axle, Eyelets for Mudguards | CRANKSET | Whyte, Forged Cranks, 2pcs, Super Compact Double 30-46t, 10 Speed, 170mm |
REAR SHOCK | N/A | BOTTOM BRACKET | BSA, Cartridge Bearings, 68mm |
HEADSET | FEMIMIN H889B, Integrated Road, 1 1/2" Lower and 1 1/8" Upper Sealed Cartridge Bearings | SEATPOST | Whyte 6061 Alloy, 20mm Offset, 27.2mm x 350mm, 2 Bolt Clamp |
REAR HUB | Alloy, Double Sealed Cartridge Bearings, 12mm x 142mm Thru Axle, Centre-Lock, 32 Hole | SADDLE | Whyte Custom |
FRONT HUB | Alloy, Double Sealed Cartridge Bearings, 12mm x 100mm Thru Axle, Centre-Lock, 32 Hole | HANDLEBAR | Controltech, 6061 Alloy, Gravel/Road compact drop, 10mm riser bar, 31.8mm x 420mm 48cm, 440mm 50cm, 460mm 52&54cm, 480mm 56&58cm |
SPOKES | 2.0mm, PG, Black Stainless, Brass Nipples | STEM | Whyte Alloy, +-7° Rise, 48/50cm 60mm, 52cm 70mm, 54cm 80mm, 56/58cm 90mm |
RIMS | Whyte RG-7, Tubeless Ready, 32 Hole | GRIPS | Whyte Anti Slip, Cross Bar Tape |
TYRE | Schwalbe G-ONE BITE, 700 x 40c, TL-Easy with RaceGuard Puncture Protection | BRAKES FRONT | Shimano GRX BR-RX400, 160mm Flat Mount, Internal Routing |
SHIFT LEVERS | Shimano GRX ST-RX400, 10 Speed | BRAKES REAR | Shimano GRX BR-RX400, 160mm Flat Mount, Internal Routing |
FRONT MECH | Shimano GRX RD-RX400, 10 Speed | BRAKE LEVERS | Shimano GRX ST-RX600, Hydraulic |
REAR MECH | Shimano GRX RD-RX400, Shadow Plus, 10 Speed | PEDALS | Fibre Reinforced Composite Platform |
WEIGHT | 11.4 Kg |

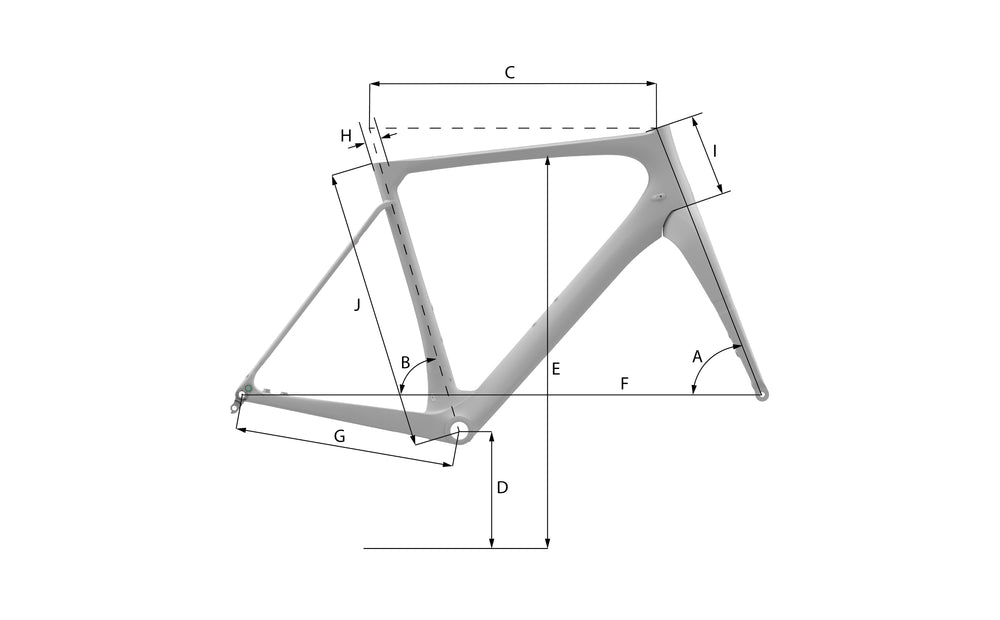

Geometry

GEOMETRY | ||||||
---|---|---|---|---|---|---|
SIZE | 48 | 50 | 52 | 54 | 56 | 58 |
A HEAD TUBE ANGLE | 70 | 70 | 70 | 70 | 70 | 70 |
B SEAT TUBE ANGLE | 74 | 74 | 74 | 74 | 74 | 74 |
C TOP TUBE HORIZONTAL | 548 | 557 | 566 | 595 | 604 | 623 |
D BB HEIGHT ABOVE GROUND | 270 | 270 | 270 | 270 | 270 | 270 |
E STAND OVER HEIGHT | 756 | 773 | 790 | 807 | 824 | 841 |
F WHEEL BASE | 1030 | 1040 | 1050 | 1080 | 1090 | 1110 |
G CHAIN STAY LENGTH | 435 | 435 | 435 | 435 | 435 | 435 |
H SEAT POST DIAMETER | 27.2 | 27.2 | 27.2 | 27.2 | 27.2 | 27.2 |
I HEAD TUBE LENGTH | 115 | 130 | 145 | 160 | 175 | 190 |
J SEAT TUBE LENGTH | 480 | 500 | 520 | 540 | 560 | 580 |
STACK | 551 | 563 | 577 | 591 | 605 | 620 |
REACH | 391 | 396 | 400 | 425 | 430 | 445 |
