The E-160 RSX is a versatile and involving mid-travel full suspension electric mountain bike for trail riding, epic rides out in the hills, pushing your envelope racing e-enduro between the tapes, or having a blast on techy trails and singletrack. However you ride, with the confidence-inspiring E-160 RSX you can turn up the fun on every trail.
Our lowered centre of gravity concept optimises the distribution of the E-160 RSX's battery and motor mass within the chassis so you can experience exceptional cornering agility and a planted feel on any trail while 29” wheels deliver you even more grip, stability and confidence over rough terrain. Combine this all with our ‘Total Geometry’ system with its generous reach, reassuring head angle and short offset fork gives you the most confidence-inspiring and agile e-bike we have ever made.
Wherever you ride, the latest Bosch 750Wh PowerTube battery and Performance Line CX motor – combined with efficient and fast-rolling 29” wheels – have your back with more range, performance, and outstanding reliability than ever before so you can go even further.
With the Bosch Smart System – which links up the E-160 RSX’s bar-mounted LED Remote, battery and motor via the companion 'eBike Flow' app – you can have even more information at your fingertips to manage, tailor and personalise your bike just how you want: tune the motor support levels; keep track of your bike’s performance and battery consumption; plan and navigate routes; keep your software up to date. And much, much more.
We’ve engineered the E-160 RSX not just to perform today but for every day you want to ride it – for years to come. Everything from making the day-to-day tasks simple and easy – like hassle-free battery installation/removal, keeping room for a water bottle in the main frame, and in-the-bike-charging – to standing behind you for the long haul with the best rider support out there, four-year frame warranty and our lifetime warranty on bearings for total peace of mind. Because when a bike is this good you’ll want to ride it as much as possible.
Please note: our custom motor covers are not currently compatible with the aftermarket Bosch eBike Alarm and Connect module to add bike tracking and alarm functionality to your Smart System bike.
High Power - Low Centre of Gravity

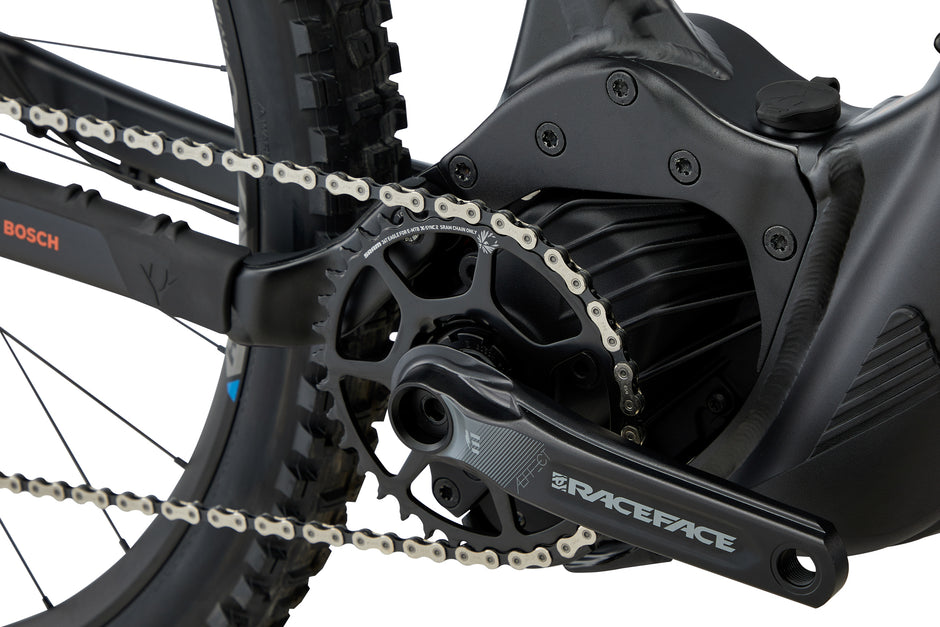

The new 85Nm Performance Line CX drive unit and Bosch’s largest capacity 750Wh battery are positioned to give an ultra-low centre of gravity, delivering responsive and intuitive power with the most agile handling imaginable.
Tuned by the Fastest Racers
Our Senior Design Engineer Sam Shucksmith, the current and two-time British Enduro Series Champion is dedicated to researching and developing the ultimate suspension tune. He has set up the best, most optimised suspension performance for the e-160 to give you the best grip, confidence and control.
|COLOUR||Matt Black with Burnt Orange & Gold||CASSETTE||SRAM XG-1275 Eagle, 10-50, 12 Speed|
|FRAME||6061 Alloy, Hydro Formed T6 Aluminium, Multi Butted, Custom Drawn, Tapered Headtube, Internal Cable Routing, Shape.it Link and 12mm X 148mm Boost Dropouts||CHAIN||SRAM GX Eagle, 12 Speed|
|FORK||Fox Float 38, Performance Elite 29", 160mm Travel, 44mm Offset with Grip 2 Damper, Tapered Steerer, 110mm x 15mm Boost, E-Thru Axle||CRANKSET||Race Face A-Effect, 165mm, ISIS with X-SYNC 2, Direct Mount 36T for Bosch Performance Line CX, Black|
|REAR SHOCK||Fox Float X Performance Elite DPS, Evol LV, Custom Tuned for Whyte||BOTTOM BRACKET||N/A|
|HEADSET||FSA No. 55/35 Orbit 1.5 ZS, 1.8" Lower and 1 1/8" Upper Sealed Cartridge Bearings||SEATPOST||Crank Bro High-Line 3, 30.9mm, M/L 150mm, XL 170mm Travel. High-Line Ball Socket Remote Lever|
|REAR HUB||DT 350, 24t hardened steel Ratchet, 6 bolt||SADDLE||Fizik Terra Aidon, 145mm wide, Wingflex, S-Alloy Mobius rail|
|FRONT HUB||DT 350 Boost 6 bolt||HANDLEBAR||Whyte Custom 6061 Alloy, 30mm Rise, 35mm Bar Bore, 800mm Wide|
|SPOKES||DT Hybrid Straight Pull||STEM||Whyte Enduro Stem, 35mm Bar Bore, 35mm Extension|
|RIMS||DT HX 1700 Alloy, hooked 30mm internal width||GRIPS||Whyte Lock-On Enduro Grip|
|TYRE||Maxxis Assegai WT, TR, 29" x 2.5" 120TPI, EXO+ Casing, 3C Maxx Grip, Dual Compound, Front, Maxxis Minion DHR II WT, TR, 29" x 2.4" 120TPI, Double Down, 3C Maxx Terra, Dual Compound, Folding Bead, Rear||BRAKES FRONT||SRAM Code RSC, 4 Piston with Sintered Metal Pads, 220mm Disc|
|SHIFT LEVERS||SRAM GX AXS Eagle, 2 Button MMX||BRAKES REAR||SRAM Code RSC, 4 Piston with Sintered Metal Pads, 200mm Disc|
|FRONT MECH||N/A||BRAKE LEVERS||SRAM Code RSC, MMX|
|REAR MECH||SRAM GX1 AXS Lunar with Battery Protector||PEDALS||None|
|A HEAD TUBE ANGLE||64.5||64.5||64.5|
|B SEAT TUBE ANGLE||75.5||75.3||75.1|
|C TOP TUBE HORIZONTAL||607.3||640.4||672.5|
|D BB HEIGHT ABOVE GROUND||340||340||340|
|E STAND OVER HEIGHT||771||773||776|
|F WHEEL BASE||1234.8||1269.2||1302.7|
|G CHAIN STAY LENGTH||446||446||446|
|H SEAT POST DIAMETER||30.9||30.9||30.9|
|I HEAD TUBE LENGTH||105||120||135|
|J SEAT TUBE LENGTH||420||445||470|
