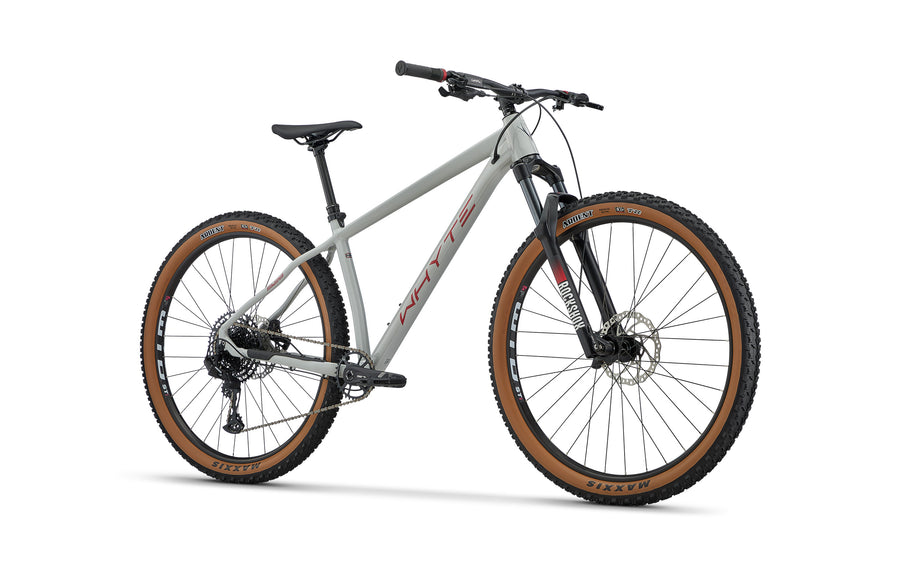

529 Trail Hardtail Bike
529 Trail Hardtail Bike
529 Trail Hardtail Bike
529 Trail Hardtail Bike
529 Trail Hardtail Bike
529 Trail Hardtail Bike

529 Trail Hardtail Bike

£1,650.00 Sale Save
Size
Size guide

QUANTITY

Description coming soon.

Specifications

COLOUR Gloss Cement with Rose & Slate CASSETTE SRAM PG-1210 Eagle, 11-50, 12 Speed
FRAME 6061 Alloy, Hydro Formed T6 Aluminium, Multi Butted, SCR, Tapered Headtube, Internal Cable Routing with BBX63, Chainstay Post Mount Dropouts and 12mm X 148mm Boost Dropouts CHAIN SRAM SX Eagle, 12 Speed
FORK RockShox Recon RL 29"", 120mm Travel, 42mm Offset, Solo Air, Fast Black Coating, Adjustable Rebound, Tapered Alloy Steerer, 110mm x 15mm Boost, Maxle Lite CRANKSET SRAM X1 Eagle, X-SYNC 2, Direct Mount 32T, DUB, 170mm, Boost 12 Speed
REAR SHOCK N/A BOTTOM BRACKET SRAM DUB, BSA, 73mm
HEADSET FSA No. 57B Orbit ZS, 1 1/2"" Lower and 1 1/8"" Upper Caged Bearings SEATPOST KS, 30.9mm, S 125mm Travel, M/L/XL 150mm Travel, Paddle Remote Lever
REAR HUB Alloy, Double Sealed Cartridge Bearings, 12mm x 148mm Boost Thru Axle, 32 Hole SADDLE Whyte Custom
FRONT HUB Alloy, Double Sealed Cartridge Bearings, 15mm x 110mm Boost Thru Axle, 32 Hole HANDLEBAR Whyte 6061 Alloy, 15mm Rise, 31.8mm, 780mm Wide
SPOKES DT Swiss Champion 2.0mm, Black Stainless, Brass Nipples STEM Whyte Alloy, 45mm Extension
RIMS WTB ST i27 TCS 2.0 System, Pinned Joint, Tubeless Ready, 32 Hole GRIPS Whyte Lock-on Enduro Grip
TYRE Maxxis Ardent 29""x 2.4"" EXO Dual Compound, 60TPI, Tanwall BRAKES FRONT Tektro HD-M535, 4 Piston, 2.3mm gauge 180mm Disc
SHIFT LEVERS SRAM SX Eagle BRAKES REAR Tektro HD-M535, 4 Piston, 2.3mm gauge 180mm Disc, Internal Routing
FRONT MECH N/A BRAKE LEVERS Tektro M-535
REAR MECH SRAM SX Eagle, 12 Speed PEDALS Fibre Reinforced Composite Platform
WEIGHT TBC

Geometry

GEOMETRY
SIZE Small Medium Large Extra Large
A
HEAD TUBE ANGLE
65 65 65 65
B
SEAT TUBE ANGLE
74.5 74.5 74.5 74.5
C
TOP TUBE HORIZONTAL
610 639 663 690
D
BB HEIGHT ABOVE GROUND
300 300 300 300
E
STAND OVER HEIGHT
791 805 819 838
F
WHEEL BASE
1185 1215 1240 1270
G
CHAIN STAY LENGTH
450 450 450 450
H
SEAT POST DIAMETER
30.9 30.9 30.9 30.9
I
HEAD TUBE LENGTH
110 115 120 135
J
SEAT TUBE LENGTH
406 431 457 483
STACK 635 640 644 658
REACH
